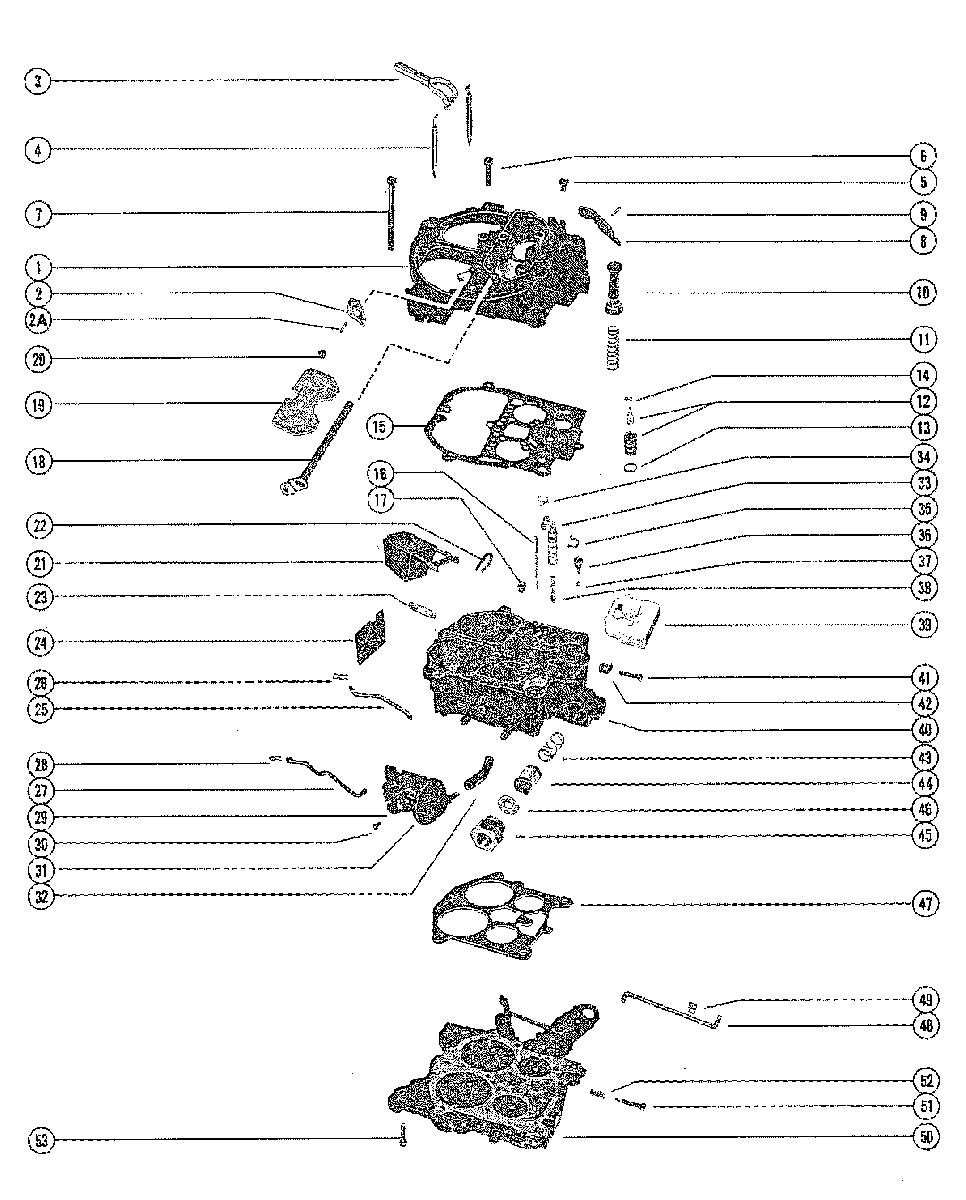

CARBURETOR ASSEMBLY, COMPLETE для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913

  • №
    Артикул
    Название
  • -
    1347-804626R02 CARBURETOR ASSEMBLY, COMPLETE (STERN DRIVE)
    SERIAL 05027231-09999999
    CARBURETOR ASSEMBLY, COMPLETE (STERN DRIVE)
    SERIAL 05027231-09999999
  • -
    1347-804626R02 CARBURETOR ASSEMBLY, COMPLETE (INBOARD)
    SERIAL 05226385-09999999
    CARBURETOR ASSEMBLY, COMPLETE (INBOARD)
    SERIAL 05226385-09999999
  • 1
    N.S.S. AIR HORN ASSEMBLY
    AIR HORN ASSEMBLY
  • 2
    N.S.S. LEVER, AIR VALVE LOCKOUT (ROCHESTER#7037968)
    LEVER, AIR VALVE LOCKOUT (ROCHESTER#7037968)
  • 3
    N.S.S. HOLDER KIT, SECONDARY METERING ROD(ROCHESTER#7034522)
    HOLDER KIT, SECONDARY METERING ROD(ROCHESTER#7034522)
  • 4
    N.S.S. METERING ROD, SECONDARY(STERN DRIVE)-ROCHESTER#17053531
    METERING ROD, SECONDARY(STERN DRIVE)-ROCHESTER#17053531
  • 4
    N.S.S. METERING ROD, SECONDARY(INBOARD)-ROCHESTER#7045782
    METERING ROD, SECONDARY(INBOARD)-ROCHESTER#7045782
  • 5
    N.S.S. SCREW, AIR HORN TO FLOAT BOWL (3/8")-ROCHESTER#7031105
    SCREW, AIR HORN TO FLOAT BOWL (3/8")-ROCHESTER#7031105
  • 6
    N.S.S. SCREW, AIR HORN TO FLOAT BOWL (1")-ROCHESTER#7014699
    SCREW, AIR HORN TO FLOAT BOWL (1")-ROCHESTER#7014699
  • 7
    N.S.S. SCREW, AIR HORN TO FLOAT BOWL (3")-ROCHESTER#7029912
    SCREW, AIR HORN TO FLOAT BOWL (3")-ROCHESTER#7029912
  • 8
    N.S.S. LEVER, ACTUATING - PUMP(ROCHESTER#7048169)
    LEVER, ACTUATING - PUMP(ROCHESTER#7048169)
  • 9
    90-8M0143356 ROLL PIN, HINGE - PUMP LEVER
    ROLL PIN, HINGE - PUMP LEVER
  • 10
    90-8M0143356 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 11
    90-8M0143356 SPRING, PUMP RETURN
    SPRING, PUMP RETURN
  • 12
    90-8M0143356 NEEDLE AND SEAT ASSEMBLY
    NEEDLE AND SEAT ASSEMBLY
  • 13
    90-8M0143356 GASKET, NEEDLE AND SEAT
    GASKET, NEEDLE AND SEAT
  • 14
    90-8M0143356 PULL CLIP, FLOAT NEEDLE
    PULL CLIP, FLOAT NEEDLE
  • 15
    90-8M0143356 GASKET, AIR HORN
    GASKET, AIR HORN
  • 16
    90-8M0143356 METERING ROD, PRIMARY
    METERING ROD, PRIMARY
  • 17
    90-8M0143356 JET, PRIMARY
    JET, PRIMARY
  • 18
    N.S.S. CHOKE SHAFT AND LEVER ASSEMBLY(ROCHESTER#7036059)
    CHOKE SHAFT AND LEVER ASSEMBLY(ROCHESTER#7036059)
  • 19
    N.S.S. VALVE, CHOKE - CHOKE SHAFT(ROCHESTER#7036021)
    VALVE, CHOKE - CHOKE SHAFT(ROCHESTER#7036021)
  • 20
    N.S.S. SCREW, CHOKE VALVE TO CHOKE SHAFT(ROCHESTER#7029866)
    SCREW, CHOKE VALVE TO CHOKE SHAFT(ROCHESTER#7029866)
  • 21
    1397-3327 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 22
    N.S.S. PIN, HINGE - FLOAT(ROCHESTER#7029856)
    PIN, HINGE - FLOAT(ROCHESTER#7029856)
  • 23
    N.S.S. LEVER, INTERMEDIATE CHOKE(ROCHESTER#7031231)
    LEVER, INTERMEDIATE CHOKE(ROCHESTER#7031231)
  • 24
    N.S.S. BAFFLE, FLOAT BOWL(ROCHESTER#7031365)
    BAFFLE, FLOAT BOWL(ROCHESTER#7031365)
  • 25
    N.S.S. ROD, CHOKE(ROCHESTER#7031394)
    ROD, CHOKE(ROCHESTER#7031394)
  • 26
    90-8M0143356 CLIP, CHOKE ROD
    CLIP, CHOKE ROD
  • 27
    N.S.S. ROD, VACUUM CONTROL(ROCHESTER#7038167)
    ROD, VACUUM CONTROL(ROCHESTER#7038167)
  • 28
    90-8M0143356 CLIP, CHOKE ROD
    CLIP, CHOKE ROD
  • 29
    N.S.S. BRACKET ASSEMBLY, VACUUM CONTROL(ROCHESTER#17060265)
    BRACKET ASSEMBLY, VACUUM CONTROL(ROCHESTER#17060265)
  • 30
    N.S.S. SCREW, VACUUM CONTROL BRACKET TO FLOAT BOWL (ROCHESTER #70319)
    SCREW, VACUUM CONTROL BRACKET TO FLOAT BOWL (ROCHESTER #70319)
  • 31
    N.S.S. CONTROL ASSEMBLY, VACUUM(ROCHESTER#7038237)
    CONTROL ASSEMBLY, VACUUM(ROCHESTER#7038237)
  • 32
    N.S.S. HOSE, VACUUM(ROCHESTER#7026339)
    HOSE, VACUUM(ROCHESTER#7026339)
  • 33
    N.S.S. POWER PISTON ASSEMBLY(ROCHESTER#7034637)
    POWER PISTON ASSEMBLY(ROCHESTER#7034637)
  • 34
    N.S.S. SPRING, METERING ROD - PRIMARY(ROCHESTER#7029862)
    SPRING, METERING ROD - PRIMARY(ROCHESTER#7029862)
  • 35
    N.S.S. RETAINER, POWER PISTON
    RETAINER, POWER PISTON
  • 36
    N.S.S. RETAINER, PUMP DISCHARGE BALL(ROCHESTER#7029849)
    RETAINER, PUMP DISCHARGE BALL(ROCHESTER#7029849)
  • 37
    90-8M0143356 BALL, PUMP DISCHARGE
    BALL, PUMP DISCHARGE
  • 38
    N.S.S. SPRING, POWER PISTON(ROCHESTER#7029529)
    SPRING, POWER PISTON(ROCHESTER#7029529)
  • 39
    N.S.S. >INSERT, FLOAT BOWL(ROCHESTER#7034361)
    >INSERT, FLOAT BOWL(ROCHESTER#7034361)
  • 40
    N.S.S. FLOAT BOWL ASSEMBLY
    FLOAT BOWL ASSEMBLY
  • 41
    N.S.S. SCREW, IDLE STOP(ROCHESTER#7002121)
    SCREW, IDLE STOP(ROCHESTER#7002121)
  • 42
    N.S.S. SPRING, IDLE STOP SCREW(ROCHESTER#7003176)
    SPRING, IDLE STOP SCREW(ROCHESTER#7003176)
  • 43
    3302-9032 SPRING, FILTER NUT
    SPRING, FILTER NUT
  • 44
    35-53336Q FILTER, FUEL INLET
    FILTER, FUEL INLET
  • 45
    1397-3330 NUT, FILTER - FUEL INLET
    NUT, FILTER - FUEL INLET
  • 46
    90-8M0143356 GASKET, FILTER NUT
    GASKET, FILTER NUT
  • 47
    90-8M0143356 GASKET, THROTTLE BODY
    GASKET, THROTTLE BODY
  • 48
    N.S.S. ROD, PUMP(ROCHESTER#7026138)
    ROD, PUMP(ROCHESTER#7026138)
  • 49
    90-8M0143356 CLIP, PUMP ROD
    CLIP, PUMP ROD
  • 50
    N.S.S. THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 51
    90-8M0143356 IDLE NEEDLE, THROTTLE BODY
    IDLE NEEDLE, THROTTLE BODY
  • 52
    24-33050 SPRING, IDLE NEEDLE
    SERIAL 00000000-05027230
    SPRING, IDLE NEEDLE
    SERIAL 00000000-05027230
  • 52
    24-87734 SPRING, IDLE NEEDLE
    SERIAL 05027231-09999999
    SPRING, IDLE NEEDLE
    SERIAL 05027231-09999999
  • 53
    N.S.S. SCREW, THROTTLE BODY TO FLOAT BOWL(ROCHESTER#7035790)
    SCREW, THROTTLE BODY TO FLOAT BOWL(ROCHESTER#7035790)
  • --
    1397-3315 SPRING AND CAM KIT, AIR VALVE
    SPRING AND CAM KIT, AIR VALVE
  • --
    823426A1 OVERHAUL KIT
    SERIAL 00000000-05027230
    OVERHAUL KIT
    SERIAL 00000000-05027230
  • --
    823426A1 OVERHAUL KIT
    SERIAL 05027231-09999999
    OVERHAUL KIT
    SERIAL 05027231-09999999
  • --
    823426A1 GASKET SET
    GASKET SET
  • --
    823426A1 OFF ENGINE KIT
    OFF ENGINE KIT
