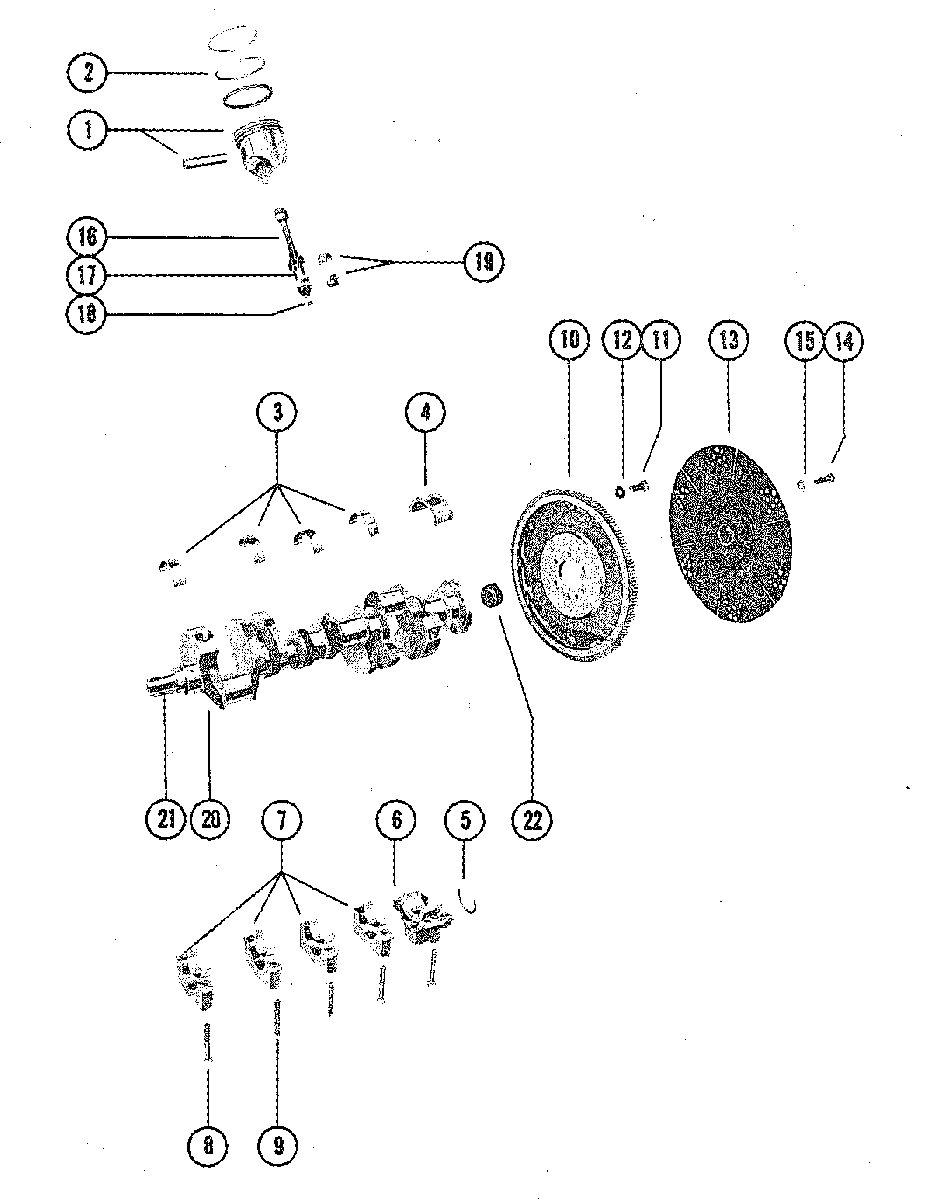

PISTONS AND CRANKSHAFT для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913

  • №
    Артикул
    Название
  • 1
    737-879194035 PISTON AND PISTON PIN ASSEMBLY (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    PISTON AND PISTON PIN ASSEMBLY (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 1
    737-6615T1 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 2
    39-67127 RING, PISTON (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    RING, PISTON (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 2
    39-67128 RING, PISTON (.030 O.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    RING, PISTON (.030 O.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 3
    23-818473001 BEARING UNIT, CRANKSHAFT MAIN (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    BEARING UNIT, CRANKSHAFT MAIN (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 3
    23-818474 BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 3
    23-818475 BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 3
    23-85724 BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 3
    23-818477 BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 4
    23-818473001 BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 4
    23-818474 BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 4
    23-818475 BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 4
    23-818476001 BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 4
    23-818477 BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 5
    26-8M0062773 OIL SEAL, REAR CRANKSHAFT BRG. CAP (L.H. ROTATION)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    OIL SEAL, REAR CRANKSHAFT BRG. CAP (L.H. ROTATION)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 5
    26-75980 OIL SEAL, REAR CRANKSHAFT BRG. CAP (R.H. ROTATION)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
    OIL SEAL, REAR CRANKSHAFT BRG. CAP (R.H. ROTATION)
    NOT INCLUDED WITH CYLINDER BLOCK ASSY
  • 6
    75583 CAP, REAR - CRANKSHAFT BEARING
    CAP, REAR - CRANKSHAFT BEARING
  • 7
    75582 CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
    CAP, INTERMEDIATE AND FRONT - CRANKSHAFT BEARING
  • 8
    10-49147 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (3 3/8")
    BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (3 3/8")
  • 9
    16-49144 STUD, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK
    STUD, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK
  • 10
    200-8M0084209 FLYWHEEL ASSEMBLY (STERN DRIVE)
    FLYWHEEL ASSEMBLY (STERN DRIVE)
  • 10
    230-5534 FLYWHEEL ASSEMBLY (INBOARD)
    FLYWHEEL ASSEMBLY (INBOARD)
  • 11
    10-845757 SCREW, FLYWHEEL TO CRANKSHAFT
    SCREW, FLYWHEEL TO CRANKSHAFT
  • 12
    13-39131 LOCKWAHSER< FLYWHEEL SCREW
    LOCKWAHSER< FLYWHEEL SCREW
  • 13
    77480A1 DRIVE PLATE, FLYWHEEL (STERN DRIVE)
    DRIVE PLATE, FLYWHEEL (STERN DRIVE)
  • 13
    860125T DRIVE PLATE, FLYWHEEL (INBOARD)
    DRIVE PLATE, FLYWHEEL (INBOARD)
  • 14
    10-35091 SCREW, DRIVE PLATE TO FLYWHEEL
    SCREW, DRIVE PLATE TO FLYWHEEL
  • 15
    13-35048 LOCKWASHER, DRIVE PLATE SCREW
    LOCKWASHER, DRIVE PLATE SCREW
  • 16
    614-8M0030663 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 17
    10-52192 BOLT, CONNECTING ROD CAP
    BOLT, CONNECTING ROD CAP
  • 18
    11-37493 NUT, CONNECTING ROD CAP BOLT
    NUT, CONNECTING ROD CAP BOLT
  • 19
    23-85726001 BEARING SET (PAIR), CONNECTING ROD (STANDARD)
    BEARING SET (PAIR), CONNECTING ROD (STANDARD)
  • 19
    23-85727 BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
  • 19
    23-85728 BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
  • 19
    23-85691 BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
  • 19
    23-85729 BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
  • 20
    429-6612 CRANKSHAFT (L.H. ROTATION)
    CRANKSHAFT (L.H. ROTATION)
  • 20
    429-6612 CRANKSHAFT (R.H. ROTATION)
    CRANKSHAFT (R.H. ROTATION)
  • 21
    28-34466 KEY, CRANKSHAFT GEAR, CAMSHAFT GEAR AND DAMPER
    KEY, CRANKSHAFT GEAR, CAMSHAFT GEAR AND DAMPER
  • 22
    23-71647 BUSHING, CRANKSHAFT PILOT (STERN DRIVE)
    BUSHING, CRANKSHAFT PILOT (STERN DRIVE)
