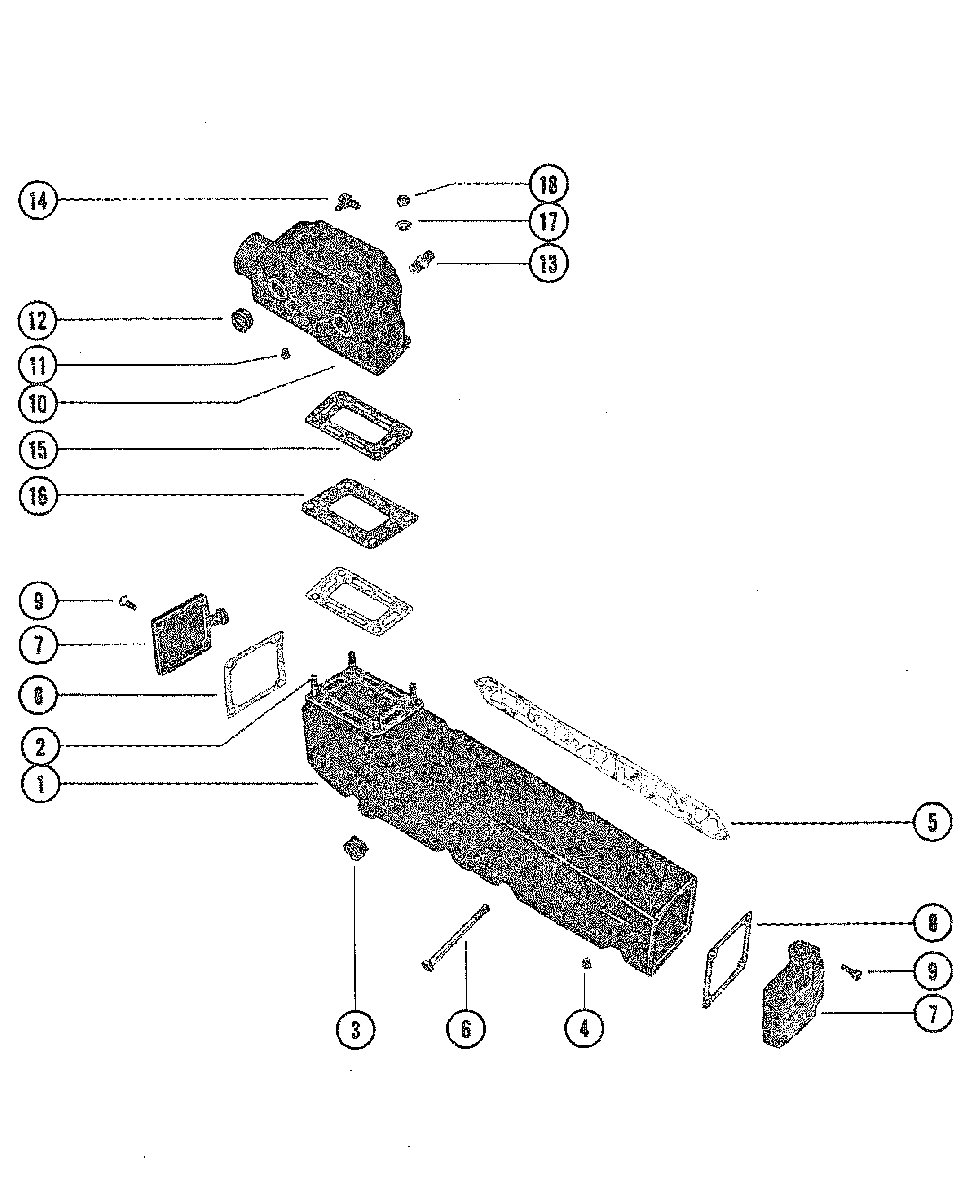

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913

  • №
    Артикул
    Название
  • 1
    47735A17 EXHAUSE MANIFOLD ASSEMBLY (PORT)
    EXHAUSE MANIFOLD ASSEMBLY (PORT)
  • 1
    47736A17 EXHAUST MANIFOLD ASSEMBLY (STBD.)
    EXHAUST MANIFOLD ASSEMBLY (STBD.)
  • 2
    16-49545 STUD, EXHAUST MANIFOLD TO ELBOW (1 3/4")
    STUD, EXHAUST MANIFOLD TO ELBOW (1 3/4")
  • 3
    22-48118 PLUG, EXHAUST MANIFOLD
    PLUG, EXHAUST MANIFOLD
  • 4
    22-328022 PLUG, PIPE - EXHAUST MANIFOLD
    PLUG, PIPE - EXHAUST MANIFOLD
  • 5
    27-46820 GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
  • 6
    10-37612 SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (1 1/4")
    SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (1 1/4")
  • 6
    10-26486 SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (2 3/8")
    SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (2 3/8")
  • 7
    60252A2 END CAP/CONNECTOR, EXHAUST MANIFOLD (FRONT)
    END CAP/CONNECTOR, EXHAUST MANIFOLD (FRONT)
  • 8
    27-480431 GASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLD
    GASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLD
  • 9
    10-35386 SCREW, END CAP TO EXH. MAN. (1")
    SCREW, END CAP TO EXH. MAN. (1")
  • 9
    10-74824 SCREW, END CAP?CONNECTOR (1 1/4")-METAL BRACKET
    SCREW, END CAP?CONNECTOR (1 1/4")-METAL BRACKET
  • 9
    10-73657 SCREW, END CAP/CONNECTOR (1 1/2")-PLASTIC BRACKET
    SCREW, END CAP/CONNECTOR (1 1/2")-PLASTIC BRACKET
  • 10
    76668A3 EXHAUST ELBOW ASSEMBLY (STERN DRIVE)
    EXHAUST ELBOW ASSEMBLY (STERN DRIVE)
  • 10
    72963A9 EXHAUST ELBOW ASSEMBLY INBOARD
    EXHAUST ELBOW ASSEMBLY INBOARD
  • --
    32-58616A2 TUBE ASSEMBLY, WATER SEPARATION INBOARD
    TUBE ASSEMBLY, WATER SEPARATION INBOARD
  • --
    10-47828 SCREW, WATER SEPARATION TUBE INBOARD
    SCREW, WATER SEPARATION TUBE INBOARD
  • 11
    22-328022 PLUG, EXHAUST ELBOW
    PLUG, EXHAUST ELBOW
  • 12
    22-416223 PLUG, EXHAUST ELBOW
    PLUG, EXHAUST ELBOW
  • 13
    22-866725 FITTING, EXHAUST ELBOW
    FITTING, EXHAUST ELBOW
  • 14
    22-629101 ELBOW, HOSE (STARBOARD EXHAUST ELBOW) - STERN DRIVE
    ELBOW, HOSE (STARBOARD EXHAUST ELBOW) - STERN DRIVE
  • 15
    27-48042 GASKET, EXHAUST ELBOW TO EXHAUST MANIFOLD
    GASKET, EXHAUST ELBOW TO EXHAUST MANIFOLD
  • 16
    73782 PLATE, EXHAUST ELBOW TO MANIFOLD (STERN DRIVE)
    PLATE, EXHAUST ELBOW TO MANIFOLD (STERN DRIVE)
  • 16
    74829 PLATE, EXHAUST ELBOW TO MANIFOLD(INBOARD)
    PLATE, EXHAUST ELBOW TO MANIFOLD(INBOARD)
  • 17
    13-35048 LOCKWASHER, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
    LOCKWASHER, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
  • 18
    11-49838 NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
    NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
