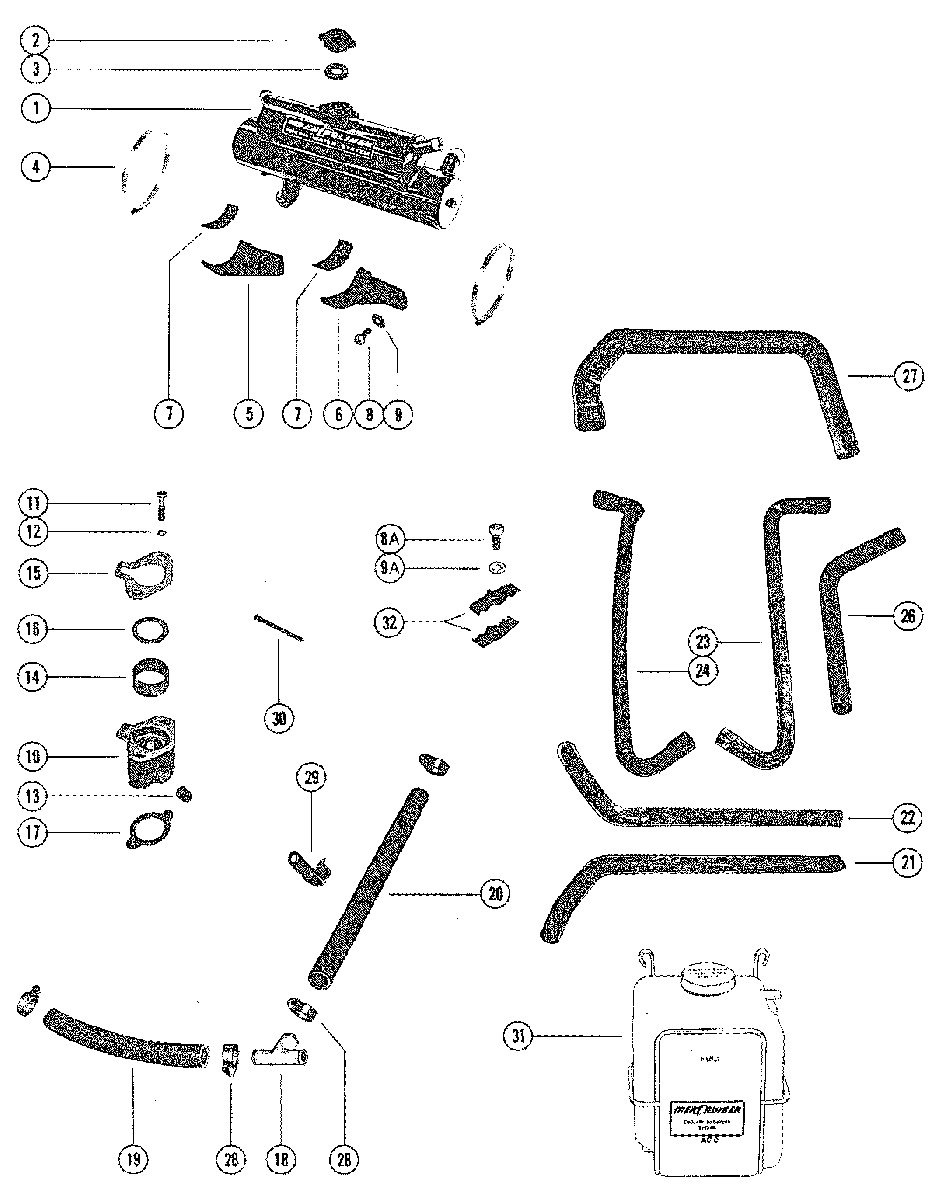

FRESH WATER COOLING KIT (MIE 330) для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913

  • №
    Артикул
    Название
  • 1
    79607A3 FRESH WATER COOLING KIT
    FRESH WATER COOLING KIT
  • 2
    36-55143Q CAP, PRESSURE - HEAT EXCHANGER
    CAP, PRESSURE - HEAT EXCHANGER
  • 3
    27-71614 GASKET, PRESSURE CAP
    GASKET, PRESSURE CAP
  • 4
    54-815504372 CLAMP, HEAT EXCHANGER TO MOUNTING BRACKET
    CLAMP, HEAT EXCHANGER TO MOUNTING BRACKET
  • 5
    79605A1 BRACKET, MOUNTING (PORT)
    BRACKET, MOUNTING (PORT)
  • 6
    79606A1 BRACKET, MOUNTING (STARBOARD)
    BRACKET, MOUNTING (STARBOARD)
  • 7
    772233 PAD, MOUNTING BRACKET
    PAD, MOUNTING BRACKET
  • 8
    10-34353 SCREW, MOUNTING BRACKET TO ENGINE (1")
    SCREW, MOUNTING BRACKET TO ENGINE (1")
  • 8A
    10-47461 SCREW, (1") - SEE NOTE BELOW
    SCREW, (1") - SEE NOTE BELOW
  • 9
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 9A
    13-32993 LOCKWASHER, BRACKET AND RETAINER SCREWS
    LOCKWASHER, BRACKET AND RETAINER SCREWS
  • 10
    55131A5 THERMOSTAT HOUSING
    THERMOSTAT HOUSING
  • 11
    10-48115 SCREW, THERMOSTAT HOUSING ATTACHING (3 1/2")
    SCREW, THERMOSTAT HOUSING ATTACHING (3 1/2")
  • 12
    13-35048 LOCKWASHER, THERMOSTAT HOUSING SCREW
    LOCKWASHER, THERMOSTAT HOUSING SCREW
  • 13
    22-47540 PLUG, PIPE - THERMOSTAT HOUSING
    PLUG, PIPE - THERMOSTAT HOUSING
  • 14
    23-47508T SLEEVE, THERMOSTAT HOUSING
    SLEEVE, THERMOSTAT HOUSING
  • 15
    27-488181 GASKET, THERMOSTAT HOUSING - UPPER
    GASKET, THERMOSTAT HOUSING - UPPER
  • 16
    27-47510 GASKET, THERMOSTAT HOUSING - MIDDLE
    GASKET, THERMOSTAT HOUSING - MIDDLE
  • 17
    27-530451 GASKET, THERMOSTAT HOUSING - LOWER
    GASKET, THERMOSTAT HOUSING - LOWER
  • 18
    22-63067 TEE, FITTING
    TEE, FITTING
  • 19
    32-8M0062614 HOSE, TEE TO EXHAUST ELBOW (21 1/2")
    HOSE, TEE TO EXHAUST ELBOW (21 1/2")
  • 20
    32-78103 HOSE, HEAT EXCHANGER TO TEE - MOLDED
    HOSE, HEAT EXCHANGER TO TEE - MOLDED
  • 21
    32-79674 HOSE, FRONT CAP TO HEAT EXCHANGE (PORT)
    HOSE, FRONT CAP TO HEAT EXCHANGE (PORT)
  • 22
    32-79675 HOSE, FRONT CAP TO HEAT EXCHANGER (STARBOARD)
    HOSE, FRONT CAP TO HEAT EXCHANGER (STARBOARD)
  • 23
    32-79673 HOSE, THERMOSTAT HSG. TO REAR CAP (PORT)
    HOSE, THERMOSTAT HSG. TO REAR CAP (PORT)
  • 24
    32-79672 HOSE, THERMOSTAT HSG. TO REAR CAP (STARBOARD)
    HOSE, THERMOSTAT HSG. TO REAR CAP (STARBOARD)
  • 26
    32-79671 HOSE, OIL COOLER TO HEAT EXCHANGER
    HOSE, OIL COOLER TO HEAT EXCHANGER
  • 27
    32-79670 HOSE, HEAT EXCHANGER TO WATER PUMP
    HOSE, HEAT EXCHANGER TO WATER PUMP
  • 28
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 29
    54-79679 CLIP, HOSE
    CLIP, HOSE
  • 30
    61990 STA-STRAP
    STA-STRAP
  • 31
    71587A10 COOLANT RECOVERY SYSTEM (SEE NOTE #1 BELOW)
    COOLANT RECOVERY SYSTEM (SEE NOTE #1 BELOW)
  • 32
    63192 RETAINER, HIGH TENSION LEADS
    RETAINER, HIGH TENSION LEADS
