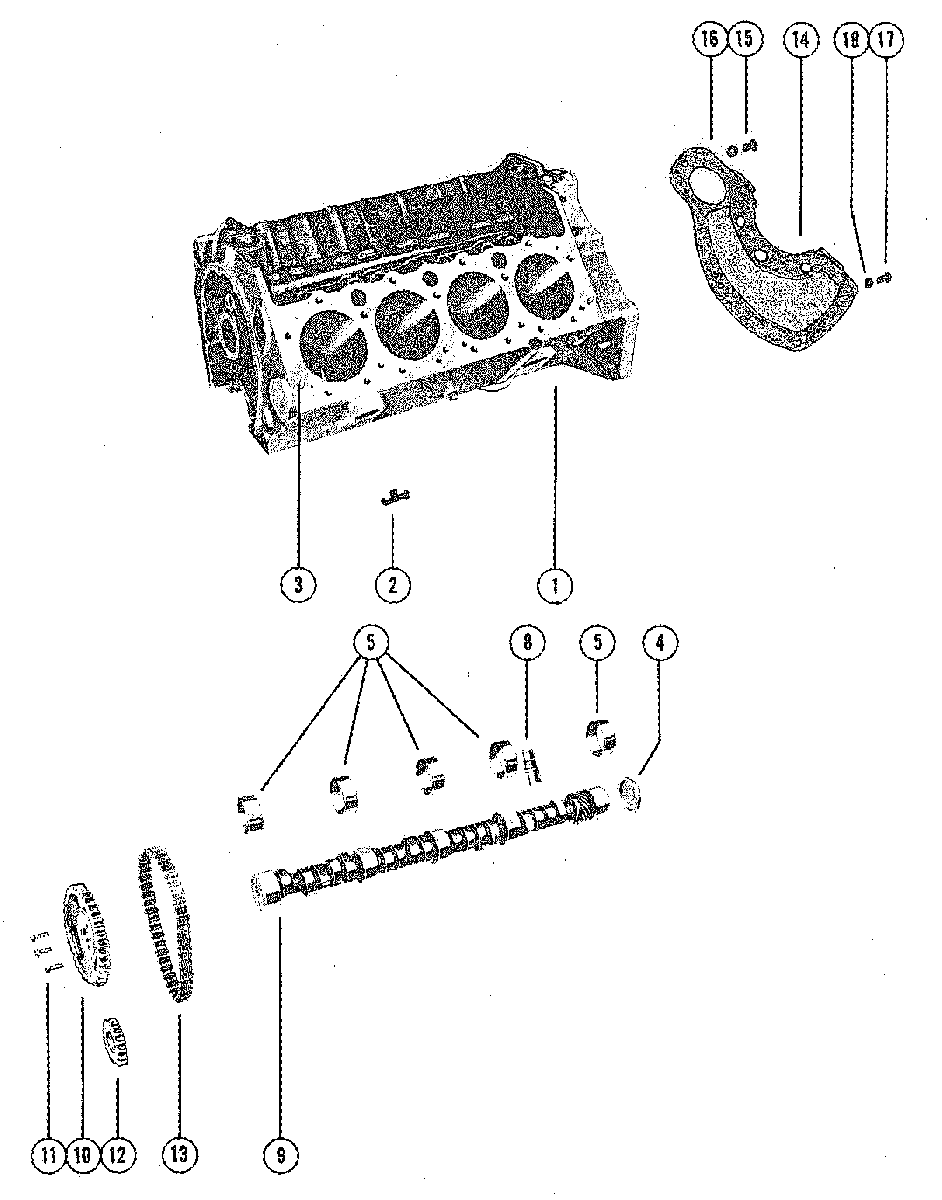

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913

  • №
    Артикул
    Название
  • 1
    842-9639 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • -
    22-428611 PLUG, PIPE - CYLINDER BLOCK (3/4")
    PLUG, PIPE - CYLINDER BLOCK (3/4")
  • -
    22-69300 PLUG, PIPE - CYLINDER BLOCK (1 3/4")
    PLUG, PIPE - CYLINDER BLOCK (1 3/4")
  • -
    22-32561 PLUG, PIPE - CYLINDER BLOCK (1/4")
    PLUG, PIPE - CYLINDER BLOCK (1/4")
  • -
    22-12524 PLUG, PIPE - CYLINDER BLOCK (3/8")
    PLUG, PIPE - CYLINDER BLOCK (3/8")
  • 2
    22-16951Q1 DRAIN COCK, WATER - CYLINDER BLOCK
    DRAIN COCK, WATER - CYLINDER BLOCK
  • 3
    17-52190 PIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEAD
    PIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEAD
  • 4
    19-94140 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 5
    23-85684 BEARING UNIT, CAMSHAFT (SET)
    BEARING UNIT, CAMSHAFT (SET)
  • 8
    72638 LIFTER, HYDRAULIC VALVE - TAPPET
    LIFTER, HYDRAULIC VALVE - TAPPET
  • 9
    431-4734 CAMSHAFT CHAIN DRIVEN ENGINES
    CAMSHAFT CHAIN DRIVEN ENGINES
  • 10
    43-86481 SPROCKET, CAMSHAFT CHAIN DRIVEN ENGINES
    SPROCKET, CAMSHAFT CHAIN DRIVEN ENGINES
  • 11
    10-34505 BOLT, CAMSHAFT SPROCKET CHAIN DRIVEN ENGINES
    BOLT, CAMSHAFT SPROCKET CHAIN DRIVEN ENGINES
  • 12
    43-86482 SPROCKET, CRANKSHAFT CHAIN DRIVEN ENGINES
    SPROCKET, CRANKSHAFT CHAIN DRIVEN ENGINES
  • 13
    75588T CHAIN, DRIVE CHAIN DRIVEN ENGINES
    CHAIN, DRIVE CHAIN DRIVEN ENGINES
  • 9
    431-3427 CAMSHAFT GEAR DRIVEN ENGINES
    CAMSHAFT GEAR DRIVEN ENGINES
  • --
    23-49124 THRUST PLATE, CRAMSHAFT GEAR DRIVEN ENGINES
    THRUST PLATE, CRAMSHAFT GEAR DRIVEN ENGINES
  • 10
    43-67115 GEAR, CAMSHAFT GEAR DRIVEN ENGINES
    GEAR, CAMSHAFT GEAR DRIVEN ENGINES
  • 11
    10-8M0040582 BOLT, CAMSHAFT GEAR GEAR DRIVEN ENGINES
    BOLT, CAMSHAFT GEAR GEAR DRIVEN ENGINES
  • 12
    43-49114 GEAR, CRANKSHAFT GEAR DRIVEN ENGINES
    GEAR, CRANKSHAFT GEAR DRIVEN ENGINES
  • 14
    77400T COVER, TRANSMISSION HOUSING STERN DRIVE
    COVER, TRANSMISSION HOUSING STERN DRIVE
  • 15
    10-98257 SCREW, COVER TO ENGINE (1/2") STERN DRIVE
    SCREW, COVER TO ENGINE (1/2") STERN DRIVE
  • 16
    13-39107 LOCKWASHER, COVER SCREW STERN DRIVE
    LOCKWASHER, COVER SCREW STERN DRIVE
  • 17
    10-98253 SCREW, COVER TO ENGINE (1/2") STERN DRIVE
    SCREW, COVER TO ENGINE (1/2") STERN DRIVE
  • 18
    13-26992 LOCKWASHER, COVER SCREW STERN DRIVE
    LOCKWASHER, COVER SCREW STERN DRIVE
