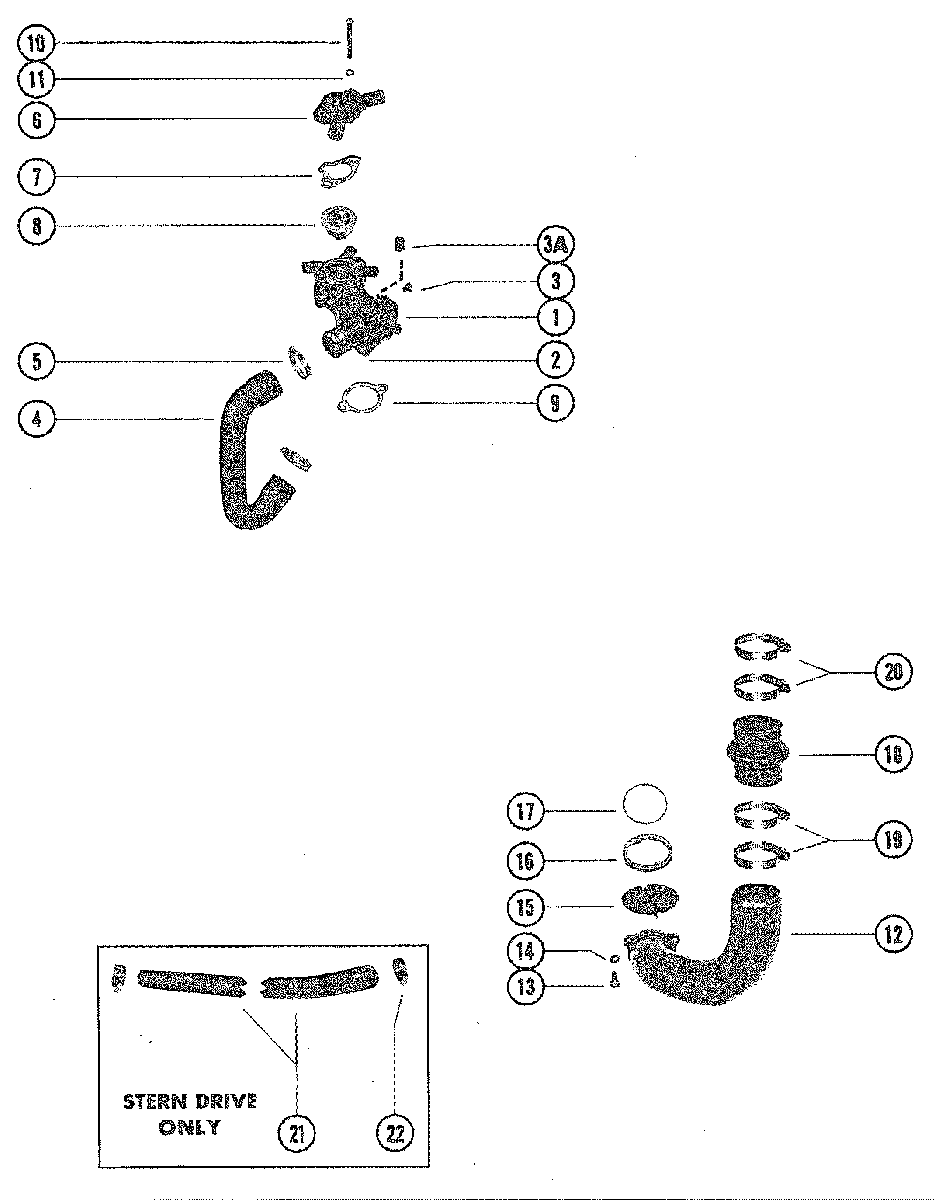

THERMOSTAT HOUSING для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913

  • №
    Артикул
    Название
  • 1
    79468A1 THERMOSTAT HOUSING ASSEMBLY(STERN DRIVE)
    THERMOSTAT HOUSING ASSEMBLY(STERN DRIVE)
  • 1
    78985A1 THERMOSTAT HOUSING ASSEMBLY(INBOARD)
    THERMOSTAT HOUSING ASSEMBLY(INBOARD)
  • 2
    23-47511 SLEEVE, THERMOSTATE HOUSING
    SLEEVE, THERMOSTATE HOUSING
  • 3
    22-47540 PLUG, THERMOSTATE HOUSING
    PLUG, THERMOSTATE HOUSING
  • 3A
    22-416223 PLUG, THERMOSTAT HOUSING
    PLUG, THERMOSTAT HOUSING
  • 4
    32-897181 HOSE, HOUSING TO CIRCULATING PUMP POWER STEERING
    HOSE, HOUSING TO CIRCULATING PUMP POWER STEERING
  • 5
    54-815504232 CLAMP, HOSE ATTACHING POWER STEERING
    CLAMP, HOSE ATTACHING POWER STEERING
  • 6
    8M0061068 COVER, THERMOSTAT HOUSING
    COVER, THERMOSTAT HOUSING
  • 7
    27-488181 GASKET, THERMOSTAT HOUSING (UPPER)
    GASKET, THERMOSTAT HOUSING (UPPER)
  • 8
    8M0089715 THERMOSTAT (143 )
    THERMOSTAT (143 )
  • 9
    27-530451 GASKET, THERMOSTAT HOUSING TO MANIFOLD (LOWER)
    GASKET, THERMOSTAT HOUSING TO MANIFOLD (LOWER)
  • 10
    10-60410 SCREW, THERMOSTAT HOUSING ATTACHING (4 1/4")
    SCREW, THERMOSTAT HOUSING ATTACHING (4 1/4")
  • 11
    13-35048 LOCKWASHER, THERMOSTAT HOUSING SCREW
    LOCKWASHER, THERMOSTAT HOUSING SCREW
  • 12
    77118A3 ELBOW, EXHAUST (STARBOARD)
    STERN DRIVE
    ELBOW, EXHAUST (STARBOARD)
    STERN DRIVE
  • 12
    77117A3 ELBOW, EXHAUST (PORT)
    STERN DRIVE
    ELBOW, EXHAUST (PORT)
    STERN DRIVE
  • 13
    10-8M0113174 SCREW, ELBOW TO TRANSOM PLATE (2 1/4")
    STERN DRIVE
    SCREW, ELBOW TO TRANSOM PLATE (2 1/4")
    STERN DRIVE
  • 14
    13-35048 LOCKWASHER, EXHAUST ELBOW SCREW
    STERN DRIVE
    LOCKWASHER, EXHAUST ELBOW SCREW
    STERN DRIVE
  • 15
    60930 WATER SHUTTER, EXHAUUST ELBOW
    STERN DRIVE
    WATER SHUTTER, EXHAUUST ELBOW
    STERN DRIVE
  • 16
    63151T RETAINER, SHUTTER TO EXHAUST ELBOW
    STERN DRIVE
    RETAINER, SHUTTER TO EXHAUST ELBOW
    STERN DRIVE
  • 17
    25-35029 "O" RING, EXHAUST ELBOW TO TRANSOM PLATE
    STERN DRIVE
    "O" RING, EXHAUST ELBOW TO TRANSOM PLATE
    STERN DRIVE
  • 18
    70981A3 BELLOWS, EXHAUST ELBOW
    STERN DRIVE
    BELLOWS, EXHAUST ELBOW
    STERN DRIVE
  • 19
    54-815504372 CLAMP, BELLOWS TO EXHAUST ELBOW (LOWER)
    STERN DRIVE
    CLAMP, BELLOWS TO EXHAUST ELBOW (LOWER)
    STERN DRIVE
  • 20
    54-815504456 CLAMP, BELLOWS TO EXHAUST ELBOW (UPPER)
    STERN DRIVE
    CLAMP, BELLOWS TO EXHAUST ELBOW (UPPER)
    STERN DRIVE
  • 21
    32-77482 HOSE, THERMOSTAT HOUSING POWER STEERING
    STERN DRIVE
    HOSE, THERMOSTAT HOUSING POWER STEERING
    STERN DRIVE
  • 21
    32-86364 HOSE, THERMOSTAT HOUSING NON POWER STEERING
    STERN DRIVE
    HOSE, THERMOSTAT HOUSING NON POWER STEERING
    STERN DRIVE
  • 22
    54-815504220 CLAMP, HOSE TO THERMOSTAT HOUSING AND COOLER
    STERN DRIVE
    CLAMP, HOSE TO THERMOSTAT HOUSING AND COOLER
    STERN DRIVE
