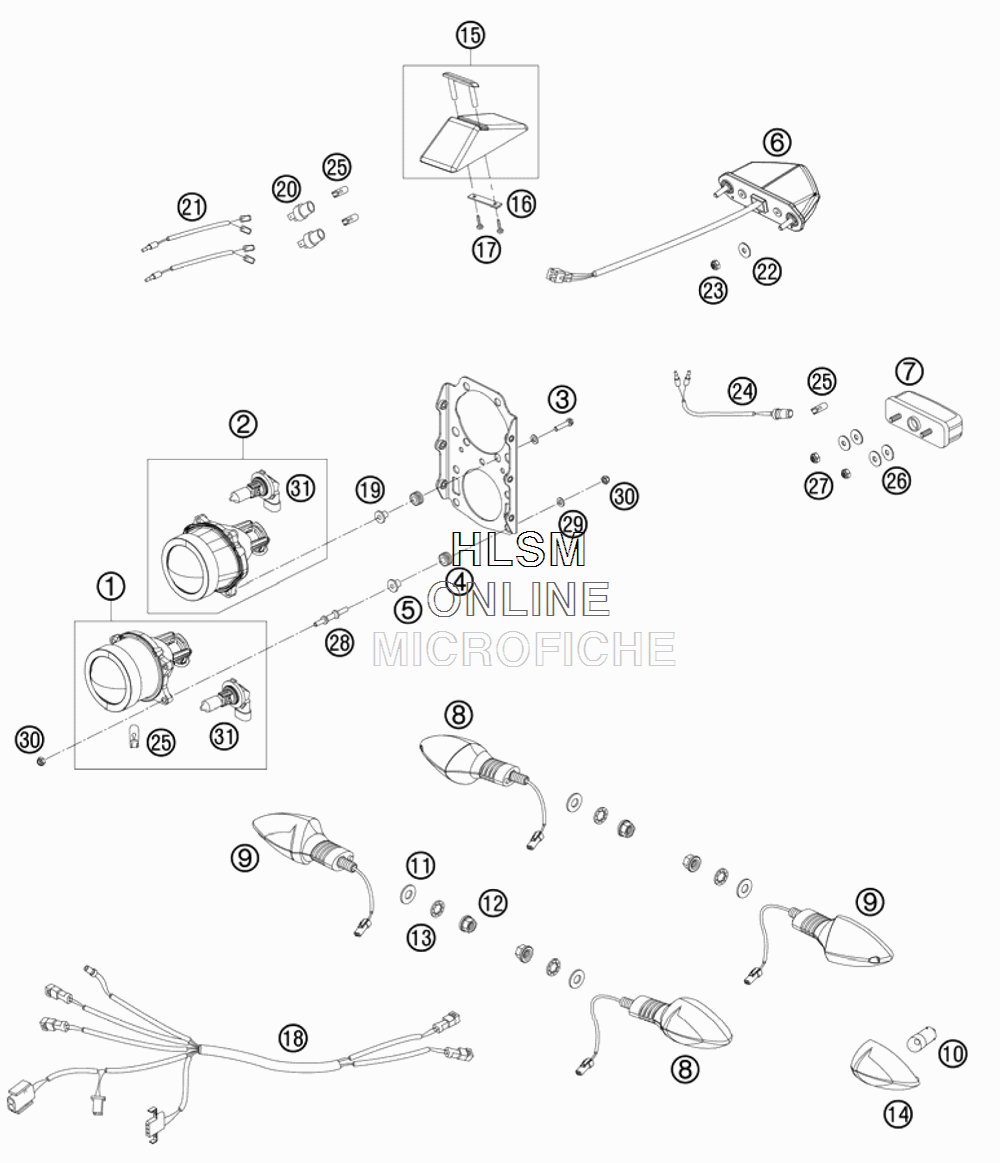

LIGHTING SYSTEM для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска`
-
№АртикулНазвание
-
176214001000 HEADLIGHT HIGH BEAMHEADLIGHT HIGH BEAM
-
276214002000 HEADLIGHT LOW BEAMHEADLIGHT LOW BEAM
-
30024060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
431008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
560014007000 SPACER BUSHING HEAD LIGHTSPACER BUSHING HEAD LIGHT
-
676211040000 TAILLIGHT CPL.TAILLIGHT CPL.
-
758414047000 LICENSE-PLATE ILLUMINATIONLICENSE-PLATE ILLUMINATION
-
860114025000 FLASHER CPL.FRONT L/S REAR R/SFLASHER CPL.FRONT L/S REAR R/S
-
960114026000 FLASHER CPL.FRONT R/S REAR L/SFLASHER CPL.FRONT R/S REAR L/S
-
1060114027000 BULB 12V ORANGE (RY10W)BULB 12V ORANGE (RY10W)
-
110125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
1258414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
130797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
1460114028000 FLASHER LENS L/S R/S TRANSP.FLASHER LENS L/S R/S TRANSP.
-
1558511099244 EXTRA REAR LIGHT LENSEXTRA REAR LIGHT LENS
-
1658514046000 REAR LIGHT BRACKETREAR LIGHT BRACKET
-
170981350133 SHEET MET.SCR.DIN7981-3,5X13SHEET MET.SCR.DIN7981-3,5X13
-
1876211080000 WIRING HARNESS FLASHERWIRING HARNESS FLASHER
-
1958314060050 SPACER BUSH. F. SPEEDOMET.BRA.SPACER BUSH. F. SPEEDOMET.BRA.
-
2058514004000 SOCKET FOR BRAKE LIGHTSOCKET FOR BRAKE LIGHT
-
2158511099200 WIRING HARNESS REAR LIGHTWIRING HARNESS REAR LIGHT
-
220021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
230985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
2476214048000 CABLE LIC. PLATE ILLUMINATIONCABLE LIC. PLATE ILLUMINATION
-
2549011435100 BULB 12V 5W (W2,1X9,5D) PHIL.BULB 12V 5W (W2,1X9,5D) PHIL.
-
260021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
270985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
2876214010015 SPACING MANDRELSPACING MANDREL
-
290125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
300985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
3158714003000 BULB HB3 12V 60WBULB HB3 12V 60W
