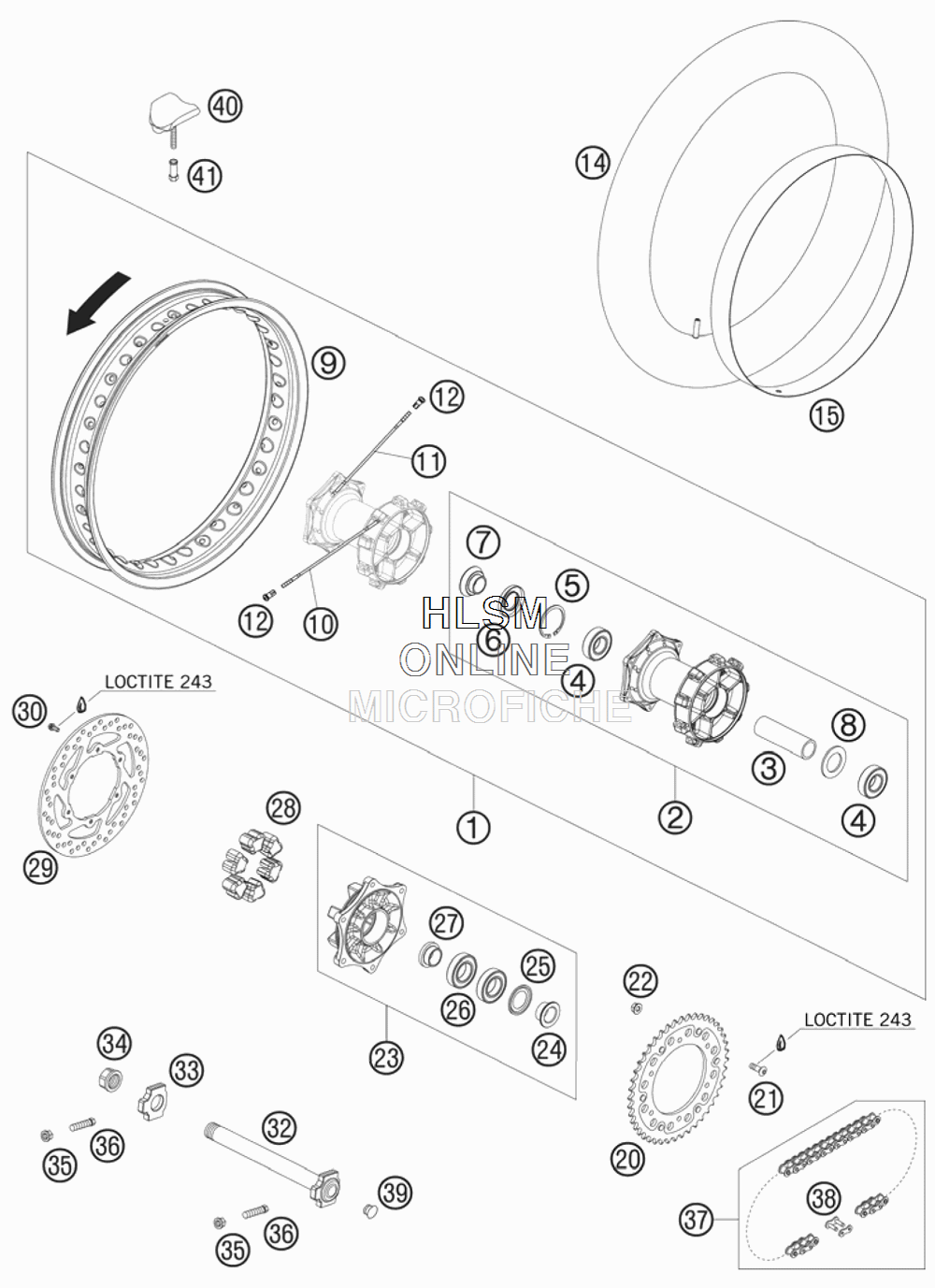

REAR WHEEL для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска
-
№АртикулНазвание
-
176210001044 REAR WHEEL RALLY CPL.REAR WHEEL RALLY CPL.
-
275310010044 REAR HUB CPL.REAR HUB CPL.
-
375310011000 BEARING SPACER TUBE L=106MMBEARING SPACER TUBE L=106MM
-
40625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7GR.BALL BEAR. 6205-2RSHC3HMTF7
-
50472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
60760305271 SHAFT SEAL RING 30X52X7SHAFT SEAL RING 30X52X7
-
760110013000 SPACER BUSH. REAR WHEEL R/SSPACER BUSH. REAR WHEEL R/S
-
860010015000 SPACER RINGSPACER RING
-
97621007000030 RIM 2.50X18"RIM 2.50X18"
-
1075310072217 SPOKE M5X217-17G 18" DACROSPOKE M5X217-17G 18" DACRO
-
1175310172207 SPOKE M5X207-27G 18" DACROSPOKE M5X207-27G 18" DACRO
-
1258309072100 SPOKE NIPPLE M5-TA 8X21MMSPOKE NIPPLE M5-TA 8X21MM
-
1450310075100 HOSE0/100C-18HOSE0/100C-18
-
1550310073200 RIM BAND 18" AND 19"RIM BAND 18" AND 19"
-
205841005104204 REAR SPROCKET ORANGE 42-TREAR SPROCKET ORANGE 42-T
-
205841005104404 REAR SPROCKET ORANGE 44-TREAR SPROCKET ORANGE 44-T
-
205841005104604 REAR SPROCKET ORANGE 46 T.REAR SPROCKET ORANGE 46 T.
-
210019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
2254310086200 SELF LOCKING NUT M8 .9SELF LOCKING NUT M8 .9
-
2375010050044 SPROCKET SUPPORT CPL.SPROCKET SUPPORT CPL.
-
2460110012000 SPACER BUSH. SPROCKET SUPP.SPACER BUSH. SPROCKET SUPP.
-
2560110016000 NILOS RING 6006AVNILOS RING 6006AV
-
260625060060 BALL BEARING 6006 DDU2CG23S6NMBALL BEARING 6006 DDU2CG23S6NM
-
2760110014000 SPACER BUSH. SPR. SUPP. IN.SPACER BUSH. SPR. SUPP. IN.
-
2854610459000 RUBBER DAMPING BLOCKRUBBER DAMPING BLOCK
-
2960010060000 REAR BRAKE DISK D=240MMREAR BRAKE DISK D=240MM
-
3059009062013 SPECIAL SCREW M6X13 WS=8.9SPECIAL SCREW M6X13 WS=8.9
-
3276210081044 WHEEL SPINDLE REAR CPL.WHEEL SPINDLE REAR CPL.
-
3360010084000 CHAIN TENSIONER R/S LC8CHAIN TENSIONER R/S LC8
-
3460010086000 COLLAR NUT WH. SPINDLE REARCOLLAR NUT WH. SPINDLE REAR
-
3558414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
3650304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
3750310800118 CHAIN Z-RING 5/8X1/4" REGINACHAIN Z-RING 5/8X1/4" REGINA
-
3850310866000 MASTER LINK FOR 50310800118MASTER LINK FOR 50310800118
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4056410100100 RIM LOCK VM4 (2.50")RIM LOCK VM4 (2.50")
-
4150310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
