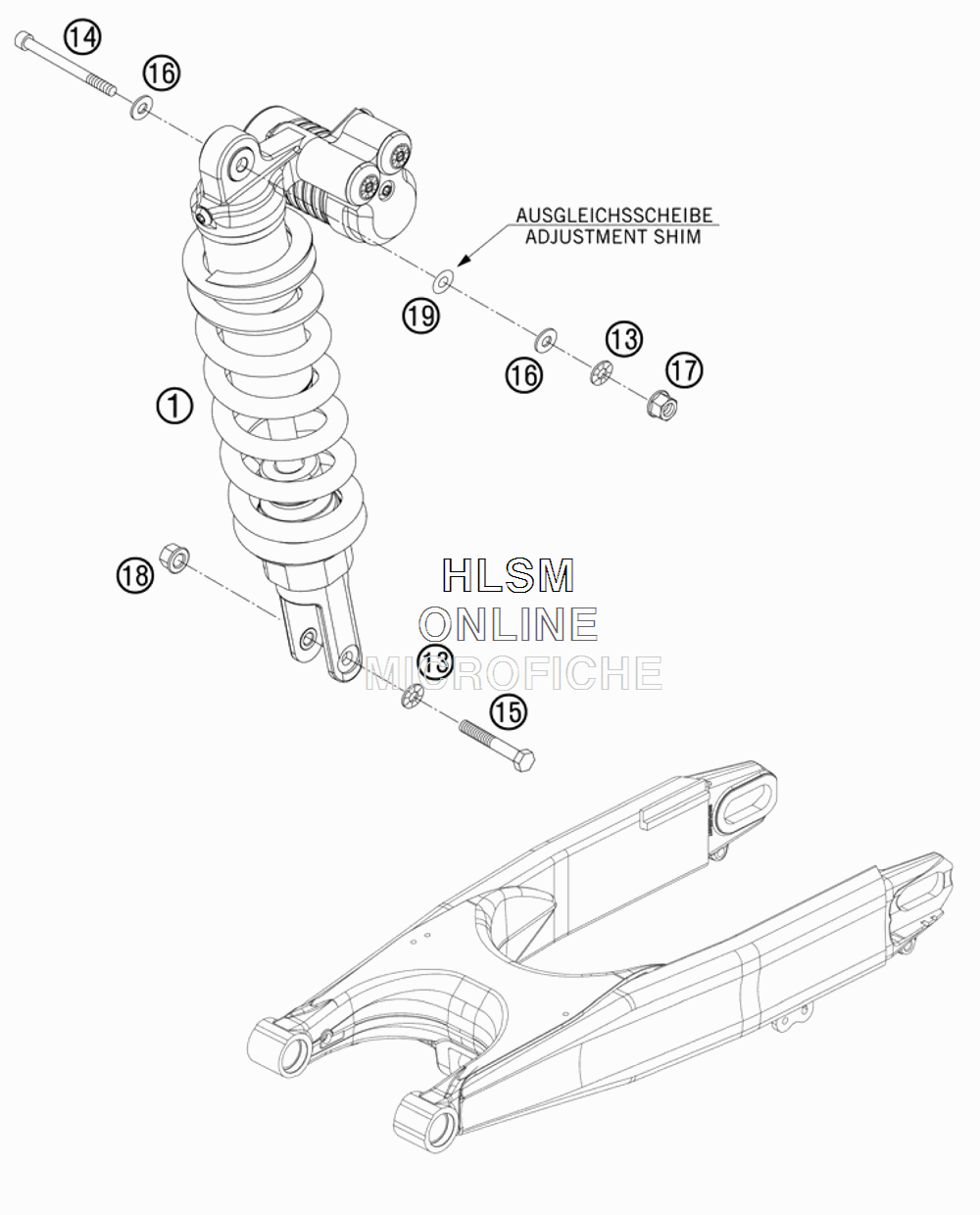

MONOSHOCK для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска
-
№АртикулНазвание
-
1*12187E17 MONOSHOCK 690 RALLYMONOSHOCK 690 RALLY
-
1350233041100 PAIR OF WASHERS M10 NORDLOCKPAIR OF WASHERS M10 NORDLOCK
-
140912101303 ALLEN SCREW DIN0912-M10X130ALLEN SCREW DIN0912-M10X130
-
1556503093000 SPECIAL SCREW M10X55 WS=17SPECIAL SCREW M10X55 WS=17
-
16*0125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
1754630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
1876230044000 COLLAR NUT M10 TURNEDCOLLAR NUT M10 TURNED
-
1976203030000 SHIMX24X1SHIMX24X1
