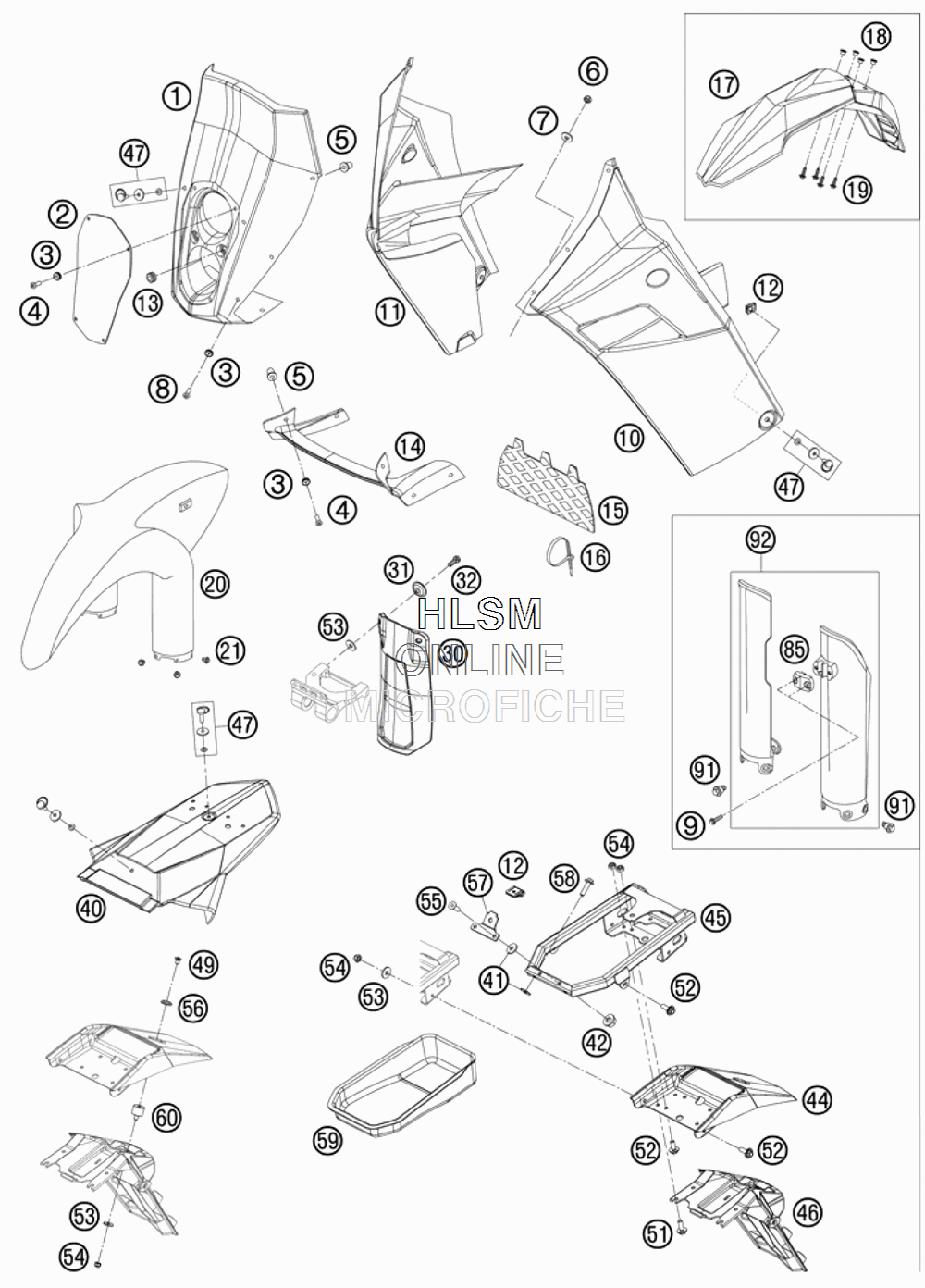

MASK FENDERS для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    76211004000 HEADLIGHT MASK
    HEADLIGHT MASK
  • 2
    76214010020 HEADLIGHT PANE FRONT MASK
    HEADLIGHT PANE FRONT MASK
  • 3
    60008046000 SPECIAL WASHER D=12MM
    SPECIAL WASHER D=12MM
  • 4
    0966050208 O.H.SCREW DIN0966-M 5X20 BLACK
    O.H.SCREW DIN0966-M 5X20 BLACK
  • 5
    60008008050 BLIND PLUG-IN NUT M5 WN 16A
    BLIND PLUG-IN NUT M5 WN 16A
  • 6
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 7
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 8
    0966050163 OVAL HEAD SCREW DIN0966-M 5X16
    OVAL HEAD SCREW DIN0966-M 5X16
  • 9
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 10
    76211003000 FRONT MASK L/S
    FRONT MASK L/S
  • 11
    76211002000 FRONT MASK R/S
    FRONT MASK R/S
  • 12
    45007040052 CLIP
    CLIP
  • 13
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 14
    76211004020 AIR BAFFLE
    AIR BAFFLE
  • 15
    76211004030 OIL RADIATOR GRID
    OIL RADIATOR GRID
  • 16
    44011076100 CABLE TIE0/2,5MM BLACK
    CABLE TIE0/2,5MM BLACK
  • 17
    6300801000004 FENDER FRONT ORANGE
    FENDER FRONT ORANGE
  • 18
    50213161000 COLLAR BUSHING
    COLLAR BUSHING
  • 19
    0024060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 20
    5850801020030 FENDER FRONT BLACK
    FENDER FRONT BLACK
  • 21
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
  • 30*
    76506010000 SPLASHBACK
    SPLASHBACK
  • 31
    72210079000 BUCKET
    BUCKET
  • 32
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 40
    76208014000 REAR FENDER
    REAR FENDER
  • 41*
    50232050001 STEEL WASHER 6,4X17X3
    STEEL WASHER 6,4X17X3
  • 42*
    56509064100 SELF LOCKING NUT M6 .9
    SELF LOCKING NUT M6 .9
  • 44
    76208015000 NUMBER PLATE SUPPORT
    NUMBER PLATE SUPPORT
  • 45*
    76203002100 REAR FRAME
    REAR FRAME
  • 46
    58608015000 NUMBER PLATE CARRIER
    NUMBER PLATE CARRIER
  • 47
    45007040051 QUICK RELEASE CPL. 50 SXR
    QUICK RELEASE CPL. 50 SXR
  • 49
    0991060103 FLAT HEAD SCREW DIN7991 M6X10
    FLAT HEAD SCREW DIN7991 M6X10
  • 51*
    0024060136 HH COLLAR SCREW M6X13 TX30
    HH COLLAR SCREW M6X13 TX30
  • 52
    0024060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 53
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 54
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 55*
    0991060353 FLAT HEAD SCREW DIN7991-M 6X35
    FLAT HEAD SCREW DIN7991-M 6X35
  • 56
    58308045000 SPECIAL WASHER 7X12,5X20 BLACK
    SPECIAL WASHER 7X12,5X20 BLACK
  • 57*
    76203002104 MOUNTING BRACKET REAR FENDER
    MOUNTING BRACKET REAR FENDER
  • 58
    0024060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 59*
    76208019100 REAR SHELL
    REAR SHELL
  • 60*
    43205062100 RUBBER GROMMET 20X15-M6X10 (1)
    RUBBER GROMMET 20X15-M6X10 (1)
  • 85
    59001085100 CLAMP F.SPEED.CABLE D=6MM
    CLAMP F.SPEED.CABLE D=6MM
  • 91
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
  • 92
    5900109400030 FORK PROTECT. L/S+R/S BLACK
    FORK PROTECT. L/S+R/S BLACK
