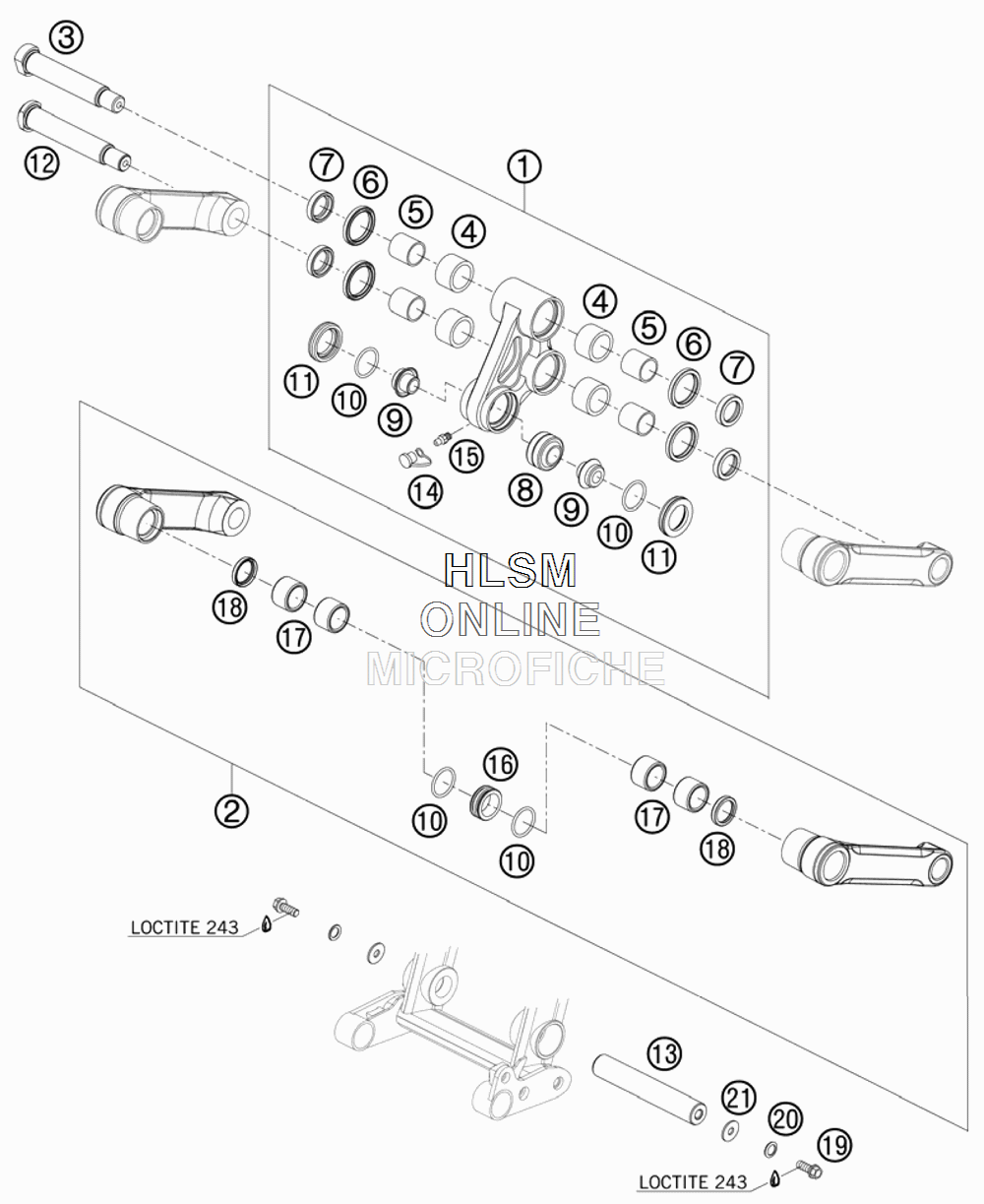

PRO LEVER LINKING для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    76203032044 TRIANGLE LEVER CPL.
    TRIANGLE LEVER CPL.
  • 2
    76203083044 PULL ROD CPL.
    PULL ROD CPL.
  • 3
    76203032010 BOLT FOR CANTILEVER
    BOLT FOR CANTILEVER
  • 4
    54603097000 NEEDLE BUSH HK 2016
    NEEDLE BUSH HK 2016
  • 5
    76203083060 INNER RING INA 17/20/20
    INNER RING INA 17/20/20
  • 6
    0760253240 SHAFT SEAL RING 25X32X4
    SHAFT SEAL RING 25X32X4
  • 7
    76203090000 BUCKET FOR SHAFT SEAL RING
    BUCKET FOR SHAFT SEAL RING
  • 8
    76203083050 SPHERICAL BEARING INA GE14BW
    SPHERICAL BEARING INA GE14BW
  • 9
    76203085000 COLLAR BUSHING
    COLLAR BUSHING
  • 10
    0770021020 O-RING 21,00X2,00 NBR70
    O-RING 21,00X2,00 NBR70
  • 11
    76203032020 SUPPORT FOR SEAL RING
    SUPPORT FOR SEAL RING
  • 12
    76203032015 BOLT FOR CANTILEVER PULL ROD
    BOLT FOR CANTILEVER PULL ROD
  • 13
    76203083010 PULL ROD ANCHOR BOLT
    PULL ROD ANCHOR BOLT
  • 14
    53003099000 CAP WITH LOOP RED
    CAP WITH LOOP RED
  • 15
    72003035000 GREASE FITTING M6 STRAIGHT
    GREASE FITTING M6 STRAIGHT
  • 16
    76203083005 SPACER RING
    SPACER RING
  • 17
    56503195100 NEEDLE BEARING HK 1816
    NEEDLE BEARING HK 1816
  • 18
    0760182442 SHAFT SEAL RING 18X24X4
    SHAFT SEAL RING 18X24X4
  • 19
    0025080166 HH COLLAR SCREW M8X16 TX40
    HH COLLAR SCREW M8X16 TX40
  • 20
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 21
    0021080003 WASHER DIN9021-A 8,4
    WASHER DIN9021-A 8,4
