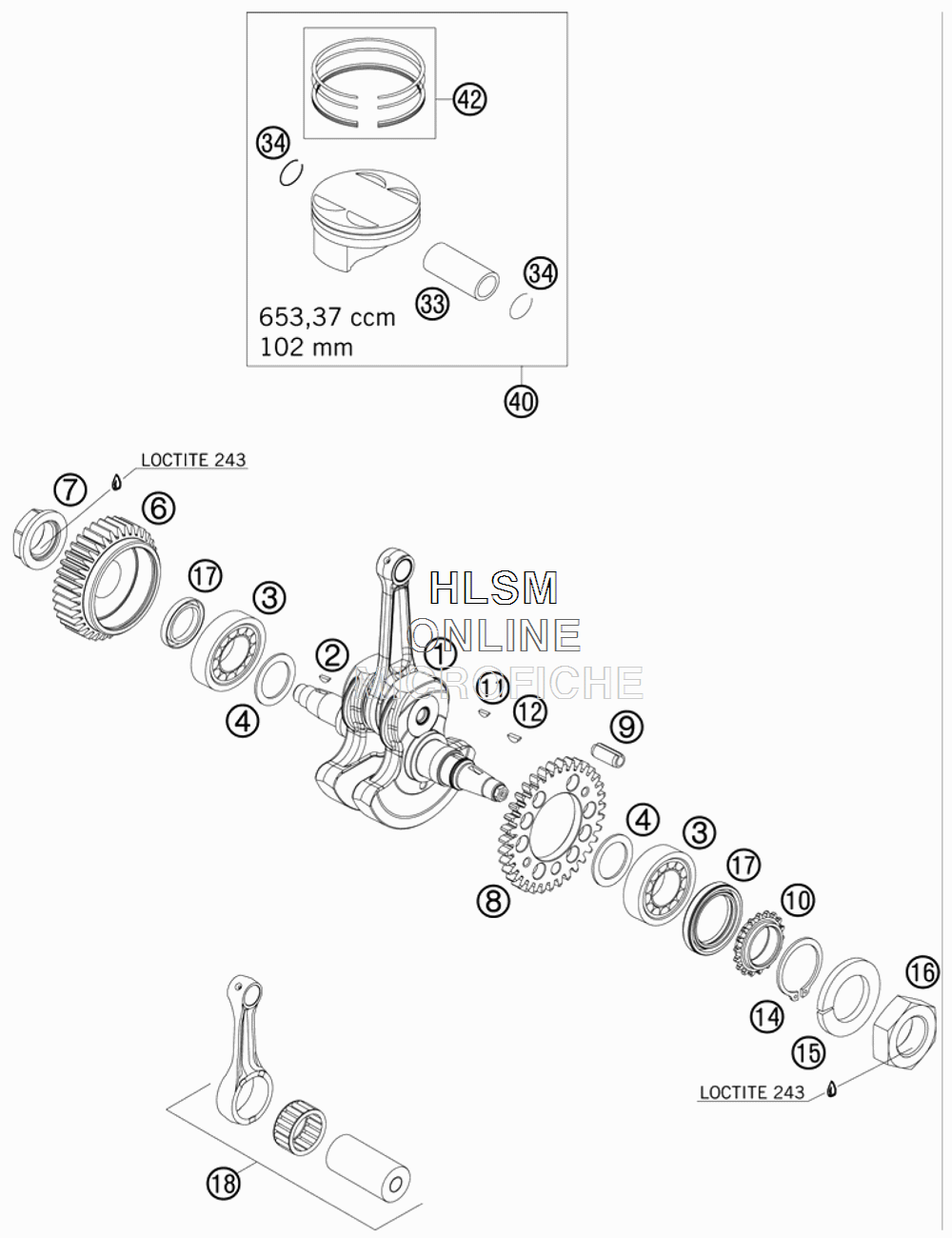

CRANKSHAFT PISTON для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    75030018100 CRANKSHAFT CPL
    CRANKSHAFT CPL
  • 2
    0888040050 WOODRUFF KEY DIN6888 4X5X13
    WOODRUFF KEY DIN6888 4X5X13
  • 3
    75030018150 CYL.ROLLER BEARING NJ207 ECPC4
    CYL.ROLLER BEARING NJ207 ECPC4
  • 4
    56530081000 SHIM WASHER 36X48X0,10
    SHIM WASHER 36X48X0,10
  • 4
    56530081100 SHIM WASHER 36X48X0,15
    SHIM WASHER 36X48X0,15
  • 4
    56530081200 SHIM WASHER 36X48X0,20 STEEL
    SHIM WASHER 36X48X0,20 STEEL
  • 4
    56530081300 SHIM WASHER 36X48X0,30
    SHIM WASHER 36X48X0,30
  • 6
    75032000002 PRIMARY GEAR 36 T
    PRIMARY GEAR 36 T
  • 7
    75030029100 NUT FOR PRIMARY GEAR
    NUT FOR PRIMARY GEAR
  • 8
    75030055000 DRIVE WHEEL BALANCER SHAFT
    DRIVE WHEEL BALANCER SHAFT
  • 9
    0749080300 TENSION PIN ISO13337 8X30
    TENSION PIN ISO13337 8X30
  • 10
    75036014000 TIMING PULLEY
    TIMING PULLEY
  • 11
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 12
    6946005 WOODRUFF KEY 5X6,5 HARDED
    WOODRUFF KEY 5X6,5 HARDED
  • 14
    0471300151 CIRCLIP DIN0471-30X1,5 NIRO
    CIRCLIP DIN0471-30X1,5 NIRO
  • 15
    58132072000 LOCK WASHER VSK 18
    LOCK WASHER VSK 18
  • 16
    0936181505 HEXAGON NUT DIN0936-M18X1,5 R.
    HEXAGON NUT DIN0936-M18X1,5 R.
  • 17
    0760355070 SHAFT SEAL R.35X50X7B VITON
    SHAFT SEAL R.35X50X7B VITON
  • 18
    75030015144 CONNECT. ROD REPAIR SET LC4
    CONNECT. ROD REPAIR SET LC4
  • 33
    75030833000 PISTON PIN LC4
    PISTON PIN LC4
  • 34
    75030074000 CIRCLIP LC4
    CIRCLIP LC4
  • 40
    75030007200I PISTON CPL. I
    PISTON CPL. I
  • 40
    75030007200II PISTON CPL. II
    PISTON CPL. II
  • 42
    75030031044 PISTONRING SET LC4
    PISTONRING SET LC4
