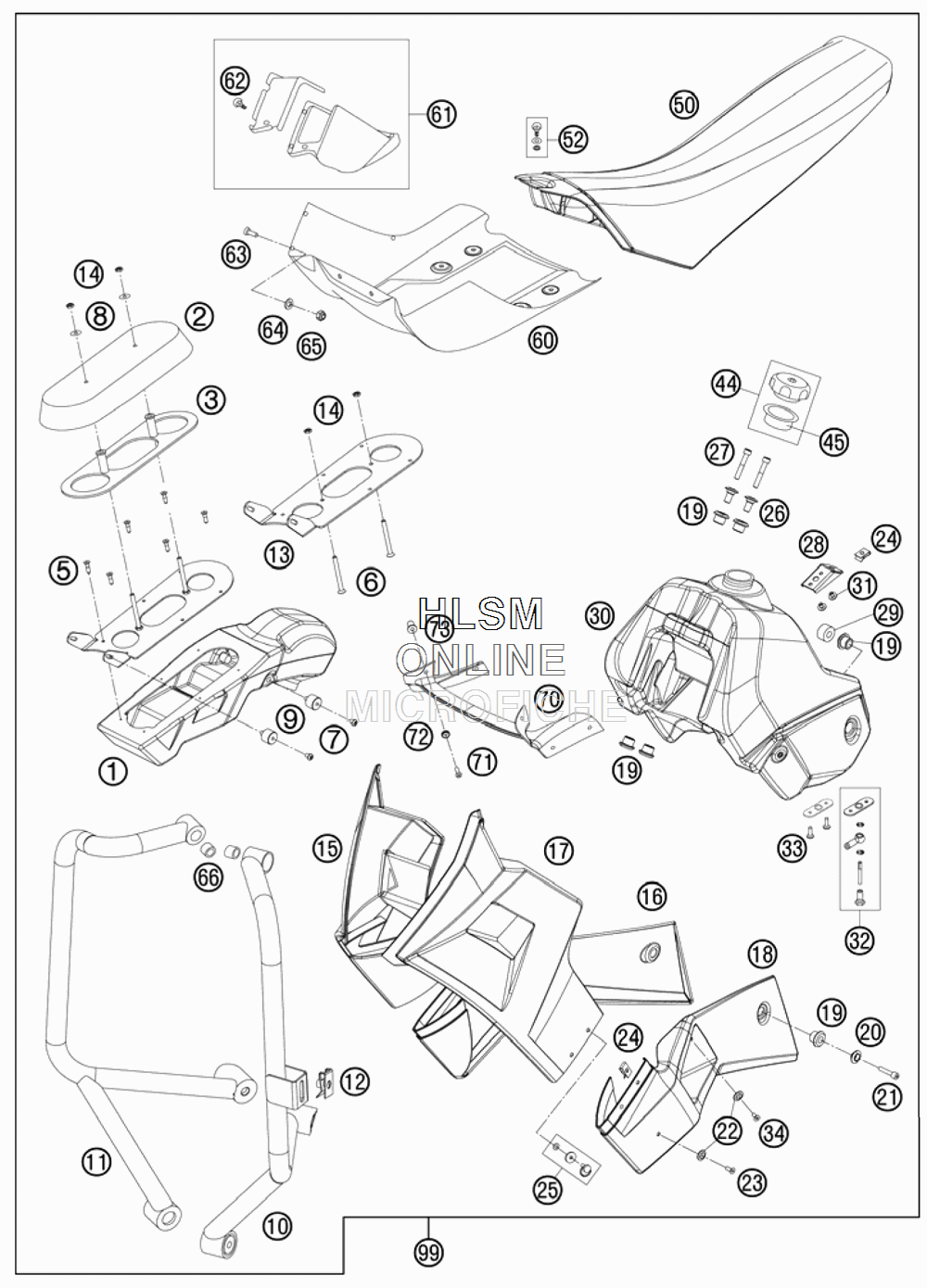

RALLY LIGHT MODIFICATION KIT для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    76206001100 AIRBOX RALLY-LIGHT
    AIRBOX RALLY-LIGHT
  • 2
    58506015000 AIR FILTER TWIN AIR
    AIR FILTER TWIN AIR
  • 3
    58506001000 FILTER CARRIER
    FILTER CARRIER
  • 5
    0991050162 FLAT HEAD S. DIN7991 M5X16-8.8
    FLAT HEAD S. DIN7991 M5X16-8.8
  • 6
    0933050603 HH SCREW DIN0933-M 5X60
    HH SCREW DIN0933-M 5X60
  • 7
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
  • 8
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 9
    76206012000 RUBBER GROMMET 20X15-M6X15-M6
    RUBBER GROMMET 20X15-M6X15-M6
  • 10
    76203007100 ROLL BAR L/S CPL.
    ROLL BAR L/S CPL.
  • 11
    76203008100 ROLL BAR R/S CPL.
    ROLL BAR R/S CPL.
  • 12
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 13
    76206001151 AIRBOX PLATE RALLY LIGHT
    AIRBOX PLATE RALLY LIGHT
  • 14
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 15
    76208042000 MASK R/S TOP
    MASK R/S TOP
  • 16
    76208040000 MASK R/S BOTTOM
    MASK R/S BOTTOM
  • 17
    76208041000 MASK L/S TOP
    MASK L/S TOP
  • 18
    76208040050 MASK L/S BOTTOM
    MASK L/S BOTTOM
  • 19
    56401040000 RUBBER BUSHING
    RUBBER BUSHING
  • 20
    58512062000 BUSHING SLEEVE OUT
    BUSHING SLEEVE OUT
  • 21
    0912080403 AH SCREW DIN912 M8X40
    AH SCREW DIN912 M8X40
  • 22
    58308045000 SPECIAL WASHER 7X12,5X20 BLACK
    SPECIAL WASHER 7X12,5X20 BLACK
  • 23
    0991060163 FLAT HEAD SCR. DIN7991-M 6X16
    FLAT HEAD SCR. DIN7991-M 6X16
  • 24
    45007040052 CLIP
    CLIP
  • 25
    45007040051 QUICK RELEASE CPL. 50 SXR
    QUICK RELEASE CPL. 50 SXR
  • 26
    60007060000 BEARING BUSHING OUTSIDE
    BEARING BUSHING OUTSIDE
  • 27
    0912080403 AH SCREW DIN912 M8X40
    AH SCREW DIN912 M8X40
  • 28
    76207046100 MOUNTING PLATE F. SEAT
    MOUNTING PLATE F. SEAT
  • 29
    76207020000 DISTANCE PIECE FOR FUEL TANK
    DISTANCE PIECE FOR FUEL TANK
  • 30
    76207013100 FUEL TANK RALLY-LIGHT
    FUEL TANK RALLY-LIGHT
  • 31
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 32
    58507008000 FUEL CONNECTION CPL.
    FUEL CONNECTION CPL.
  • 33
    0991050102 FLAT H.SCEW DIN7991-M5X10.9
    FLAT H.SCEW DIN7991-M5X10.9
  • 34
    0991060123 FLAT HEAD SCREW DIN7991 M6X12
    FLAT HEAD SCREW DIN7991 M6X12
  • 44
    49007008044 FILLER CAP CPL. SMALL
    FILLER CAP CPL. SMALL
  • 45
    59007009000 GASKET FOR FILLER CAP HIGH
    GASKET FOR FILLER CAP HIGH
  • 50
    76207040100 SEAT RALLY-LIGHT
    SEAT RALLY-LIGHT
  • 52
    58307040551 QUICK RELEASE CPL.
    QUICK RELEASE CPL.
  • 60
    76212099140 ENGINE GUARD
    ENGINE GUARD
  • 61
    76212099160 TOOL CASE R/S CPL.
    TOOL CASE R/S CPL.
  • 62
    69008901050 QUICK RELEASE F. RAC. COVER
    QUICK RELEASE F. RAC. COVER
  • 63
    58512099365 LINTIL HEAD SCREW M5X12 AH
    LINTIL HEAD SCREW M5X12 AH
  • 64
    0125050003 WASHER DIN0125-A 5,3
    WASHER DIN0125-A 5,3
  • 65
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 66
    58011039100 BUSHING 6,5X11,2X10
    BUSHING 6,5X11,2X10
  • 70
    76211104020 AIR BAFFLE
    AIR BAFFLE
  • 70
    76211104020 AIR BAFFLE
    AIR BAFFLE
  • 71
    0966050208 O.H.SCREW DIN0966-M 5X20 BLACK
    O.H.SCREW DIN0966-M 5X20 BLACK
  • 72
    60008046000 SPECIAL WASHER D=12MM
    SPECIAL WASHER D=12MM
  • 73
    60008008050 BLIND PLUG-IN NUT M5 WN 16A
    BLIND PLUG-IN NUT M5 WN 16A
  • 99
    76212045000 RALLY LIGHT MODIFICATION-KIT
    RALLY LIGHT MODIFICATION-KIT
