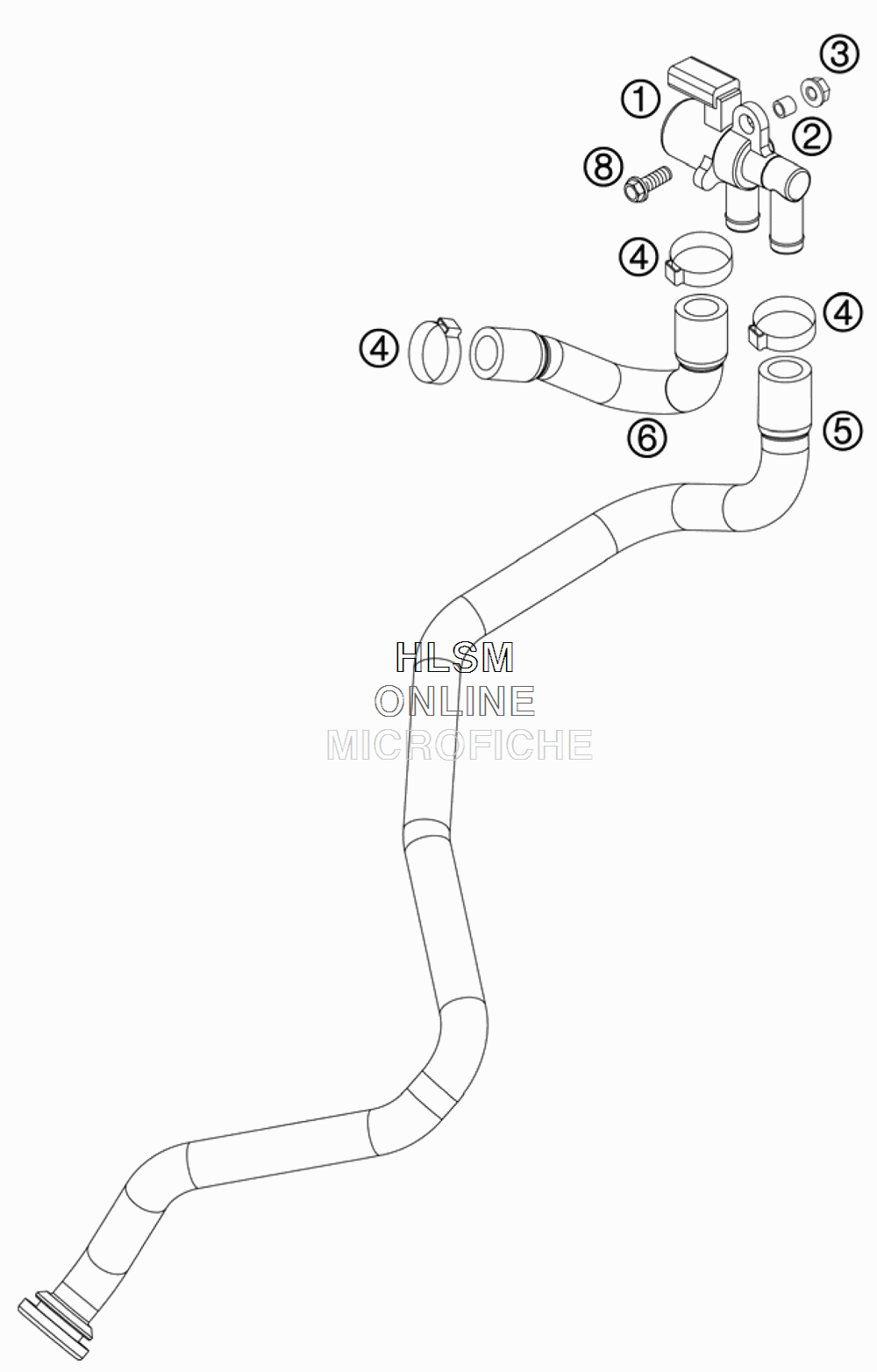

SECONDARY AIR SYSTEM SAS для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска
-
№АртикулНазвание
-
175005026000 SLS-VALVESLS-VALVE
-
258011039000 SPACER BUSHING 6,5 X 8 X 7SPACER BUSHING 6,5 X 8 X 7
-
356509064100 SELF LOCKING NUT M6 .9SELF LOCKING NUT M6 .9
-
400049200121 CLAMP STD DN20CLAMP STD DN20
-
575005032000 HOSE SLS AIRFILTERBOXHOSE SLS AIRFILTERBOX
-
675005031000 HOSE SLS CYLINDERHOSE SLS CYLINDER
-
80024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
