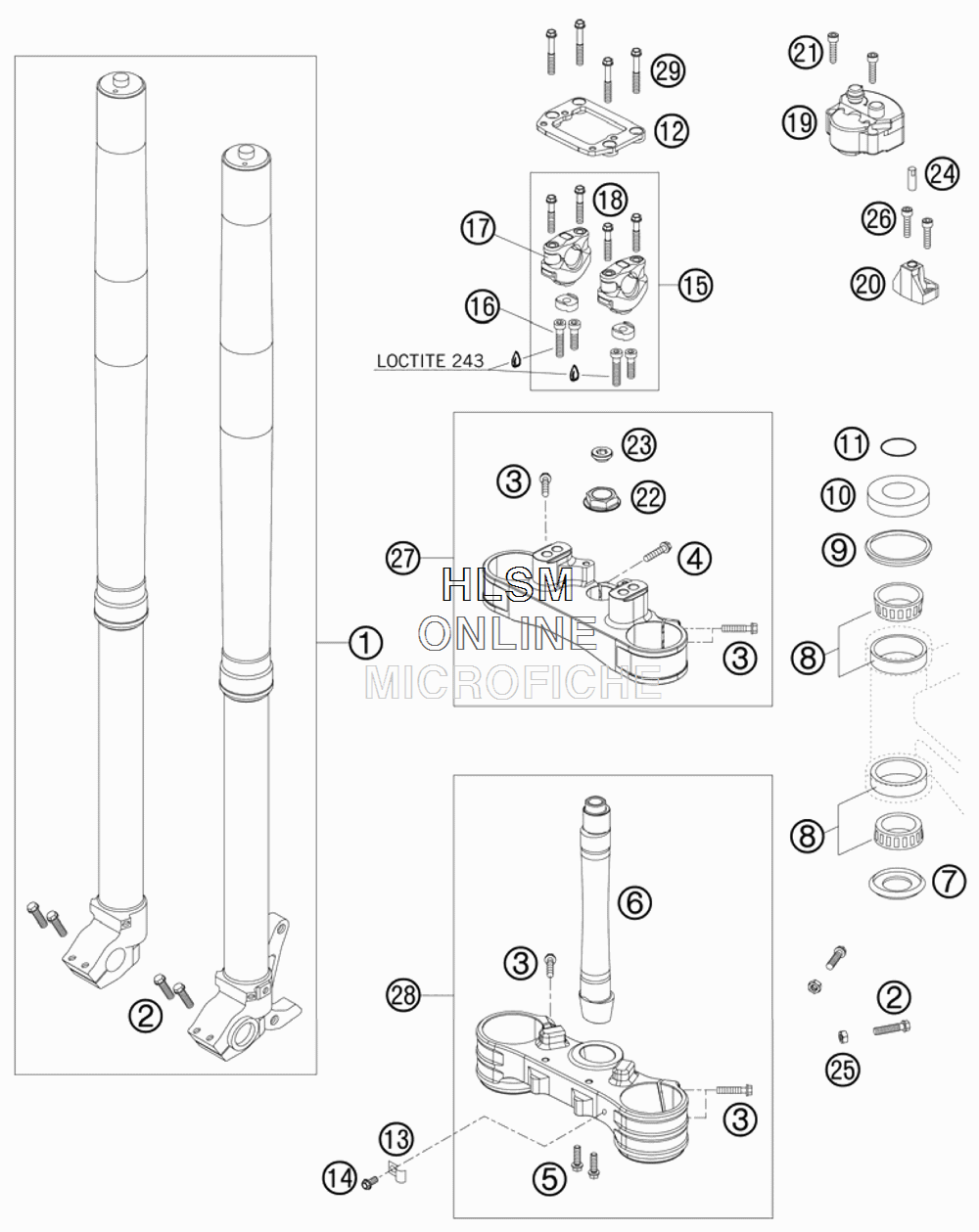

FRONT FORK TRIPLE CLAMP для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска

  • №
    Артикул
    Название
  • 1*
    14187E1001 FORK KTM RALLY FACT.REP.
    FORK KTM RALLY FACT.REP.
  • 2
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 3
    0025080306 HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 4
    0025080256S HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 5
    0025080206 HH COLLAR SCREW M8X20 TX40
    HH COLLAR SCREW M8X20 TX40
  • 6
    76201033000 FORK TUBE
    FORK TUBE
  • 7
    54601084200 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 8
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 9
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 10
    76201086000 STEERING HEAD COVER SHORTENED
    STEERING HEAD COVER SHORTENED
  • 11
    0770025035 O-RING 25X3,55 NBR70
    O-RING 25X3,55 NBR70
  • 12
    R0502003000 GPS SUPPORT MILLED
    GPS SUPPORT MILLED
  • 13
    50211096000 CLAMP FOR WIRING HARNESS
    CLAMP FOR WIRING HARNESS
  • 14
    0025050166 HH COLLAR SCREW M5X16 TX30
    HH COLLAR SCREW M5X16 TX30
  • 15
    SXS07125200 PROGRESSIVE HANDLEB.SUPP.PHDS
    PROGRESSIVE HANDLEB.SUPP.PHDS
  • 16
    0912100256 AH SCREW DIN0912-M10X25 .9
    AH SCREW DIN0912-M10X25 .9
  • 16
    0912100356 AH SCREW DIN6912-M10X35.9
    AH SCREW DIN6912-M10X35.9
  • 17
    SXS05125203 ELASTOMER GREEN/SOFT
    ELASTOMER GREEN/SOFT
  • 17
    SXS05125204 ELASTOMER YELLOW/MEDIUM
    ELASTOMER YELLOW/MEDIUM
  • 17
    SXS05125205 ELASTOMER RED/HARD
    ELASTOMER RED/HARD
  • 18
    0025080456 HH COLLAR SCREW M8X45 TX40
    HH COLLAR SCREW M8X45 TX40
  • 19
    58512050100 STEERING DAMPER
    STEERING DAMPER
  • 20
    76203001079 STEERING DAMPER BRACKET CPL
    STEERING DAMPER BRACKET CPL
  • 21
    0912060253 AH SCREW DIN0912-M 6X25
    AH SCREW DIN0912-M 6X25
  • 22
    76206450404 LOCKING NUT M20 STEERING HEAD
    LOCKING NUT M20 STEERING HEAD
  • 23
    76206450405 LOCKING SCREW M20
    LOCKING SCREW M20
  • 24
    58502006100 PIN F.STEERING STAB. 8MM
    PIN F.STEERING STAB. 8MM
  • 25
    46030045000 COLLAR NUT M8 WS=10
    COLLAR NUT M8 WS=10
  • 26
    0012060164 AH SCREW DIN6912 M6X16 SL
    AH SCREW DIN6912 M6X16 SL
  • 27
    76201034022 TOP TRIPLE CLAMP 22MM
    TOP TRIPLE CLAMP 22MM
  • 28
    76201032022 BOT. TRIPLE CLAMP CPL. 22MM
    BOT. TRIPLE CLAMP CPL. 22MM
  • 29
    0025080556 HH COLLAR SCREW M8X55 TX40
    HH COLLAR SCREW M8X55 TX40
