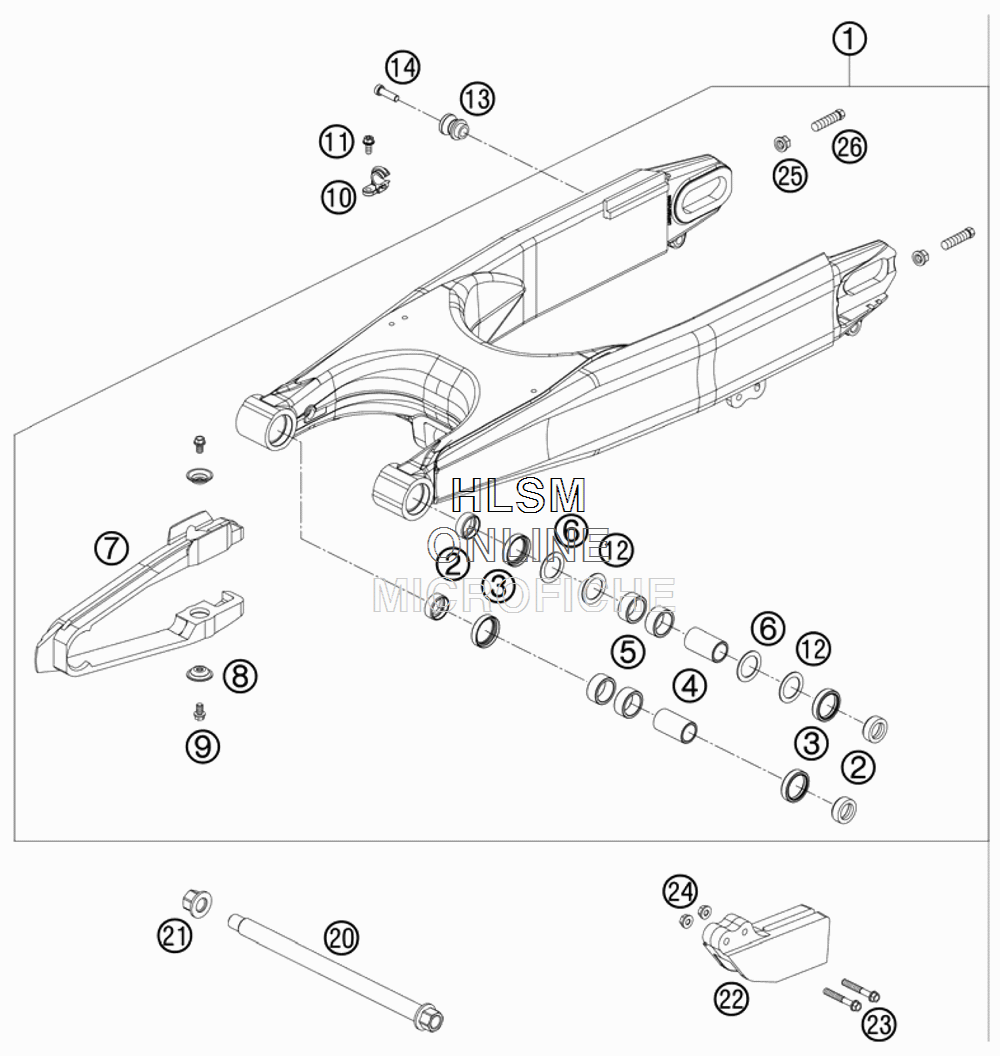

SWING ARM для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    76204030044 SWINGARM RALLY CPL.
    SWINGARM RALLY CPL.
  • 2
    76204034000 SPACER F. SHAFT SEALRING
    SPACER F. SHAFT SEALRING
  • 3
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 4
    59404032000 BEARING SLEEVE 17X22X38,7
    BEARING SLEEVE 17X22X38,7
  • 5
    59004031100 NEEDLE BEARING HK2212V
    NEEDLE BEARING HK2212V
  • 6
    54603036000 STOP DISK 22,2X31,7X1
    STOP DISK 22,2X31,7X1
  • 7
    50304066100 CHAIN GUARD
    CHAIN GUARD
  • 8
    72210079000 BUCKET
    BUCKET
  • 9
    0025060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 10
    54611076100 RETAIN.CLAMP FOR BRAKE HOSE
    RETAIN.CLAMP FOR BRAKE HOSE
  • 11
    0010050103 SPECIAL SCREW M 5,0X10
    SPECIAL SCREW M 5,0X10
  • 12
    76203037000 STOP DISK 22,2X31,7X0,5
    STOP DISK 22,2X31,7X0,5
  • 13
    R0610089000 SUPPORT F. LIFTING DEVICE
    SUPPORT F. LIFTING DEVICE
  • 14
    0912100356 AH SCREW DIN6912-M10X35.9
    AH SCREW DIN6912-M10X35.9
  • 20
    76204037044 SWINGARM BOLT CPL.
    SWINGARM BOLT CPL.
  • 21
    54603015000 SELF LOCKING NUT M14X1,5 WS=19
    SELF LOCKING NUT M14X1,5 WS=19
  • 22
    54607066100 CHAIN GUIDE REAR
    CHAIN GUIDE REAR
  • 23
    0025060406 HH COLLAR SCREW M6X40 TX30
    HH COLLAR SCREW M6X40 TX30
  • 24
    56509064100 SELF LOCKING NUT M6 9
    SELF LOCKING NUT M6 9
  • 25
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 26
    50304040100 SCREW M10X1,25X50 WS=10
    SCREW M10X1,25X50 WS=10
