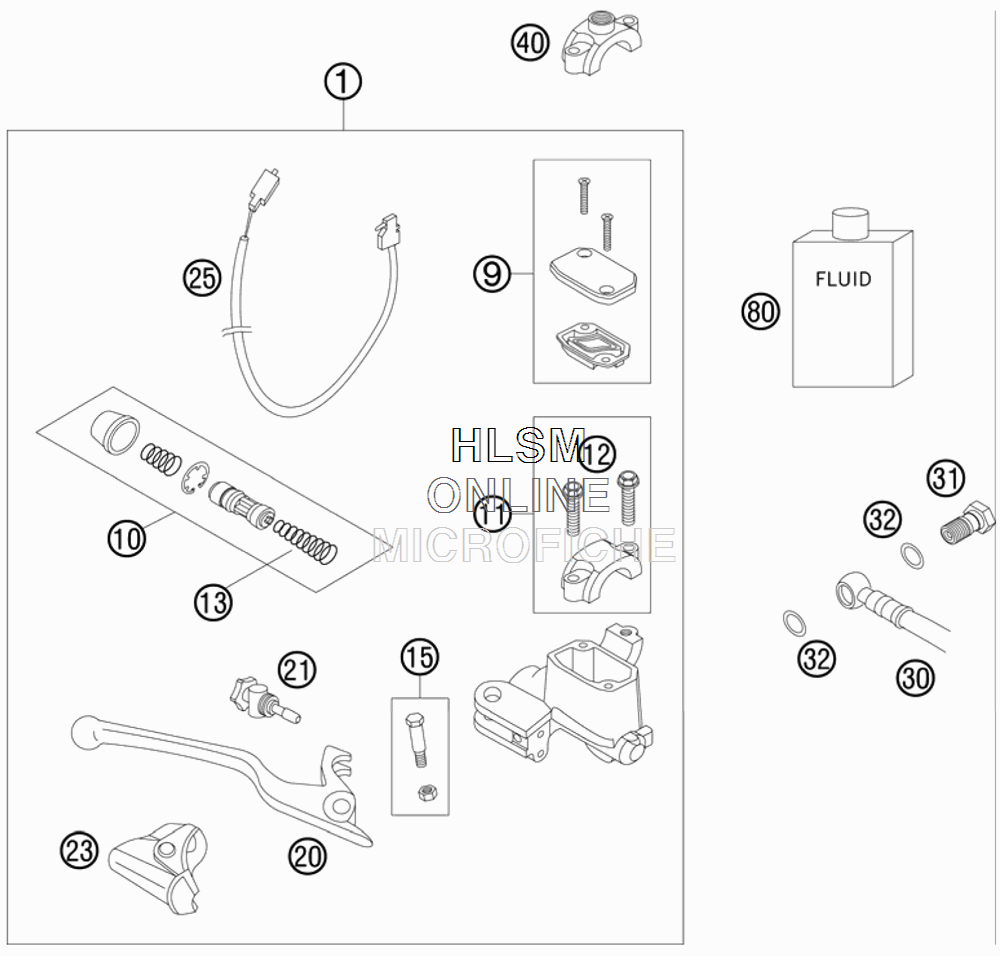

HAND BRAKE CYLINDER для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    50313001200 HANDBRAKE CYL. NAT. SMALL
    HANDBRAKE CYL. NAT. SMALL
  • 9
    50313003000 HANDBRAKE CYL.COVER CPL.NATURE
    HANDBRAKE CYL.COVER CPL.NATURE
  • 10
    50313008300 REP.SET PISTON D=11 EXC
    REP.SET PISTON D=11 EXC
  • 11
    50313005000 CLAMP CPL. NATURE
    CLAMP CPL. NATURE
  • 12
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 13
    50213050050 SPRING PISTON BRAKE FRONTMM
    SPRING PISTON BRAKE FRONTMM
  • 15
    50313006100 LEVER SCREW CPL.
    LEVER SCREW CPL.
  • 20
    50313002100 HANDBRAKE LEVER SHORT
    HANDBRAKE LEVER SHORT
  • 21
    50313007000 ADJUSTING SCREW CPL.
    ADJUSTING SCREW CPL.
  • 23
    50313004000 PROTECTION CAP HAND BRAKE CYL.
    PROTECTION CAP HAND BRAKE CYL.
  • 25
    50311050100 BRAKE LIGHT SWITCH FRONT
    BRAKE LIGHT SWITCH FRONT
  • 30
    76213011000 BRAKE HOSE FRONT 1300MM
    BRAKE HOSE FRONT 1300MM
  • 31
    54813020100 HOLLOW SCREW BLACK M10X1X19
    HOLLOW SCREW BLACK M10X1X19
  • 32
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 40
    58012040150 CLAMP FOR MIRROR
    CLAMP FOR MIRROR
  • 80
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
