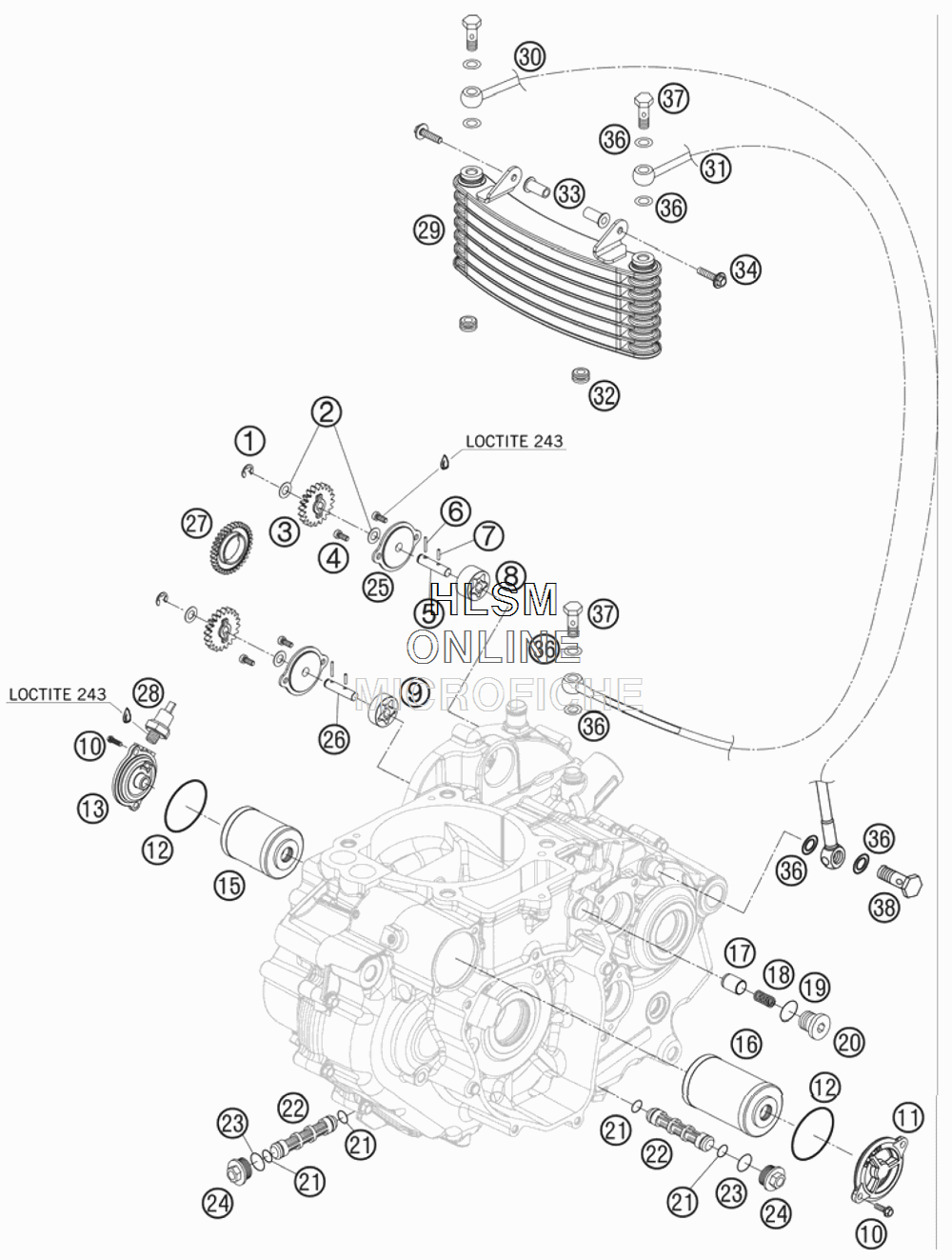

LUBRICATING SYSTEM для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0799060000 TAB WASHER DIN6799-RS 6,0
    TAB WASHER DIN6799-RS 6,0
  • 2
    58038007755 STOP DISK 8,1 X 15 X 0,5
    STOP DISK 8,1 X 15 X 0,5
  • 3
    75038001020 OIL PUMP GEAR 20-T
    OIL PUMP GEAR 20-T
  • 4
    0984050103S CYLIND. SCR. DIN6912 M5X10 8.8
    CYLIND. SCR. DIN6912 M5X10 8.8
  • 5
    75038002000 OIL PUMP SHAFT
    OIL PUMP SHAFT
  • 6
    0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8
    NEEDLEROL.DIN5402 NRA 2,5X19,8
  • 7
    0402251180 NEEDLE ROLLER DIN5402 2,5X11,8
    NEEDLE ROLLER DIN5402 2,5X11,8
  • 8
    77038011000 OILPUMP ROTOR 15MM G-164
    OILPUMP ROTOR 15MM G-164
  • 9
    59038011010 OILPUMP ROTOR CPL.MM G-73R
    OILPUMP ROTOR CPL.MM G-73R
  • 10
    0025050166 HH COLLAR SCREW M5X16 TX30
    HH COLLAR SCREW M5X16 TX30
  • 11
    75038041200 OILFILTER CAP
    OILFILTER CAP
  • 12
    0770039026 O-RING 39,34X2,62 NBR 70 SH
    O-RING 39,34X2,62 NBR 70 SH
  • 13
    76238041000 OIL FILTER COVER
    OIL FILTER COVER
  • 15
    75038046000 OIL FILTER SHORT
    OIL FILTER SHORT
  • 16
    58038005100 OIL FILTER LONG
    OIL FILTER LONG
  • 17
    58038028000 VALVE PISTON D=10MM
    VALVE PISTON D=10MM
  • 18
    58538023000 OIL PRES.SPRING 5 BAR RED
    OIL PRES.SPRING 5 BAR RED
  • 19
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 20
    0908120153 PLUG DIN0908-M12X1,5
    PLUG DIN0908-M12X1,5
  • 21
    07701250151 O-RING 12,5X1,5 VITON V75
    O-RING 12,5X1,5 VITON V75
  • 22
    59038016000 OIL SCREEN 15X83MM
    OIL SCREEN 15X83MM
  • 23
    0770020170 O-RING 17,17X1,78 GLO
    O-RING 17,17X1,78 GLO
  • 24
    59038017000 PLUG M20X1,5 WS=13
    PLUG M20X1,5 WS=13
  • 25
    75038003000 OIL PUMP COVER
    OIL PUMP COVER
  • 26
    75038004000 OIL PUMP SHAFT
    OIL PUMP SHAFT
  • 27
    75032050001 OIL PUMP DRIVE WHEEL
    OIL PUMP DRIVE WHEEL
  • 28
    58338091100 OILPRESSURE SWITCH
    OILPRESSURE SWITCH
  • 29
    76238000000 OIL COOLER
    OIL COOLER
  • 30*
    76238034100 OIL PIPE ENGINE-COOLER35MM
    OIL PIPE ENGINE-COOLER35MM
  • 31*
    76238035100 OIL PIPE COOLER-ENGINE00MM
    OIL PIPE COOLER-ENGINE00MM
  • 32
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 33
    76212090070 INSULATED SCREW JOINT M6
    INSULATED SCREW JOINT M6
  • 34
    0024060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 36
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 37
    54313025000 HOLLOW SCREW M10 X 1
    HOLLOW SCREW M10 X 1
  • 38
    76238025000 HOLLOW SCREW M10 X 1
    HOLLOW SCREW M10 X 1
