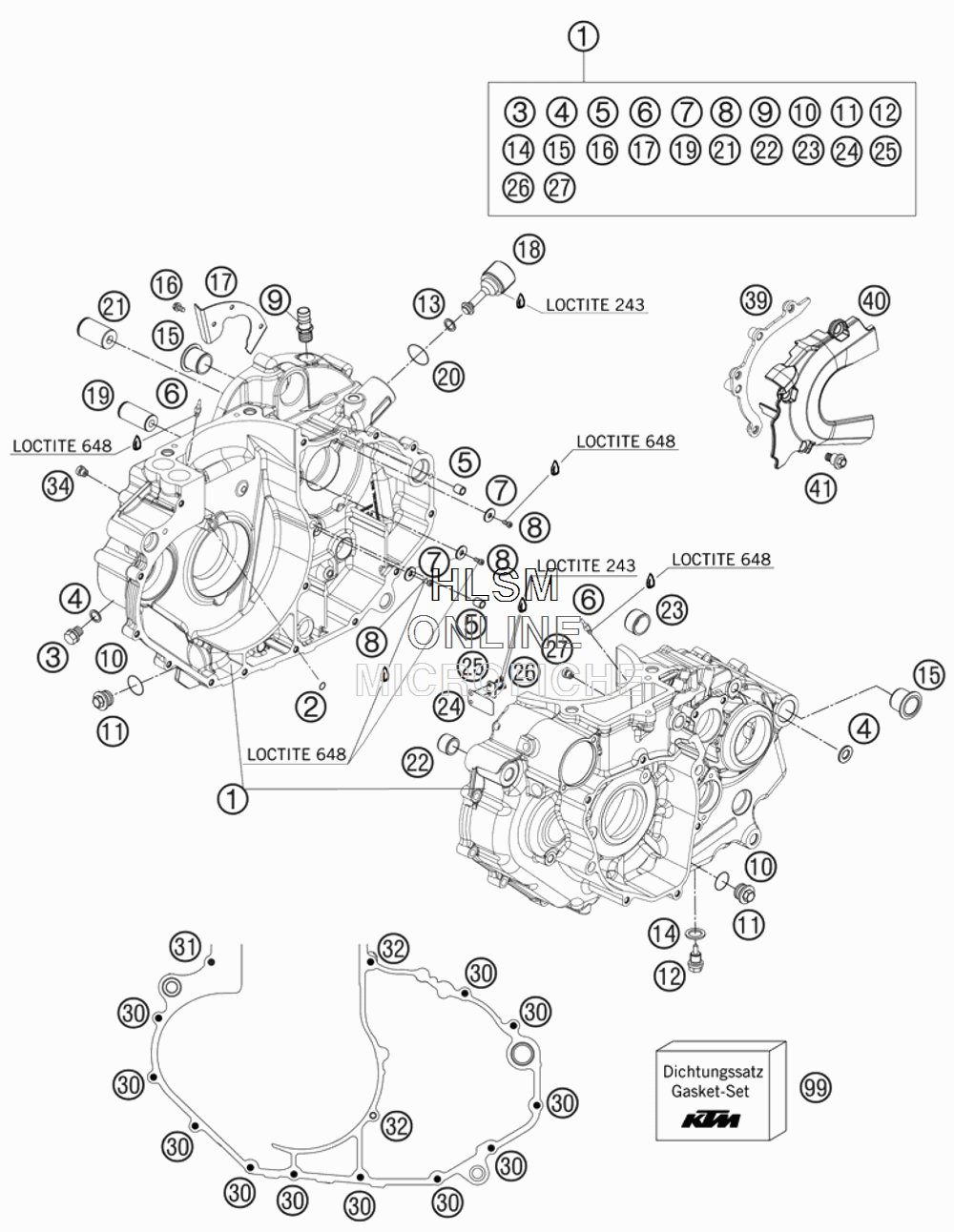

ENGINE CASE для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    75030000133 ENGINE CASE CPL.W.BEAR. LC4
    ENGINE CASE CPL.W.BEAR. LC4
  • 2
    0770060018 O-RING 6,00X1,78
    O-RING 6,00X1,78
  • 3
    0910100003 PLUG DIN0910-MX1
    PLUG DIN0910-MX1
  • 4
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 5
    59030023000 DOWEL 6X8X11,5
    DOWEL 6X8X11,5
  • 6
    60030064070 OIL JET 70 M6X0,75 WS8
    OIL JET 70 M6X0,75 WS8
  • 7
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 8
    073800501001 FLAT HEAD SCREW ISO 7380 M5X10
    FLAT HEAD SCREW ISO 7380 M5X10
  • 9
    60030022000 VENTILATION CONNECTOR M16X1,5
    VENTILATION CONNECTOR M16X1,5
  • 10
    0770020170 O-RING 17,17X1,78 GLO
    O-RING 17,17X1,78 GLO
