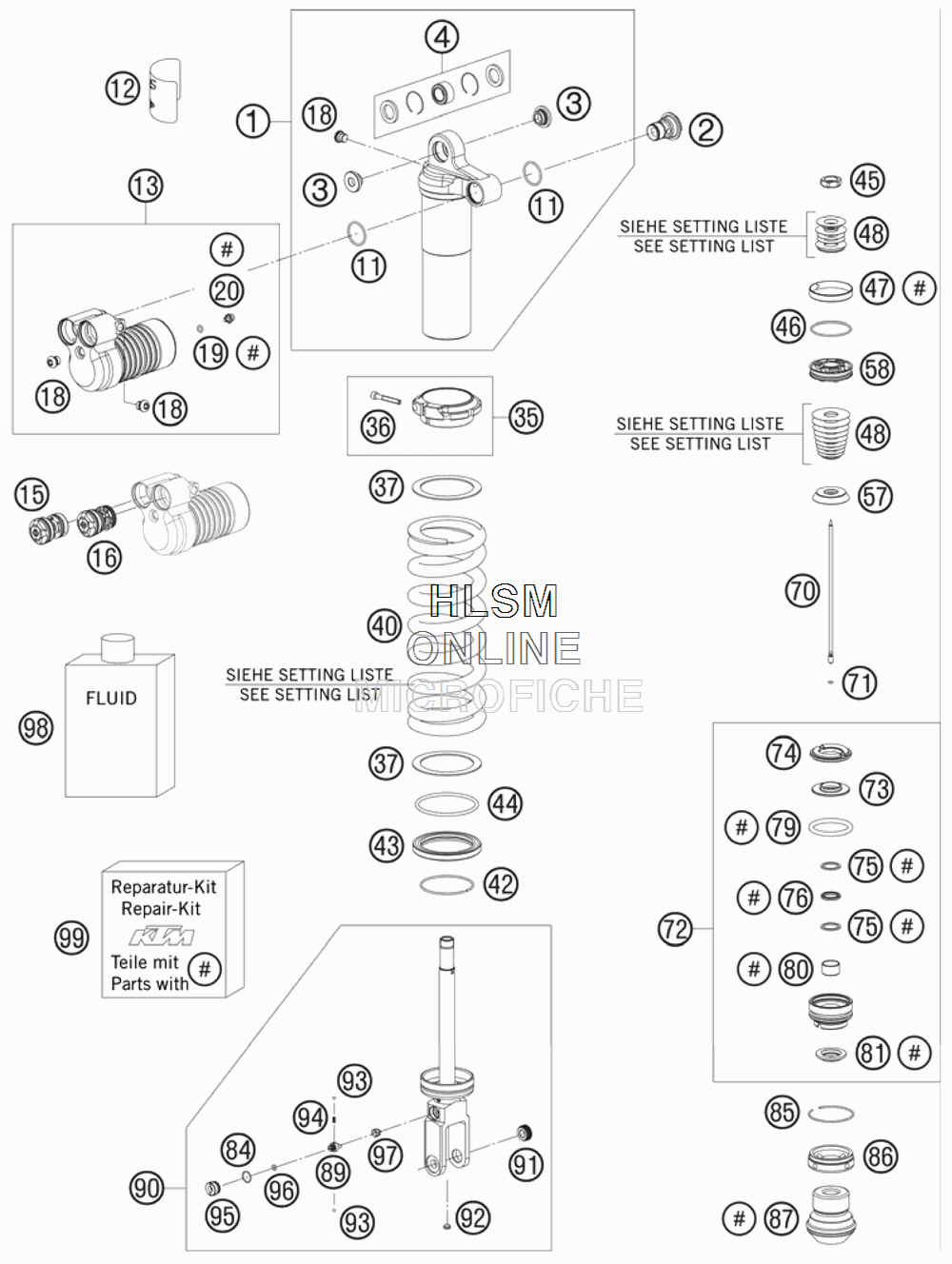

SHOCK ABSORBER DISASSEMBLED для Ktm 690 RALLY FACTORY REPLICA - 2009 года выпуска
-
№АртикулНазвание
-
150180612S1 MONOSHOCK CASE TOPMONOSHOCK CASE TOP
-
246180413 BOLT M20X1BOLT M20X1
-
346180010 BUSH KGWX24BUSH KGWX24
-
4R12012 REP. KIT BEAR./SEAL UP.REP. KIT BEAR./SEAL UP.
-
1146180425 O-RING NBR 25X2O-RING NBR 25X2
-
1252000041 WP CAUTION (PDS KTM) 58X83WP CAUTION (PDS KTM) 58X83
-
1350180611S EXPANSION TANK CPL.EXPANSION TANK CPL.
-
1550180590S DCC LOW-SPEED SXS CONTROLDCC LOW-SPEED SXS CONTROL
-
1650180586S2 DCC HIGH-SPEED NR2 CONTROLDCC HIGH-SPEED NR2 CONTROL
-
1840140014S PLUG ALU M10X1 CPL.PLUG ALU M10X1 CPL.
-
1946810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
2036120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
3550180582S SPRING RET. (SCREW) M56X1 ANO.SPRING RET. (SCREW) M56X1 ANO.
-
3650180327 AH SCREW M5X30 DIN912AH SCREW M5X30 DIN912
-
3750180226 INTERMEDIATE RING 50X1,5INTERMEDIATE RING 50X1,5
-
4091210043 SPRING 62 92-250 D13 TITANLOOKSPRING 62 92-250 D13 TITANLOOK
-
4250180273 CIRCLIP 58,2X2CIRCLIP 58,2X2
-
4350180607S SPRING RETAINER D=80SPRING RETAINER D=80
-
4450180352 O-RING VITON 66,27X3,53O-RING VITON 66,27X3,53
-
4550180141 PISTON ROD NUT M16X1PISTON ROD NUT M16X1
-
4650180099 O-RING VITON 44,17X1,78O-RING VITON 44,17X1,78
-
4750180135 PISTON RING 50-8PISTON RING 50-8
-
4850180037 SHIM 16X23X0,30SHIM 16X23X0,30
-
4850180038 SHIM 16X24X0,30SHIM 16X24X0,30
-
4850180039 SHIM 16X25X0,30SHIM 16X25X0,30
-
4850180040 SHIM 16X26X0,30SHIM 16X26X0,30
-
4850180056 SHIM 16X32X0,20SHIM 16X32X0,20
-
4850180057 SHIM 16X34X0,20SHIM 16X34X0,20
-
4850180063 SHIM 16X28X0,25SHIM 16X28X0,25
-
4850180067 SHIM 16X36X0,25SHIM 16X36X0,25
-
4850180070 SHIM 16X42X0,25SHIM 16X42X0,25
-
4850180072 SHIM 16X28X0,30SHIM 16X28X0,30
-
4850180073 SHIM 16X30X0,30SHIM 16X30X0,30
-
4850180074 SHIM 16X32X0,30SHIM 16X32X0,30
-
4850180075 SHIM 16X34X0,30SHIM 16X34X0,30
-
4850180076 SHIM 16X36X0,30SHIM 16X36X0,30
-
4850180077 SHIM 16X38X0,30SHIM 16X38X0,30
-
4850180078 SHIM 16X40X0,30SHIM 16X40X0,30
-
5750180421 REBOUND DISK D=43/34 H=5REBOUND DISK D=43/34 H=5
-
5850180197 PISTON 6+6X7/4,5PISTON 6+6X7/4,5
-
7050180513 NEEDLE L=171NEEDLE L=171
-
7146811265 O-RING VITON 2,2X1,6O-RING VITON 2,2X1,6
-
7250180435S1 ADAPTOR D50 H29 CPL.ADAPTOR D50 H29 CPL.
-
7350180113 STEEL DISC 18X,5X43,7X6STEEL DISC 18X,5X43,7X6
-
7450180107 REBOUND RUBBERREBOUND RUBBER
-
7550180102 BACKUPRING 22,55X1,5BACKUPRING 22,55X1,5
-
7650180593 SEAL RING QUAD 17.12X2.62 80SHSEAL RING QUAD 17.12X2.62 80SH
-
7950180103 O-RING 41X5O-RING 41X5
-
8046180119 DU-BUSH 18X20X12DU-BUSH 18X20X12
-
8150180082 DUST SEAL 1835DUST SEAL 1835
-
8446180013 O-RING NBR 12X1O-RING NBR 12X1
-
8550180126 CIRCLIP 53X1,75CIRCLIP 53X1,75
-
8650180580 RESERVOIR CAP D=50 SXSRESERVOIR CAP D=50 SXS
-
8750180480 BUMP RUBBER D58 D17 H59 SXSBUMP RUBBER D58 D17 H59 SXS
-
8946180006 ADJUSTING SCREW L=15,5ADJUSTING SCREW L=15,5
-
9050180503S1 FORK PART W/ SPINDLE CPL.FORK PART W/ SPINDLE CPL.
-
9150180462 THR. BUSH M10X1,5 B=1,5 H=7,5THR. BUSH M10X1,5 B=1,5 H=7,5
-
9250180297 RUBBER PLUG D=8RUBBER PLUG D=8
-
9340540603 STEEL BALL D=3MMSTEEL BALL D=3MM
-
9448600028 SPRING D=2,9 L=7,9SPRING D=2,9 L=7,9
-
9546180005 RESERVOIR CAP M16X1RESERVOIR CAP M16X1
-
9650180222 O-RING NBR 4X1,5O-RING NBR 4X1,5
-
9746180016 ADJUSTING ADAPTOR REBOUNDADJUSTING ADAPTOR REBOUND
-
9850180342S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
99R12016 REPAIR KIT SXS + 690 RALLYREPAIR KIT SXS + 690 RALLY
