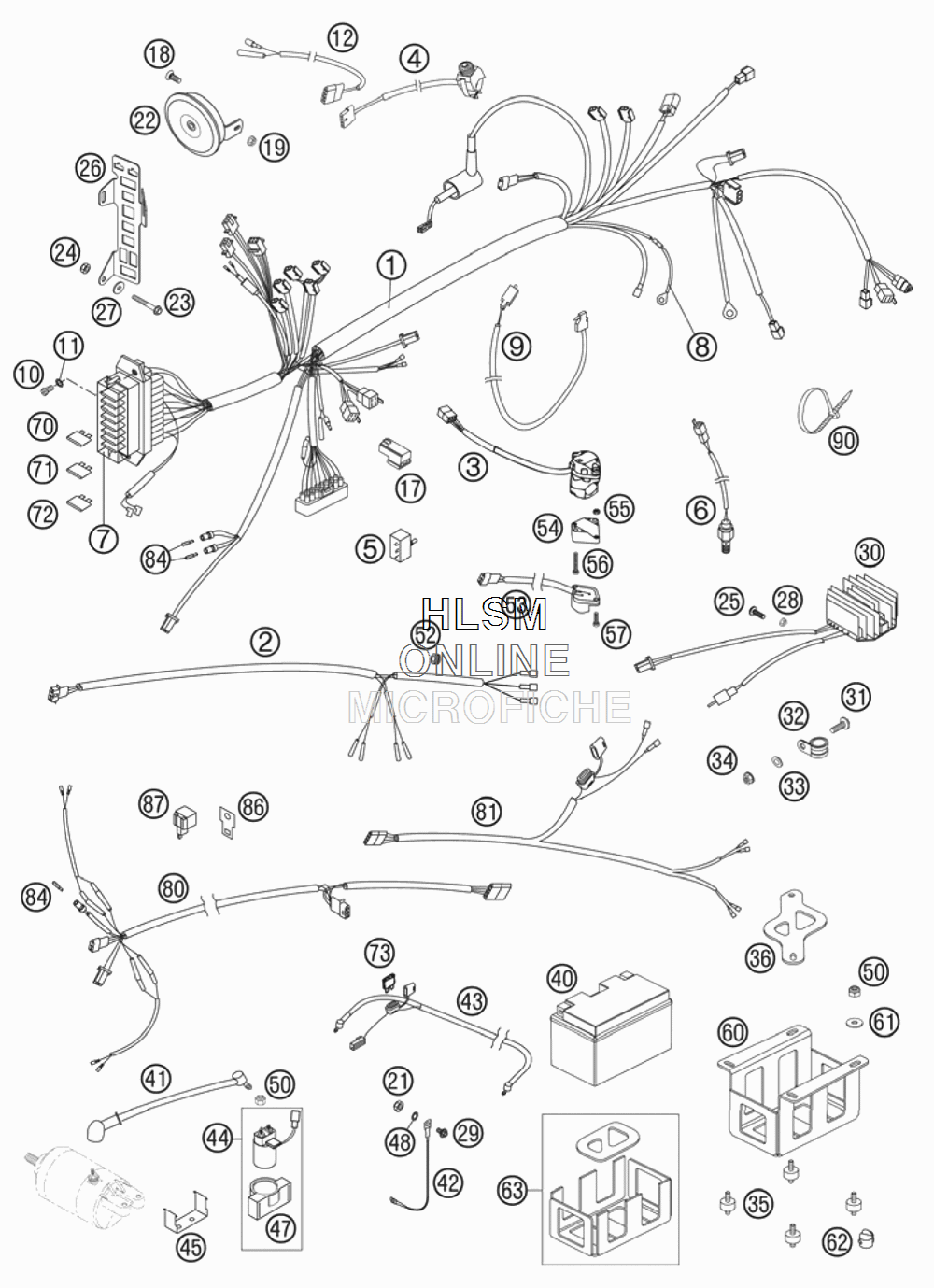

WIRING HARNESS для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    58511075500 MAIN WIRING HARNESS RALLYE
    MAIN WIRING HARNESS RALLYE
  • 2
    58511076100 WIRING HARNESS REAR RALLYE
    WIRING HARNESS REAR RALLYE
  • 3
    50311070000 H.LIGHT SWITCH CEV 2/4TAKT
    H.LIGHT SWITCH CEV 2/4TAKT
  • 4
    50311089200 SHORT CIRCUIT BUTTON STARTER BUTTON
    SHORT CIRCUIT BUTTON STARTER BUTTON
  • 5
    58511069100 SWITCH ON/OFF RALLYE IGNITION ON/OFF
    SWITCH ON/OFF RALLYE IGNITION ON/OFF
  • 6
    58511051100 BRAKE LIGHT SWITCH LONG
    BRAKE LIGHT SWITCH LONG
  • 7
    58511075510 FUSE-BOX COVER
    FUSE-BOX COVER
  • 8
    58511080000 CABLE F. TEMP. SWITCH
    CABLE F. TEMP. SWITCH
  • 9
    50311050100 BRAKE LIGHT SWITCH FRONT
    BRAKE LIGHT SWITCH FRONT
  • 10
    0985050103 OVAL HEAD SCR. DIN7985-M 5X10
    OVAL HEAD SCR. DIN7985-M 5X10
  • 11
    0797050003 TOOTH LOCK WASH. DIN6797-J 5,3
    TOOTH LOCK WASH. DIN6797-J 5,3
  • 12
    58511074050 STARTER BUTTON ADAPTER CABLE
    STARTER BUTTON ADAPTER CABLE
  • 17
    58411057000 STARTER RELAY
    STARTER RELAY
  • 18
    0991060163 FLAT HEAD SCR. DIN7991-M 6X16
    FLAT HEAD SCR. DIN7991-M 6X16
  • 19
    56509064100 SELF LOCKING NUT M6
    SELF LOCKING NUT M6
  • 21
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 22
    50311060000 DC HORN 12V K80/L LEB
    DC HORN 12V K80/L LEB
  • 23
    0931050453 HH SCREW DIN931 M5X45
    HH SCREW DIN931 M5X45
  • 24
    0934050003 HEXAGON NUT DIN0934-M 5
    HEXAGON NUT DIN0934-M 5
  • 25
    0015060203 HH COLLAR SCREW M 6X20
    HH COLLAR SCREW M 6X20
  • 26
    58511083100 BRACKET SOCKETS RALLY
    BRACKET SOCKETS RALLY
  • 27
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 28
    56509064100 SELF LOCKING NUT M6
    SELF LOCKING NUT M6
  • 29
    0015050163 HH COLLAR SCREW M 5X16
    HH COLLAR SCREW M 5X16
  • 30
    58411034100 VOLT.REGULATOR-RECTIFIER 12V
    VOLT.REGULATOR-RECTIFIER 12V
  • 31
    0015050253 HH COLLAR SCREW M 5X25
    HH COLLAR SCREW M 5X25
  • 32
    49007439000 CLAMP RSGU 15/12
    CLAMP RSGU 15/12
  • 33
    0125050003 WASHER DIN0125-A 5,3
    WASHER DIN0125-A 5,3
  • 34
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 35
    0014060103 HH COLLAR SCREW M 6X10
    HH COLLAR SCREW M 6X10
  • 36
    58511054250 BRACKET F. BATTERY BOX
    BRACKET F. BATTERY BOX
  • 40
    58411053100 BATTERY 12V 8,6AH
    BATTERY 12V 8,6AH
  • 41
    58411059200 STARTERCABLE 250MM
    STARTERCABLE 250MM
  • 42
    58411097300 GROUND CABLE 275MM
    GROUND CABLE 275MM
  • 43
    58511059000 BATTERY CABLE 600MM RALLYE
    BATTERY CABLE 600MM RALLYE
  • 44
    58411058000 STARTER RELAY WITH HOLD.RUBBER
    STARTER RELAY WITH HOLD.RUBBER
  • 45
    58511058050 BRACKET FOR STARTRELAIS
    BRACKET FOR STARTRELAIS
  • 47
    58411058050 HOLD. RUBBER FOR STARTRELAY
    HOLD. RUBBER FOR STARTRELAY
  • 48
    58411098100 CONTACT WASHER M6 VSV-K6
    CONTACT WASHER M6 VSV-K6
  • 50
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 52
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 53
    50311029000 FLASHER SWITCH CEV
    FLASHER SWITCH CEV
  • 54
    13011070060 ADAPTER FOR FLASHER SWITCH
    ADAPTER FOR FLASHER SWITCH
  • 55
    0934040003 HEXAGON NUT DIN0934-M 4
    HEXAGON NUT DIN0934-M 4
  • 56
    0084040223 CYL.HEAD SCREW DIN0084-M 4X22A
    CYL.HEAD SCREW DIN0084-M 4X22A
  • 57
    0985040163 FLAT HEAD SCREW DIN7985-M 4X16
    FLAT HEAD SCREW DIN7985-M 4X16
  • 60
    58511054300 BATTERY BOX
    BATTERY BOX
  • 61
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 62
    58111076000 CABLE SUPPORT KHS NR.150-47610
    CABLE SUPPORT KHS NR.150-47610
  • 63
    58511055000 METAMOLLSET BATTERY BOX
    METAMOLLSET BATTERY BOX
  • 70
    58011109105 FUSE 5 A
    FUSE 5 A
  • 71
    58011109110 FUSE 10 A
    FUSE 10 A
  • 72
    58011109115 FUSE 15 A
    FUSE 15 A
  • 73
    58011109120 FUSE 20 A
    FUSE 20 A
  • 80
    50311080100 FLAS.WIRINGHARN. FRONT
    FLAS.WIRINGHARN. FRONT
  • 81
    50311081000 FLAS.WIRINGHARN. REAR
    FLAS.WIRINGHARN. REAR
  • 84
    49111425000 BULB 12V 1,2W (W2X4,6D)
    BULB 12V 1,2W (W2X4,6D)
  • 86
    58211031100 BRACKET FOR FLASHER RELAISE
    BRACKET FOR FLASHER RELAISE
  • 87
    44611207200 FLASHER UNIT
    FLASHER UNIT
  • 90
    44011076100 CABLE TIE 100/2,5MM BLACK
    CABLE TIE 100/2,5MM BLACK
  • 90
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 90
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
