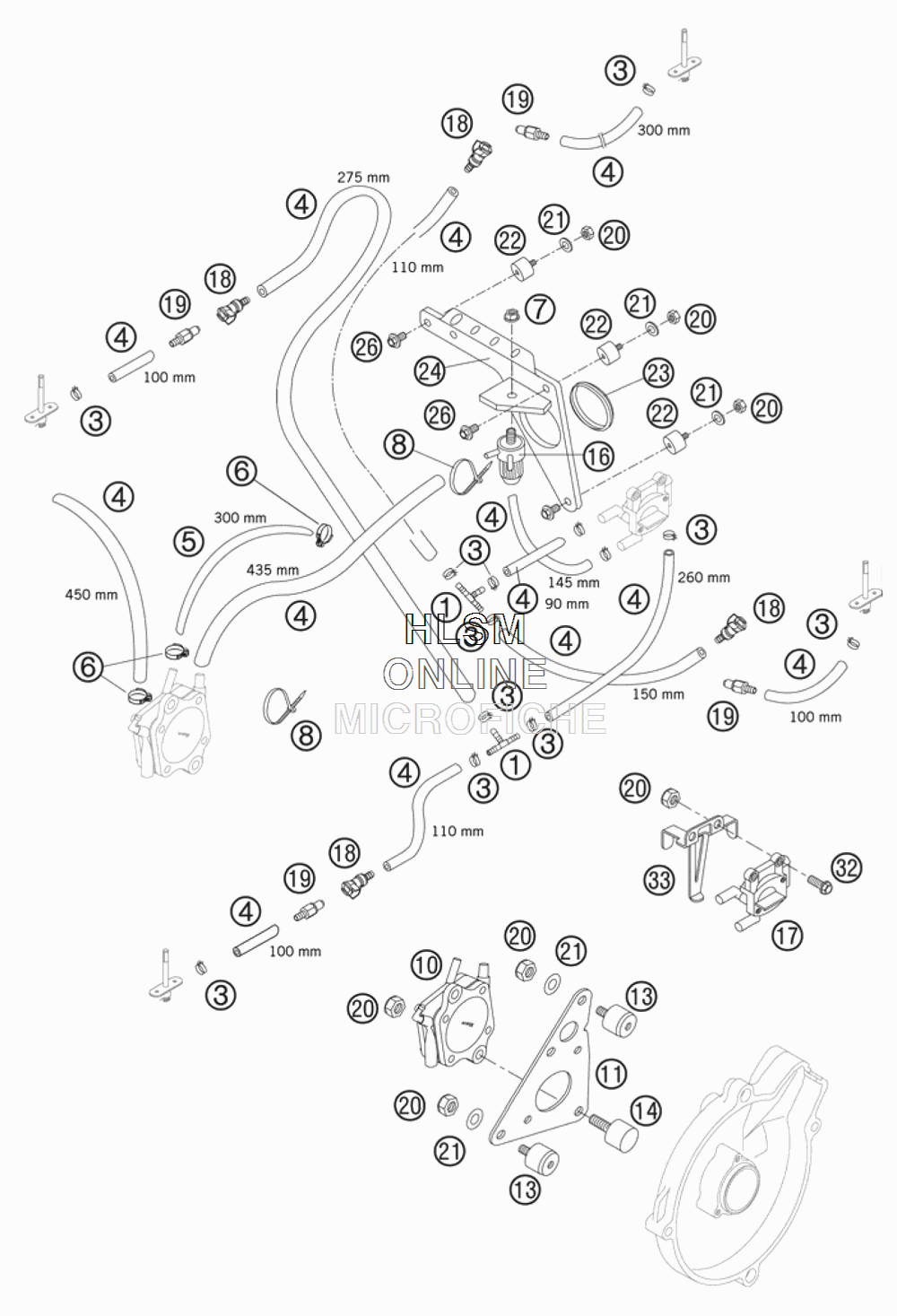

FUEL SYSTEM для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    58007015000 T-CONNECTOR FOR FUEL LINE
    T-CONNECTOR FOR FUEL LINE
  • 3
    58031005000 CLAMP YDNAC 10128 12MM
    CLAMP YDNAC 10128 12MM
  • 4
    58507116100 HOSE OG.ECO 1TBSE 7X13MM
    HOSE OG.ECO 1TBSE 7X13MM
  • 5
    58507016100 FUEL HOSE DIN 73379 5,3X11,3
    FUEL HOSE DIN 73379 5,3X11,3
  • 6
    42013037000 CLAMP MINI 1
    CLAMP MINI 1
  • 7
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 8
    44011076100 CABLE TIE 100/2,5MM BLACK
    CABLE TIE 100/2,5MM BLACK
  • 10
    58512087000 FUEL PUMP MIKUNI DF52-601
    FUEL PUMP MIKUNI DF52-601
  • 11
    58512088000 HOLDING SHEET F. FUEL PUMP
    HOLDING SHEET F. FUEL PUMP
  • 13
    43205062100 RUBBER GROMMET 20X15-M6X10 (1)
    RUBBER GROMMET 20X15-M6X10 (1)
  • 14
    58538010000 RUBBER GROMMET 20X11/M6X18
    RUBBER GROMMET 20X11/M6X18
  • 16
    58507009000 FUEL FILTER
    FUEL FILTER
  • 17
    58507003100 COLLECTOR FUEL TAP RALLYE
    COLLECTOR FUEL TAP RALLYE
  • 18
    58507010500 CLUTCH F. FUEL HOSE CPC
    CLUTCH F. FUEL HOSE CPC
  • 19
    58507010300 PLUG F. FUEL HOSE CPC
    PLUG F. FUEL HOSE CPC
  • 20
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 21
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 22
    43205062100 RUBBER GROMMET 20X15-M6X10 (1)
    RUBBER GROMMET 20X15-M6X10 (1)
  • 23
    54635022000 SLEEVE FOR STEERING HEAD
    SLEEVE FOR STEERING HEAD
  • 24
    58507019000 SUPPORT FOR FUEL FILTER
    SUPPORT FOR FUEL FILTER
  • 26
    0014060103 HH COLLAR SCREW M 6X10
    HH COLLAR SCREW M 6X10
  • 32
    0015060163 HH COLLAR SCREW M 6X16
    HH COLLAR SCREW M 6X16
  • 33
    58507003050 LOCKING PLATE F. COLL.FUEL TAP
    LOCKING PLATE F. COLL.FUEL TAP
