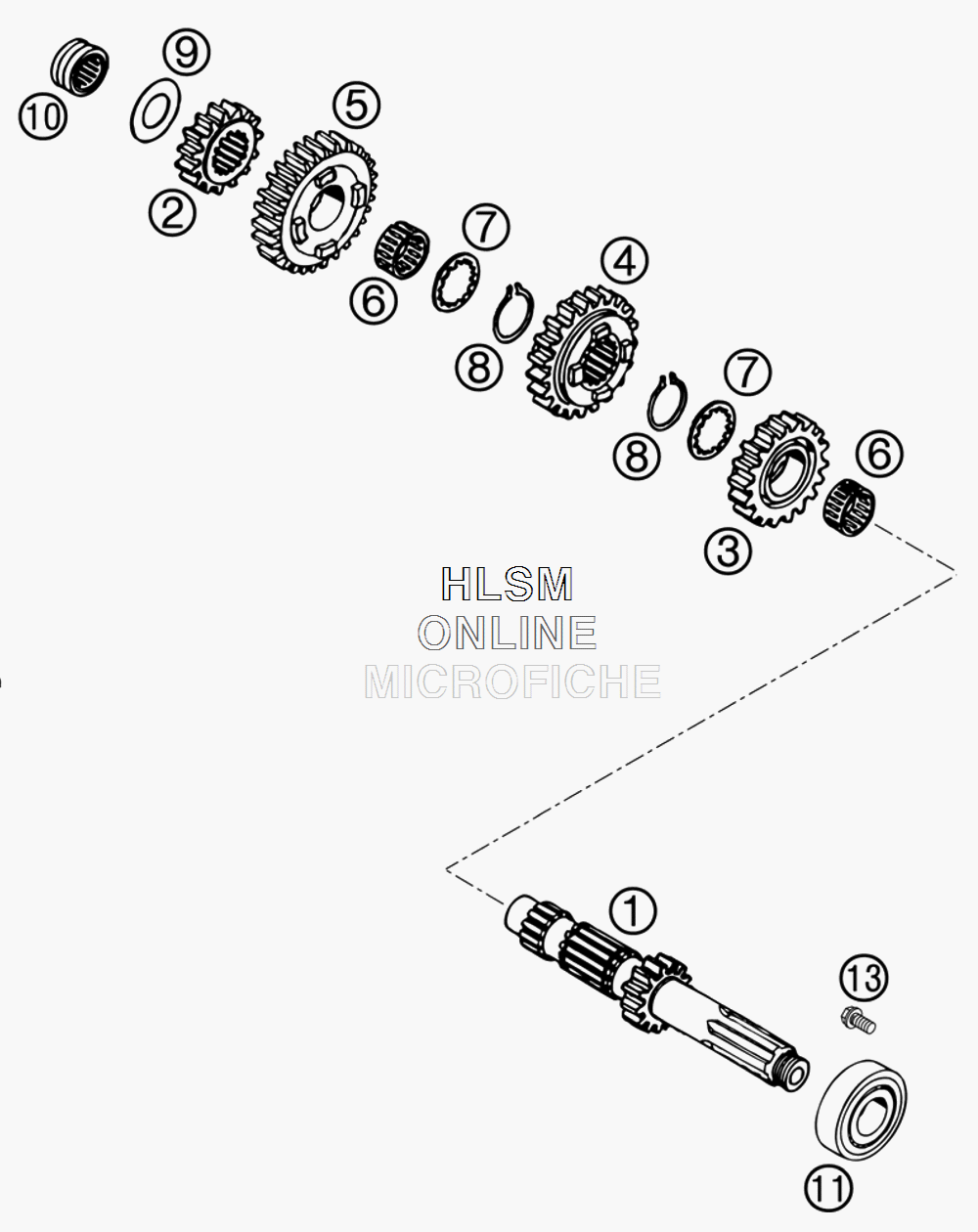

TRANSMISSION I - MAIN SHAFT для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    58333002000 MAIN SHAFT 15T
    MAIN SHAFT 15T
  • 2
    56533010300 SOLID GEAR 2.G 15-T (2G3)
    SOLID GEAR 2.G 15-T (2G3)
  • 3
    58333004002 IDLER GEAR 3.G 18-T "02"
    IDLER GEAR 3.G 18-T "02"
  • 4
    58333006004 SLIDING GEAR 4.G 20-T "04"
    SLIDING GEAR 4.G 20-T "04"
  • 5
    58333008008 IDLER GEAR 5.G 22-T "08"
    IDLER GEAR 5.G 22-T "08"
  • 6
    58533021000 NEEDLE BEAR. K22X26X13 DIVIDED
    NEEDLE BEAR. K22X26X13 DIVIDED
  • 7
    56533016300 STOP DISK 22,7 X 32 X 1,5
    STOP DISK 22,7 X 32 X 1,5
  • 8
    52033096000 LOCK RING DIN0471-25X1,64SD
    LOCK RING DIN0471-25X1,64SD
  • 9
    56533015000 STOP DISK 20,2 X 35 X 1
    STOP DISK 20,2 X 35 X 1
  • 10
    56533093000 NEEDLE BEARING RNA 4902 KSE
    NEEDLE BEARING RNA 4902 KSE
  • 11
    58533025000 CYL.ROLL BEARING BC1-0076A
    CYL.ROLL BEARING BC1-0076A
  • 13
    0015060123 HH COLLAR SCREW M 6X12
    HH COLLAR SCREW M 6X12
