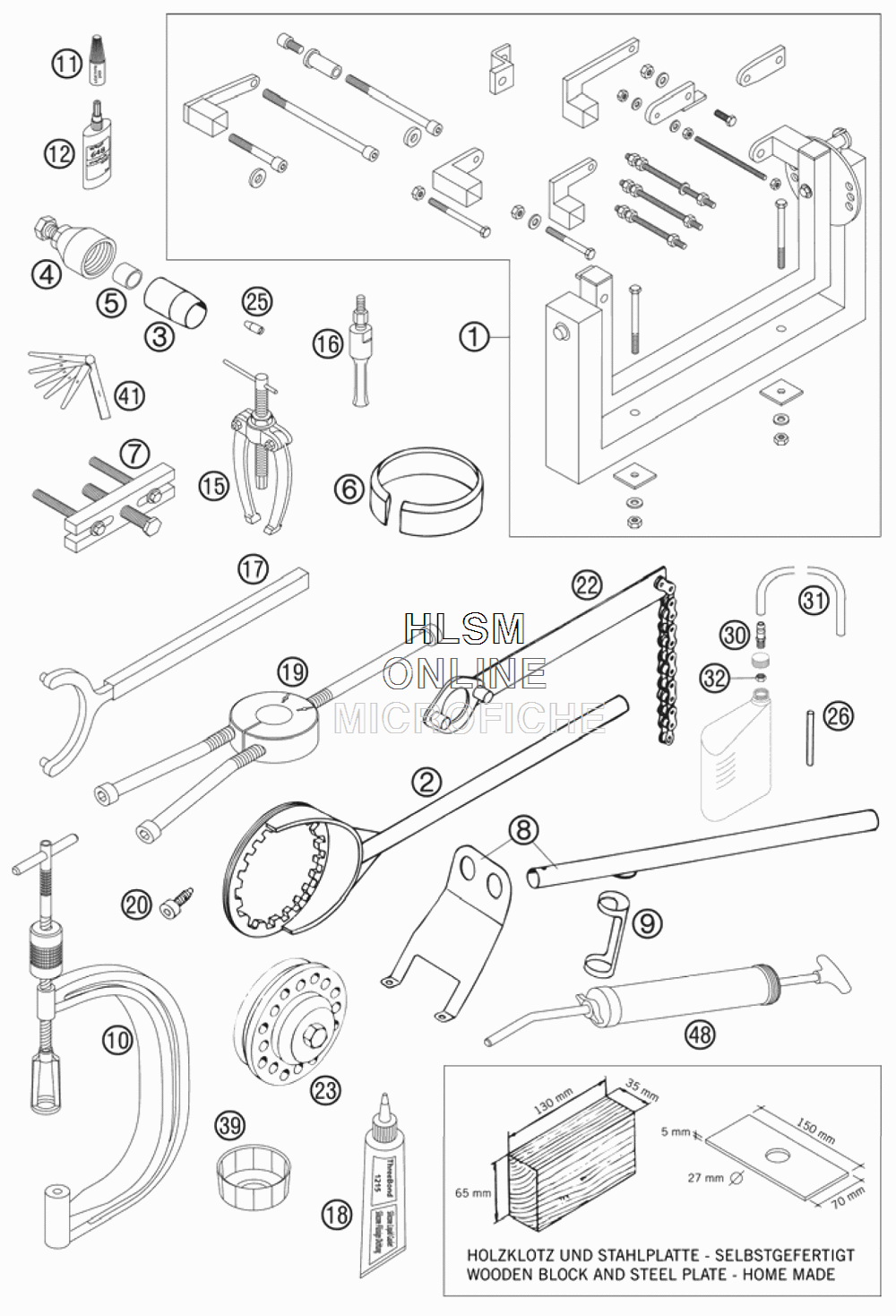

SPECIAL TOOLS для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска
-
№АртикулНазвание
-
156012001044 UNIVERSAL MOUNTING RACK CPL.UNIVERSAL MOUNTING RACK CPL.
-
258329003000 CLUTCH HOLDER D=160MM LC4CLUTCH HOLDER D=160MM LC4
-
358012005025 MOUNTING SLEEVE D=25MM FOR CRANKSHAFT SEAL L/SMOUNTING SLEEVE D=25MM FOR CRANKSHAFT SEAL L/S
-
458429009000 MAGNETO EXTRACTORMAGNETO EXTRACTOR
-
558429031000 PROTECTOR CAP F.CRANKSHAFT M16PROTECTOR CAP F.CRANKSHAFT M16
-
658529015102 PISTON RING COMPRESSOR D=102MM 660 LC4PISTON RING COMPRESSOR D=102MM 660 LC4
-
759029021044 EXTRACTOR PRIM. GEAR CPL. FOR INNER CLUTCH HUBEXTRACTOR PRIM. GEAR CPL. FOR INNER CLUTCH HUB
-
858012019000 VALVE INSTALLATION KITVALVE INSTALLATION KIT
-
96276470 PUSH INSERTPUSH INSERT
-
1059029019000 VALVE SPRING LEVERVALVE SPRING LEVER
-
116899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
-
1258429059000 LOCTITE 648 GREEN 24MLLOCTITE 648 GREEN 24ML
-
1515112017000 BUSHING EXTRACTORBUSHING EXTRACTOR
-
1615112018000 INTERN.BEAR.PULLER 12-16 MMINTERN.BEAR.PULLER 12-16 MM
-
1615112018100 INTERN.BEAR.PULLER 18-23 MMINTERN.BEAR.PULLER 18-23 MM
-
1758429012000 HOLDING WRENCH FOR WHEELHOLDING WRENCH FOR WHEEL
-
18309098 SILICON GASKET THREE-BONDSILICON GASKET THREE-BOND
-
1958429037040 MOUNTING TOOL F.BEARING NJ 306MOUNTING TOOL F.BEARING NJ 306
-
1958429037043 MOUNTING TOOL F.BEARING NJ 207MOUNTING TOOL F.BEARING NJ 207
-
2058030080000 LOCATING SCREW M8 L=23LOCATING SCREW M8 L=23
-
2251012012000 HOLDING SPANNER FOR SPROCKETHOLDING SPANNER FOR SPROCKET
-
2354629027000 RIVETTING TOOL FOR CLUTCHRIVETTING TOOL FOR CLUTCH
-
2558529005000 MOUNT.SLEEVE F. SH.S.RING WAPUMOUNT.SLEEVE F. SH.S.RING WAPU
-
2658029026007 LIMIT PLUG GAUGE F.VALVE GUIDE D=7,05 MMLIMIT PLUG GAUGE F.VALVE GUIDE D=7,05 MM
-
3059030022000 BLEEDER FLANGE M8 WS=10BLEEDER FLANGE M8 WS=10
-
3131007107001 PVC-HOSE 6X9 MM PER METERPVC-HOSE 6X9 MM PER METER
-
320934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
3958329039000 WRENCH SCREW FILTERWRENCH SCREW FILTER
-
4159029041000 FEEL. GAUGE SET 10,12,15,20,25FEEL. GAUGE SET 10,12,15,20,25
-
4858429048000 INJEKTION FOR FRONT PIPE DEAERATE FOR FRONT PIPEINJEKTION FOR FRONT PIPE DEAERATE FOR FRONT PIPE
