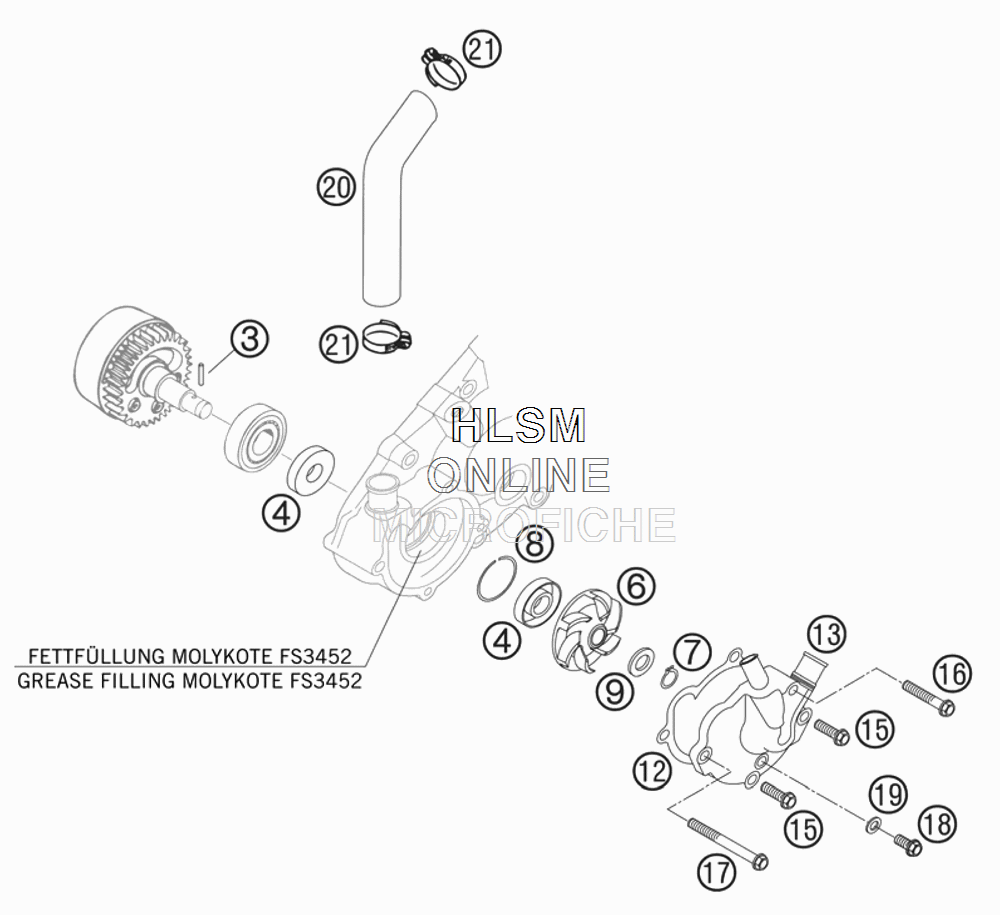

WATER PUMP для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска
-
№АртикулНазвание
-
30402031780 NEEDLE ROL.DIN5402 NRB 3X17,8NEEDLE ROL.DIN5402 NRB 3X17,8
-
40760123070 SHAFT SEAL RING 12X30X7SHAFT SEAL RING 12X30X7
-
658535055100 WATER PUMP WHEELWATER PUMP WHEEL
-
70471100011 CIRCLIP DIN0471-10X1CIRCLIP DIN0471-10X1
-
80472030012 CIRCLIP DIN0472-30X1,2CIRCLIP DIN0472-30X1,2
-
958535057000 WASHER 10X16X1 A2 (NIRO)WASHER 10X16X1 A2 (NIRO)
-
1258535053000 WATER PUMP COVER GASKETWATER PUMP COVER GASKET
-
1358535052144 WATER PUMP COVER CPL. SPWATER PUMP COVER CPL. SP
-
150015060203 HH COLLAR SCREW M 6X20HH COLLAR SCREW M 6X20
-
160015060353 HH COLLAR SCREW M 6X35HH COLLAR SCREW M 6X35
-
170015060603 HH COLLAR SCREW M 6X60HH COLLAR SCREW M 6X60
-
180015060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
1958036065100 CU-SEAL RING 6 X 10 X 2CU-SEAL RING 6 X 10 X 2
-
2058535020001 PREFORMED H. 18X25 WAPU-CYL.PREFORMED H. 18X25 WAPU-CYL.
-
2110001020000 HOSE CLAMP GEMI 16-27HOSE CLAMP GEMI 16-27
