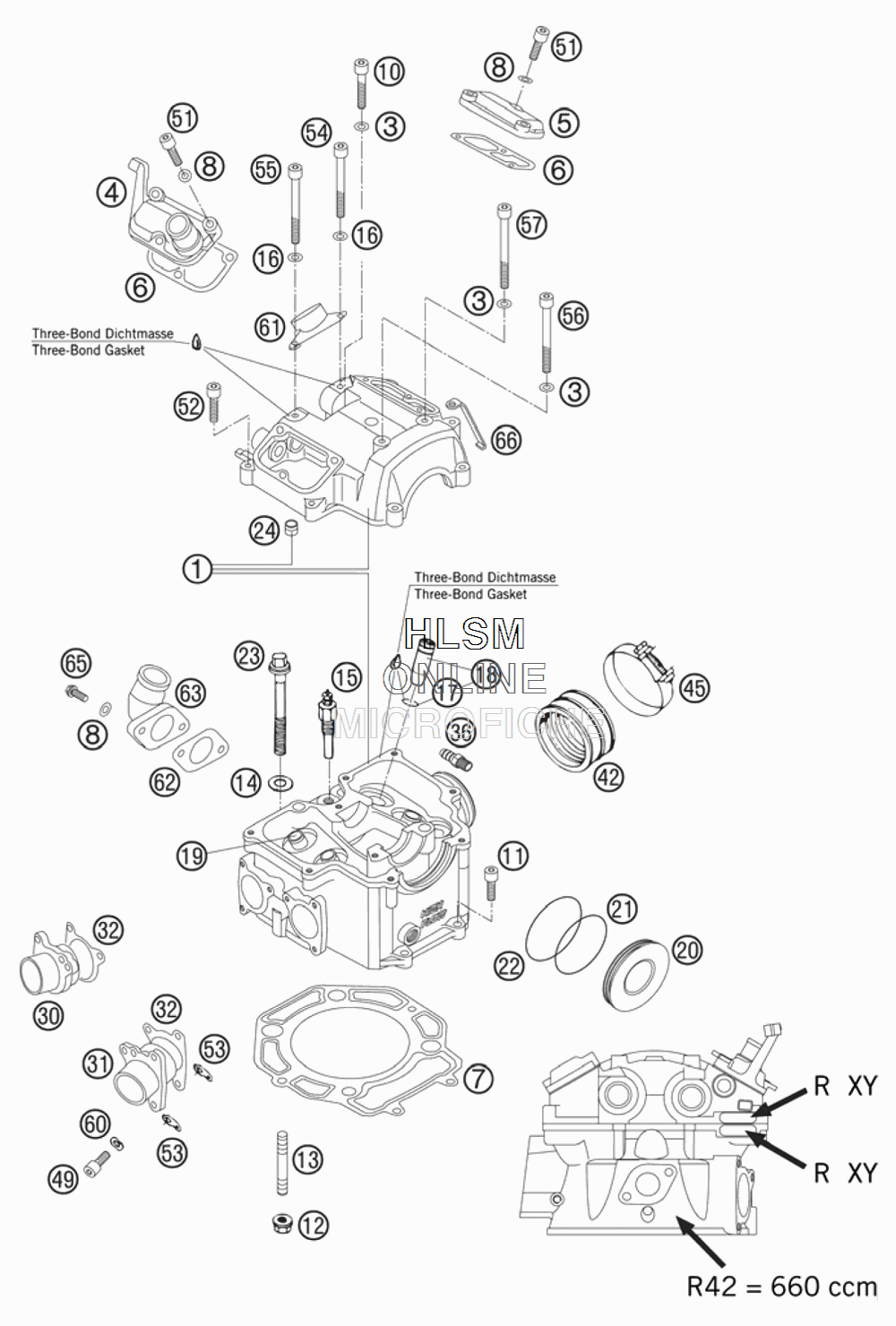

CYLINDER HEAD для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    5853602030023 CYLINDERHEAD CPL. GREY
    CYLINDERHEAD CPL. GREY
  • 3
    58036065100 CU-SEAL RING 6 X 10 X 2
    CU-SEAL RING 6 X 10 X 2
  • 4
    58036152600 VALVE COVER FRONT
    VALVE COVER FRONT
  • 5
    58036052200 VALVE COVER REAR
    VALVE COVER REAR
  • 6
    58036053000 VALVE COVER GASKET
    VALVE COVER GASKET
  • 7
    58530036100 CYLINDER HEAD GASKET D=102
    CYLINDER HEAD GASKET D=102
  • 8
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 10
    0912060353 AH SCREW DIN0912-M 6X35
    AH SCREW DIN0912-M 6X35
  • 11
    0912060253 AH SCREW DIN0912-M 6X25
    AH SCREW DIN0912-M 6X25
  • 12
    49030028000 COLLAR NUT M8
    COLLAR NUT M8
  • 13
    54330043000 STUD DIN0835-M 8X40
    STUD DIN0835-M 8X40
  • 14
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 15
    42011252000 TEMPEMPERATURE SWITCH VDO
    TEMPEMPERATURE SWITCH VDO
  • 16
    0603070122 CU-SEAL RING DIN7603- 7X12X2
    CU-SEAL RING DIN7603- 7X12X2
  • 17
    0993012000 CIRCLIP DIN7993-RW12
    CIRCLIP DIN7993-RW12
  • 18
    58036026644 VALVE GUIDE INTAKE CPL.
    VALVE GUIDE INTAKE CPL.
  • 19
    58036126644 VALVE GUIDE EXHAUST CPL.
    VALVE GUIDE EXHAUST CPL.
  • 20
    58536065000 PLUG COVER
    PLUG COVER
  • 21
    0770047015 O-RING 47,00X1,50 NBR 70
    O-RING 47,00X1,50 NBR 70
  • 22
    0770049025 O-RING 49,00X2,50 NBR
    O-RING 49,00X2,50 NBR
  • 23
    58036099100 COLLAR SCREW M10X80 WS=13 10.9
    COLLAR SCREW M10X80 WS=13 10.9
  • 24
    58530090000 DOWEL BUSHING 9,8X7,2X10 NOTCH, MARKING
    DOWEL BUSHING 9,8X7,2X10 NOTCH, MARKING
  • 30
    58536040000 EXHAUST FLANGE R/S RALLYE
    EXHAUST FLANGE R/S RALLYE
  • 31
    58536140000 EXHAUST FLANGE L/S RALLYE
    EXHAUST FLANGE L/S RALLYE
  • 32
    58036041000 EXHAUST FLANGE GASKET
    EXHAUST FLANGE GASKET
  • 36
    58336020090 VACUUM CONNECTION M 6X1
    VACUUM CONNECTION M 6X1
  • 42
    58536044000 INTAKE BOOT RALLYE 2001
    INTAKE BOOT RALLYE 2001
  • 45
    59030061000 CLAMP D=56MM B=9MM M4X25
    CLAMP D=56MM B=9MM M4X25
  • 49
    0912060163 AH SCREW DIN0912-M 6X16
    AH SCREW DIN0912-M 6X16
  • 51
    0912060203 AH SCREW DIN0912-M 6X20
    AH SCREW DIN0912-M 6X20
  • 52
    0912060253 AH SCREW DIN0912-M 6X25
    AH SCREW DIN0912-M 6X25
  • 53
    51005074000 RETAINING PLATE
    RETAINING PLATE
  • 54
    0912070551 AH SCREW DIN0912-M 7X55 12.9
    AH SCREW DIN0912-M 7X55 12.9
  • 55
    0912070601 AH SCREW DIN0912-M 7X60 12.9
    AH SCREW DIN0912-M 7X60 12.9
  • 56
    0912060653 AH SCREW DIN0912-M 6X65
    AH SCREW DIN0912-M 6X65
  • 57
    0912060703 AH SCREW DIN0912-M 6X70
    AH SCREW DIN0912-M 6X70
  • 60
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 61
    58539010000 STICK COIL HOLDER 2001
    STICK COIL HOLDER 2001
  • 62
    56535106000 GASKET FOR CONNECTING ANGLE
    GASKET FOR CONNECTING ANGLE
  • 63
    56535006000 CONNECTING ANGLE
    CONNECTING ANGLE
  • 65
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 66
    58530005050 RETAINING PLATE
    RETAINING PLATE
