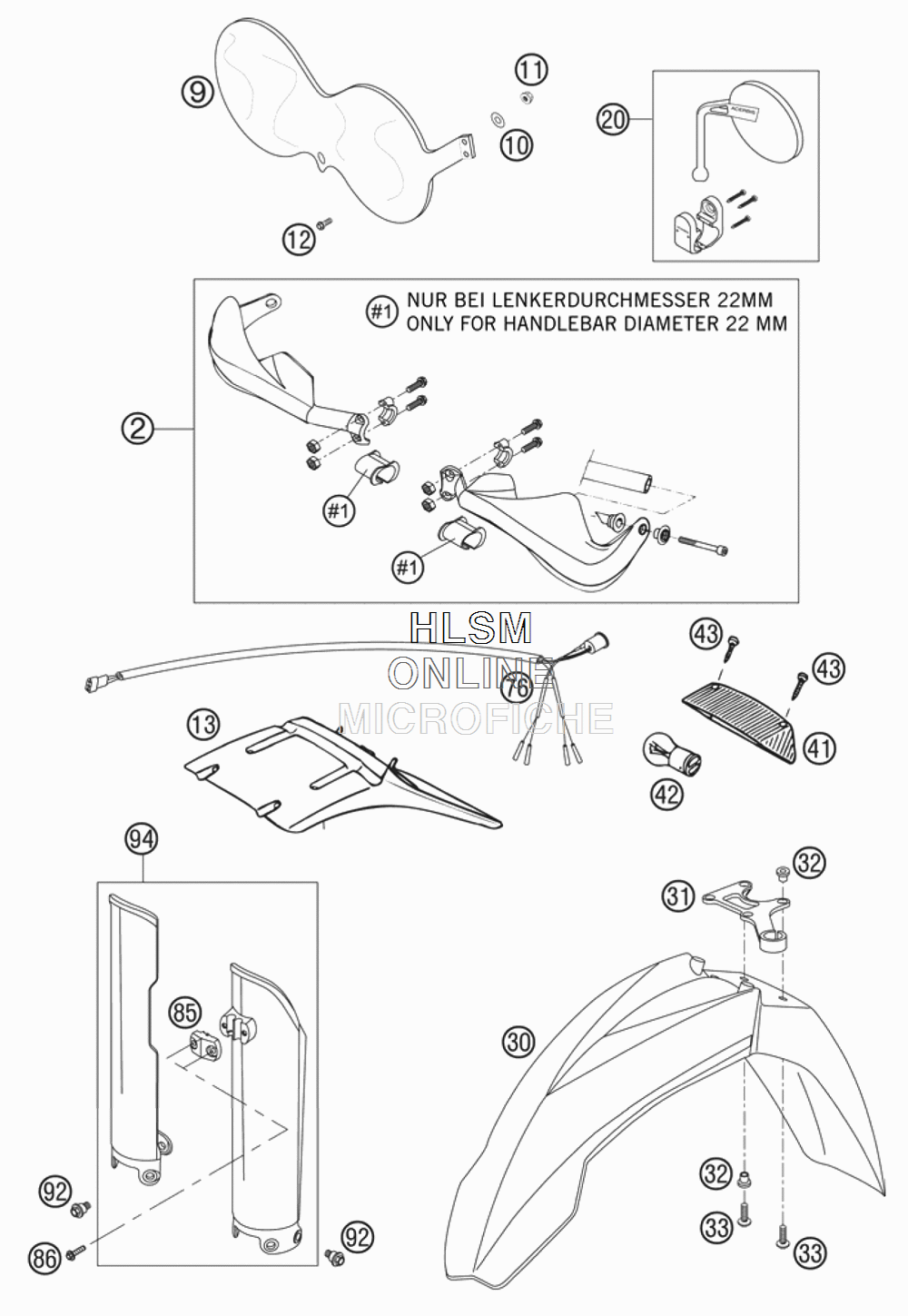

ATTACHMENT PARTS для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска

  • №
    Артикул
    Название
  • 2
    6000207910004 HANDGUARD L/S+R/S CPL.ORANGE
    HANDGUARD L/S+R/S CPL.ORANGE
  • 2
    6000207910030 HANDGUARD L/S+R/S CPL.BLACK
    HANDGUARD L/S+R/S CPL.BLACK
  • 9
    58511009000 HEAD LIGHT PROTECTOR RALLYE
    HEAD LIGHT PROTECTOR RALLYE
  • 10
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 11
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 12
    0933050163 HH SCREW DIN0933-M 5X16
    HH SCREW DIN0933-M 5X16
  • 13
    58308113051 NUMBER PLATE CARRIER EXC
    NUMBER PLATE CARRIER EXC
  • 20
    5021204000030 MIRROR L/S BLACK ACERBIS
    MIRROR L/S BLACK ACERBIS
  • 20
    5021214000030 MIRROR R/S BLACK ACERBIS
    MIRROR R/S BLACK ACERBIS
  • 30
    5030801030030 FENDER FRONT BROAD BLACK
    FENDER FRONT BROAD BLACK
  • 31
    59008019000 BRAKE HOSE GUIDE
    BRAKE HOSE GUIDE
  • 32
    58408009050 SPACER BUSHING FRONT FENDER
    SPACER BUSHING FRONT FENDER
  • 33
    0014060203 HH COLLAR SCREW M 6X20
    HH COLLAR SCREW M 6X20
  • 41
    58311241000 REAR LIGHT LENS ACERBIS
    REAR LIGHT LENS ACERBIS
  • 42
    58414042000 BULB 12V 21/5W (BAY15S)REINFO.
    BULB 12V 21/5W (BAY15S)REINFO.
  • 43
    0981290193 SHEET MET.SCR.DIN7981 2,9X19
    SHEET MET.SCR.DIN7981 2,9X19
  • 76
    58511076000 WIRING HARNESS REAR RALLYE
    WIRING HARNESS REAR RALLYE
  • 85
    58201085000 CLAMP F.SPEED CABLE D=8MM
    CLAMP F.SPEED CABLE D=8MM
  • 86
    0017060203 EJOT PT SCREW K60X20
    EJOT PT SCREW K60X20
  • 92
    59001092050 SPECIAL SCREW M6X12,5
    SPECIAL SCREW M6X12,5
  • 94
    5900109400030 FORK PROTECT. L/S+R/S BLACK
    FORK PROTECT. L/S+R/S BLACK
