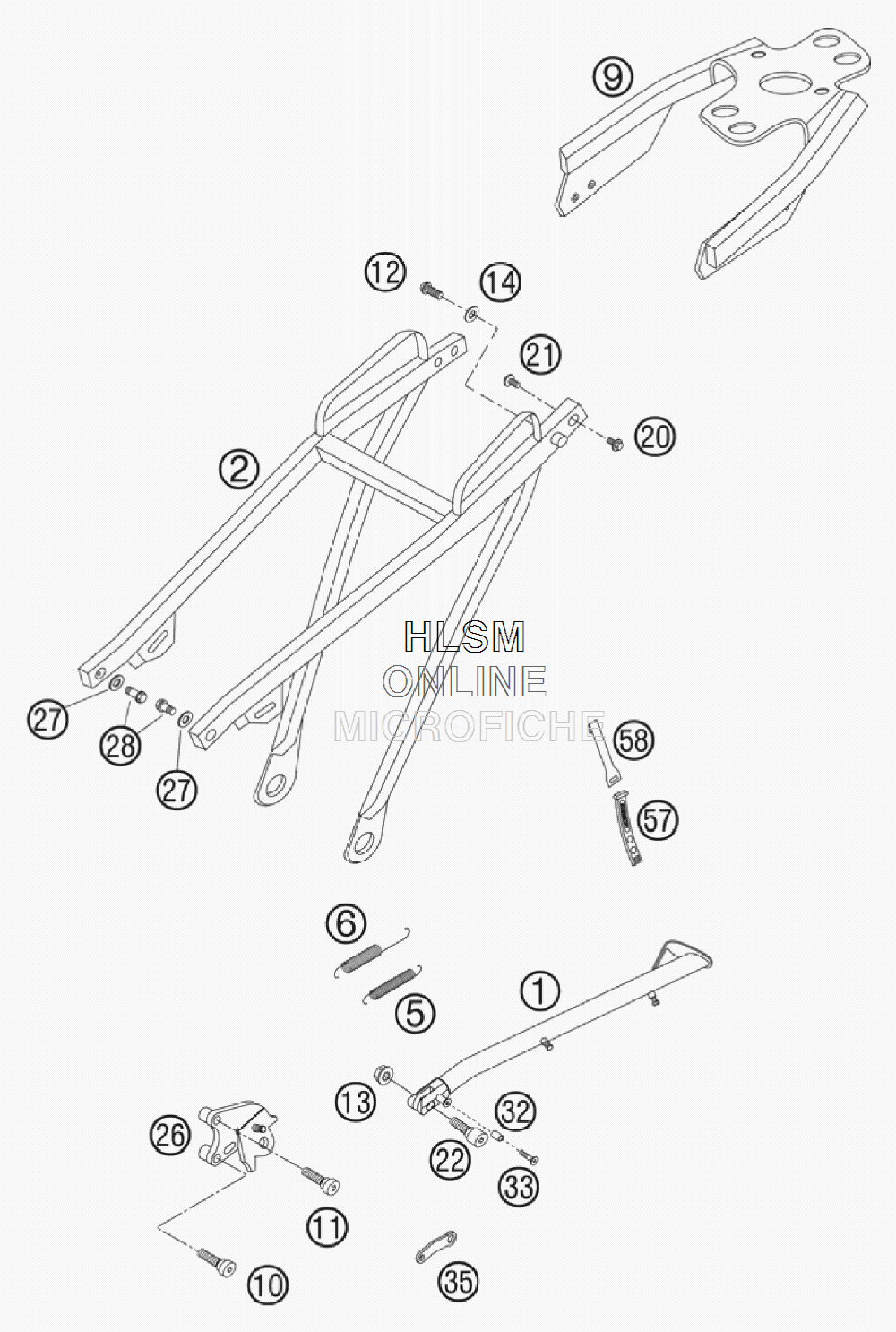

SUB FRAME для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    58503023300 SIDE STAND CPL.
    SIDE STAND CPL.
  • 2
    58503002300 SUB FRAME STEEL RALLY
    SUB FRAME STEEL RALLY
  • 5
    58403030000 SIDE STAND SPRING D=7,7MM
    SIDE STAND SPRING D=7,7MM
  • 6
    51003021000 SIDESTAND SPRING LONG
    SIDESTAND SPRING LONG
  • 9
    58503002340 SUB FRAME EXTENSION
    SUB FRAME EXTENSION
  • 10
    0984100356 AH SCREW DIN7984 M10X35
    AH SCREW DIN7984 M10X35
  • 11
    0984100456 AH SCREW DIN6912 M10X45
    AH SCREW DIN6912 M10X45
  • 12
    54610052000 SPROCKET SCREW-AH M8X20 WS=6
    SPROCKET SCREW-AH M8X20 WS=6
  • 13
    0985100003 SELF LOCKING NUT DIN0985-M10
    SELF LOCKING NUT DIN0985-M10
  • 14
    58303061000 SPECIAL WASHER ALU 8 X 24 MM
    SPECIAL WASHER ALU 8 X 24 MM
  • 20
    0014060103 HH COLLAR SCREW M 6X10
    HH COLLAR SCREW M 6X10
  • 21
    0014060153 HH COLLAR SCREW M 6X15
    HH COLLAR SCREW M 6X15
  • 22
    58503023060 STAND SCREW
    STAND SCREW
  • 26
    58503026350 SIDE STAND BRACKET CPL.
    SIDE STAND BRACKET CPL.
  • 27
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 28
    58503002001 HH COLLAR SCREW S.FRAME RAL.
    HH COLLAR SCREW S.FRAME RAL.
  • 32
    59036001050 SPACER BUSHING 6,1X8,2X13,1
    SPACER BUSHING 6,1X8,2X13,1
  • 33
    58503023070 FLAT HEAD SCREW M6X23 8.8
    FLAT HEAD SCREW M6X23 8.8
  • 35
    76203080000 BELL CRANK SIDE STAND
    BELL CRANK SIDE STAND
  • 57
    54611186000 RUBBER BAND
    RUBBER BAND
  • 58
    58503023170 SIDE STAND RUBBER-RET.PANEL
    SIDE STAND RUBBER-RET.PANEL
