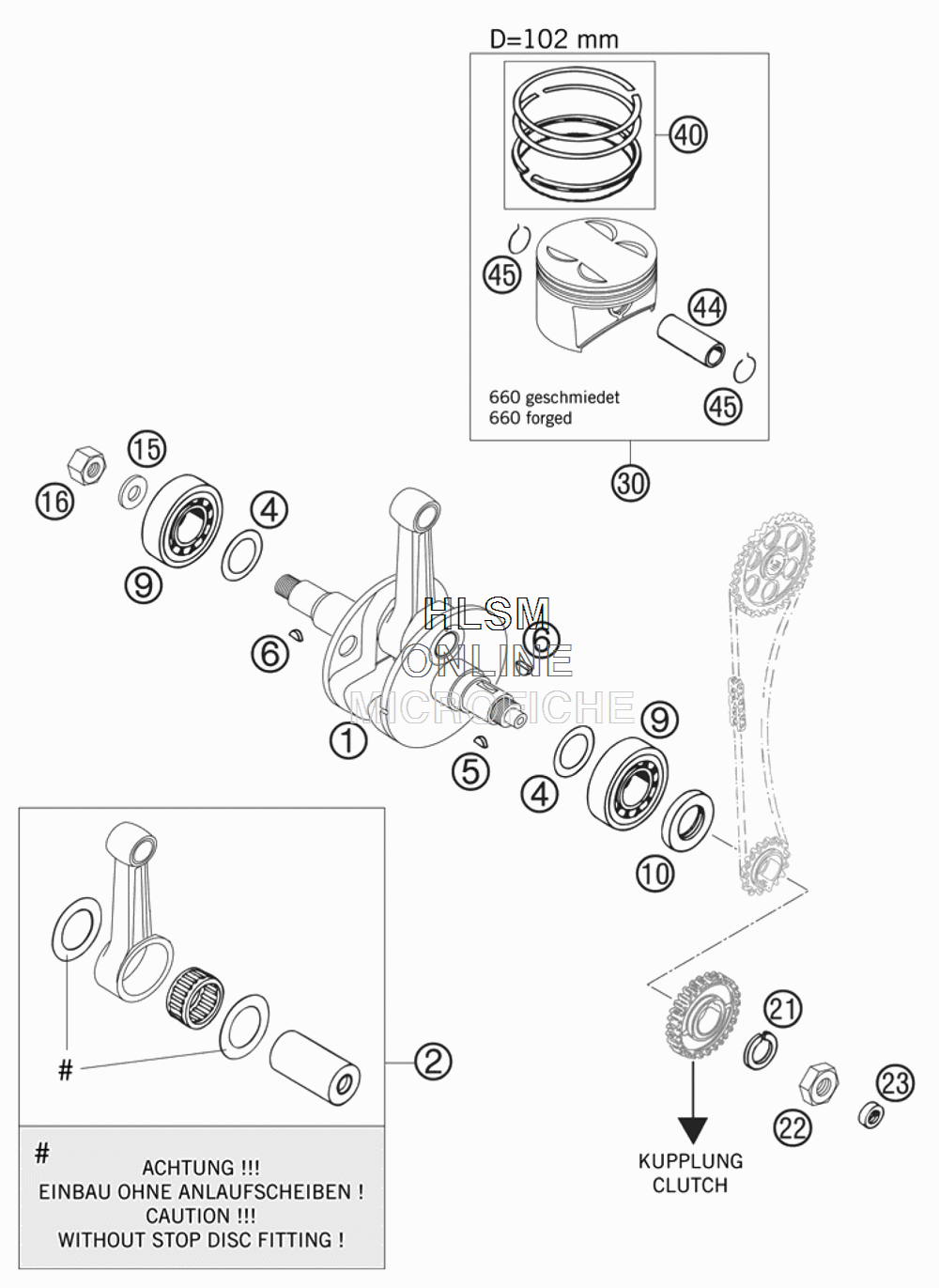

CRANKSHAFT PISTON для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    58530018300 CRANKSHAFT CPL. RALLYE HUB 80MM
    CRANKSHAFT CPL. RALLYE HUB 80MM
  • 2
    58530015144 CONNECT. ROD REPAIR SET LC4 640/660 CCM L=141,5MM
    CONNECT. ROD REPAIR SET LC4 640/660 CCM L=141,5MM
  • 4
    56530081000 SHIM WASHER 36X48X0,10
    SHIM WASHER 36X48X0,10
  • 4
    56530081100 SHIM WASHER 36X48X0,15
    SHIM WASHER 36X48X0,15
  • 4
    56530081300 SHIM WASHER 36X48X0,30
    SHIM WASHER 36X48X0,30
  • 5
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 6
    6946005 WOODRUFF KEY 5X6,5 HARDED
    WOODRUFF KEY 5X6,5 HARDED
  • 9
    56530123000 CYL.ROLLER BEAR. NJ 207 ECP C3
    CYL.ROLLER BEAR. NJ 207 ECP C3
  • 10
    0760304071 SHAFT SEAL RING 30X40X7 BSL
    SHAFT SEAL RING 30X40X7 BSL
  • 15
    58330095000 STEEL WASHER 16 X 30 X 3
    STEEL WASHER 16 X 30 X 3
  • 16
    58430028000 HEX NUT M16X1,25 L/S
    HEX NUT M16X1,25 L/S
  • 21
    58030019000 LOCKING RING VSK 20
    LOCKING RING VSK 20
  • 22
    0936200155 HEXAGON NUT DIN0936-M20X1,5
    HEXAGON NUT DIN0936-M20X1,5
  • 23
    0760122270 SHAFT SEAL RING 12 X 22 X 7 B
    SHAFT SEAL RING 12 X 22 X 7 B
  • 30
    58530007300I PISTON I CPL. D=102MM
    PISTON I CPL. D=102MM
  • 30
    58530007300II PISTON II CPL. D=102MM
    PISTON II CPL. D=102MM
  • 40
    58530031144 PISTONRING SET ELKO 660 RALLYE
    PISTONRING SET ELKO 660 RALLYE
  • 44
    58330833000 PISTON PIN 22 X 13 X 60
    PISTON PIN 22 X 13 X 60
  • 45
    58430074000 CIRCLIP 22 X 1,6
    CIRCLIP 22 X 1,6
