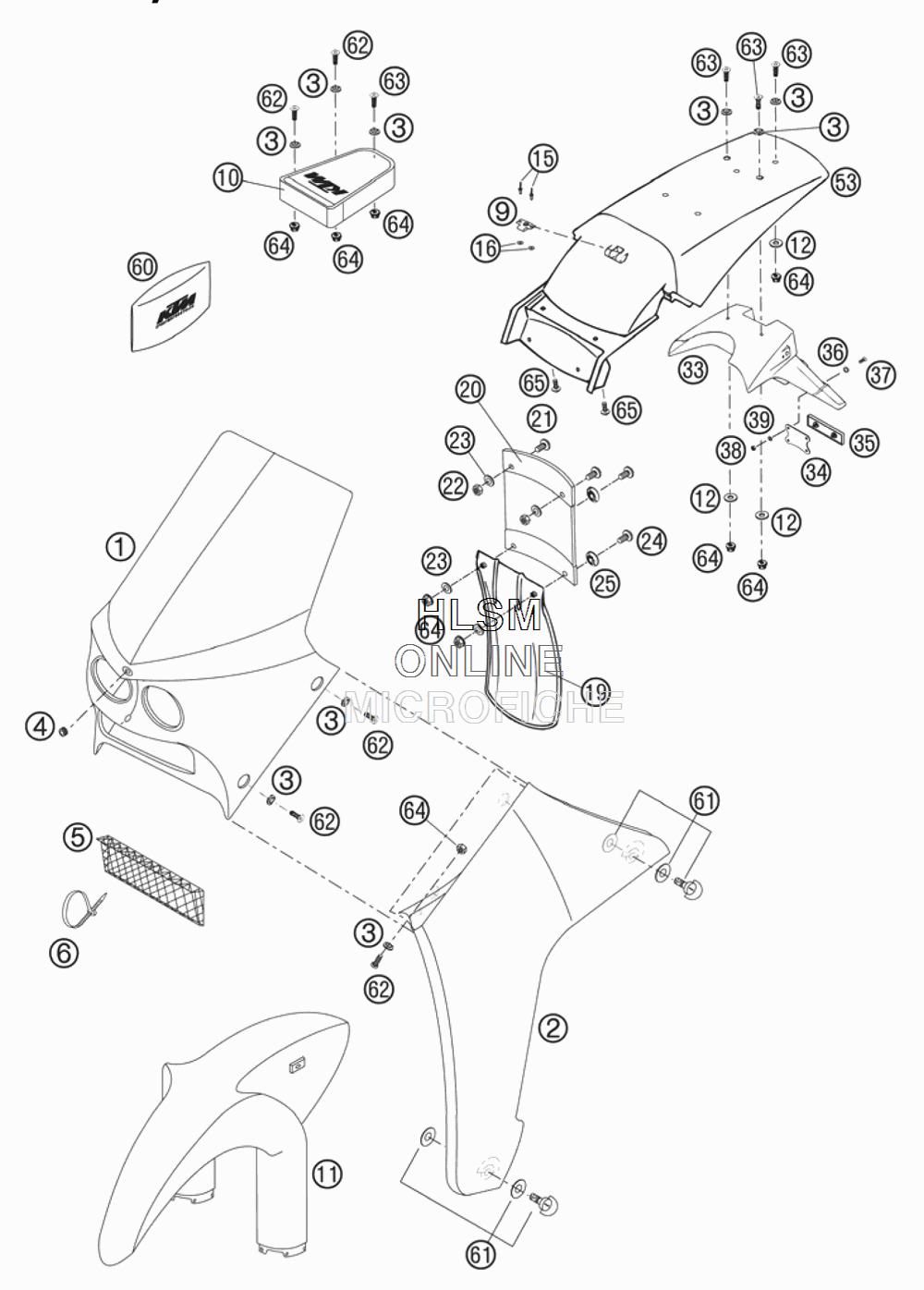

MASK FENDERS для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    5851100410004 COVER MIDDLE CPL.
    COVER MIDDLE CPL.
  • 2
    5851100210004 COVER R/S CPL.
    COVER R/S CPL.
  • 2
    5851100310004 COVER L/S CPL.
    COVER L/S CPL.
  • 3
    58308045000 SPECIAL WASHER 7X12,5X20 BLACK
    SPECIAL WASHER 7X12,5X20 BLACK
  • 4
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 5
    58512060000 OIL RADIATOR GRID RALLYE
    OIL RADIATOR GRID RALLYE
  • 6
    44011076100 CABLE TIE 100/2,5MM BLACK
    CABLE TIE 100/2,5MM BLACK
  • 6
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 9
    58307042051 THRUST BEARING QUICK RELEASE
    THRUST BEARING QUICK RELEASE
  • 10
    58312078000 TOOL BAG BLACK
    TOOL BAG BLACK
  • 11
    5850801010030 FENDER FRONT RALLYE BLACK
    FENDER FRONT RALLYE BLACK
  • 12
    51006097000 WASHER 6,2X22X1,ST30,W.GALV.
    WASHER 6,2X22X1,ST30,W.GALV.
  • 15
    0011320800 DUMMY RIVET 3,0X 8 STEEL
    DUMMY RIVET 3,0X 8 STEEL
  • 16
    0134030003 WASHER DIN0134- 3,2
    WASHER DIN0134- 3,2
  • 19
    54606010000 SPLASH PROTECT.FOR FILTER BOX
    SPLASH PROTECT.FOR FILTER BOX
  • 20
    58506010000 SPLASH PROTECTION TOP
    SPLASH PROTECTION TOP
  • 21
    0014060133 HH COLLAR SCREW M 6X13
    HH COLLAR SCREW M 6X13
  • 22
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 23
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 24
    0014060153 HH COLLAR SCREW M 6X15
    HH COLLAR SCREW M 6X15
  • 25
    72210079000 BUCKET
    BUCKET
  • 33
    58308013051 NUMBER PLATE CARRIER EGS
    NUMBER PLATE CARRIER EGS
  • 34
    58412080050 BRACKET FOR REFLECTOR
    BRACKET FOR REFLECTOR
  • 35
    58412080000 REFLECTOR RED LC4
    REFLECTOR RED LC4
  • 36
    40006006000 WASHER 6MM
    WASHER 6MM
  • 37
    0966050163 OVAL HEAD SCREW DIN0966-M 5X16
    OVAL HEAD SCREW DIN0966-M 5X16
  • 38
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 39
    0125050003 WASHER DIN0125-A 5,3
    WASHER DIN0125-A 5,3
  • 53
    5850801300004 FENDER REAR RALLYE
    FENDER REAR RALLYE
  • 60
    58329099000 ORIGINAL EQUIPMENT TOOL KIT
    ORIGINAL EQUIPMENT TOOL KIT
  • 61
    45007040051 QUICK RELEASE CPL. 50 SXR
    QUICK RELEASE CPL. 50 SXR
  • 62
    0991060166 FL.HEAD SCR.DIN7991-M6X16 10.9
    FL.HEAD SCR.DIN7991-M6X16 10.9
  • 63
    0991060202 FLAT HEAD DIN7991-M 6X20
    FLAT HEAD DIN7991-M 6X20
  • 64
    56509064100 SELF LOCKING NUT M6
    SELF LOCKING NUT M6
  • 65
    0014060103 HH COLLAR SCREW M 6X10
    HH COLLAR SCREW M 6X10
