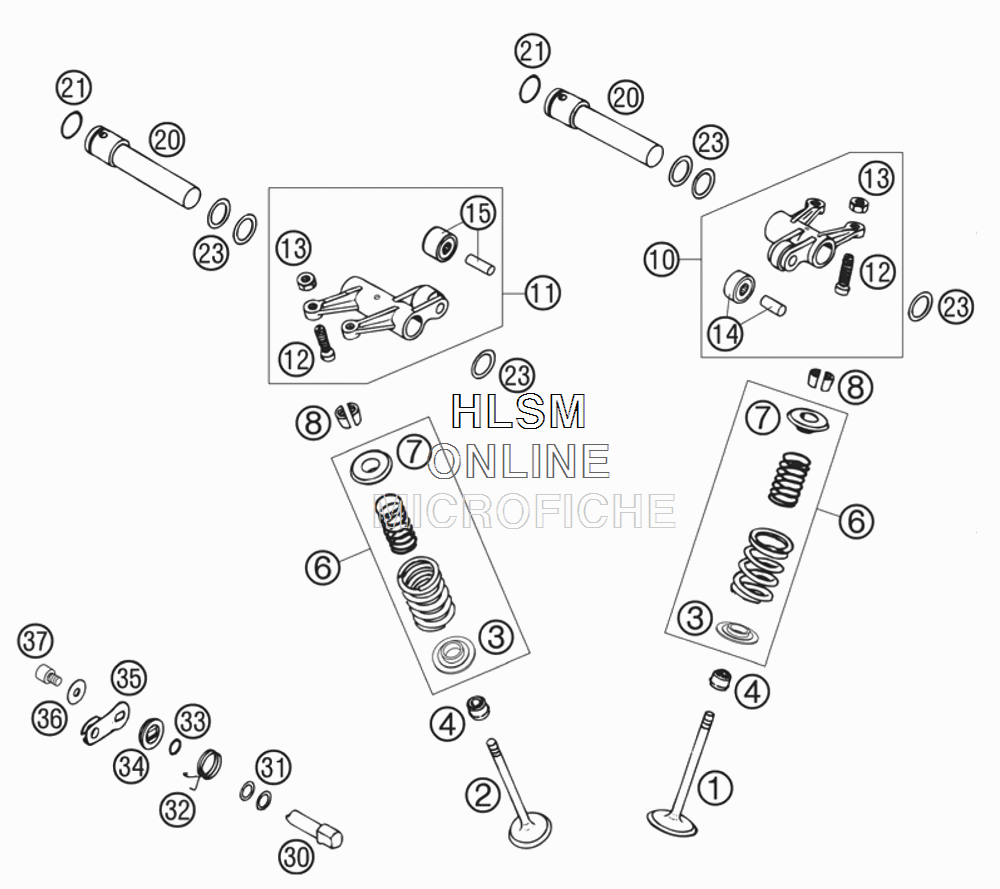

VALVE DRIVE для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    58036030000 INTAKE VALVE D=36 MM
    INTAKE VALVE D=36 MM
  • 2
    58536031000 EXHAUST VALVE D=32 MM
    EXHAUST VALVE D=32 MM
  • 3
    57336036000 VALVE SPRING HOLDER GRADED
    VALVE SPRING HOLDER GRADED
  • 4
    58036028000 VALVE-STEAM SEALING
    VALVE-STEAM SEALING
  • 6
    58536029044 VALVE SPRING KIT RALLYE
    VALVE SPRING KIT RALLYE
  • 7
    58036032700 VALVE-SPRING RETAINER ALU
    VALVE-SPRING RETAINER ALU
  • 8
    58036033000 VALVE COLLET MK7
    VALVE COLLET MK7
  • 10
    58536060144 ROCKER ARM INTAKE CPL.
    ROCKER ARM INTAKE CPL.
  • 11
    58536061144 ROCKER ARM EXHAUST CPL.
    ROCKER ARM EXHAUST CPL.
  • 12
    58036062600 ADJUSTMENT SCREW CPL. M 7X0,75
    ADJUSTMENT SCREW CPL. M 7X0,75
  • 13
    0934070756 HEXAGON NUT DIN0934-M 7X0,75
    HEXAGON NUT DIN0934-M 7X0,75
  • 14
    58036061090 ROCKER ARM ROLLER CPL. INTAKE
    ROCKER ARM ROLLER CPL. INTAKE
  • 15
    58336061090 ROCKER ARM ROLLER CPL. EXHAUST
    ROCKER ARM ROLLER CPL. EXHAUST
  • 20
    58536056100 ROCKER ARM SHAFT L=96MM 7,2MM
    ROCKER ARM SHAFT L=96MM 7,2MM
  • 21
    58036095000 O-RING 15,08 X 2,62 NBR 70
    O-RING 15,08 X 2,62 NBR 70
  • 23
    0988162202 THRUST WASH.DIN0988-16X22X0,20
    THRUST WASH.DIN0988-16X22X0,20
  • 23
    0988162205 THRUST WASH. DIN0988-16X22X0,5
    THRUST WASH. DIN0988-16X22X0,5
  • 23
    0988162210 THRUST WASHER DIN0988-16X22X1
    THRUST WASHER DIN0988-16X22X1
  • 30
    58036050100 DECOMPRESSION SHAFT
    DECOMPRESSION SHAFT
  • 31
    54334015000 WASHER 10X14X0,5 STEEL
    WASHER 10X14X0,5 STEEL
  • 31
    54334015100 WASHER 10X14X0,3 STEEL
    WASHER 10X14X0,3 STEEL
  • 31
    54334015200 WASHER 10X14X0,15 STEEL
    WASHER 10X14X0,15 STEEL
  • 32
    58036059200 DECOMP.LEVER SPRING
    DECOMP.LEVER SPRING
  • 33
    0770100221 O-RING 10,00X2,20 SILICONE
    O-RING 10,00X2,20 SILICONE
  • 34
    58036048000 COVER DISK
    COVER DISK
  • 35
    58036049500 DECOMPRESSION LEVER
    DECOMPRESSION LEVER
  • 36
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 37
    0912060103 AH SCREW DIN0912-M 6X10
    AH SCREW DIN0912-M 6X10
