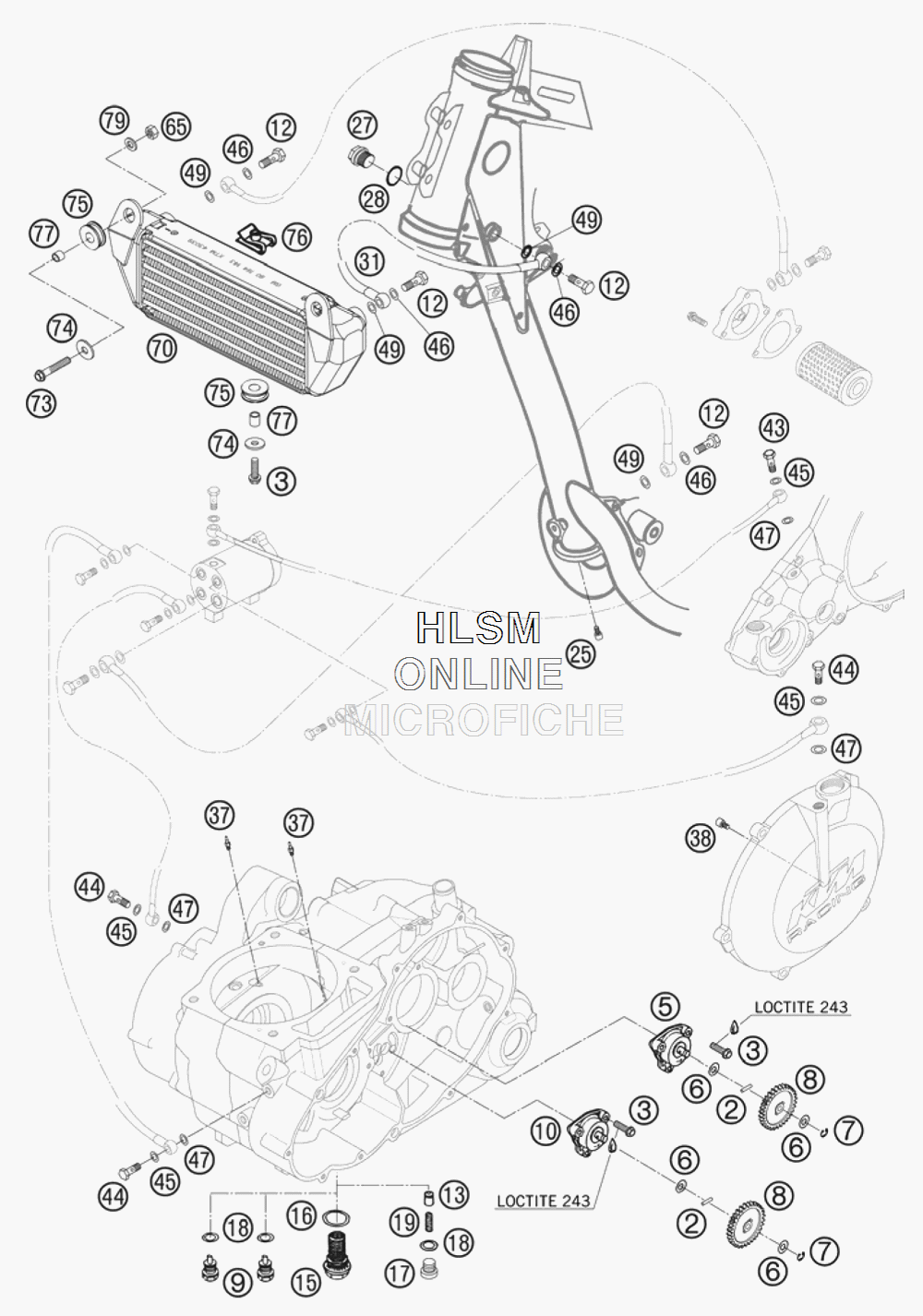

LUBRICATING SYSTEM для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска

  • №
    Артикул
    Название
  • 2
    0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8
    NEEDLEROL.DIN5402 NRA 2,5X19,8
  • 3
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 5
    58038007700 OIL PUMP MIKUNI G-73-10
    OIL PUMP MIKUNI G-73-10
  • 6
    58038007755 STOP DISK 8,1 X 15 X 0,5
    STOP DISK 8,1 X 15 X 0,5
  • 7
    0799060000 TAB WASHER DIN6799-RS 6,0
    TAB WASHER DIN6799-RS 6,0
  • 8
    58438001000 OIL PUMP GEAR 26-T
    OIL PUMP GEAR 26-T
  • 9
    58030021000 OILDRAIN PLUG W.MAG. M 12X1,5
    OILDRAIN PLUG W.MAG. M 12X1,5
  • 10
    58538007000 OIL PUMP MIKUNI G-185
    OIL PUMP MIKUNI G-185
  • 12
    54313025000 HOLLOW SCREW M10 X 1
    HOLLOW SCREW M10 X 1
  • 13
    58038028000 VALVE PISTON D=10MM
    VALVE PISTON D=10MM
  • 15
    58038019100 OIL DRAIN PLUG M22X1,5
    OIL DRAIN PLUG M22X1,5
  • 16
    58038017100 CU-SEAL RING DIN7603-22X27X2
    CU-SEAL RING DIN7603-22X27X2
  • 17
    0908120153 PLUG DIN0908-M12X1,5
    PLUG DIN0908-M12X1,5
  • 18
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 19
    58538023000 OIL PRES.SPRING 5 BAR RED
    OIL PRES.SPRING 5 BAR RED
  • 25
    0984060103 AH SCREW DIN7984-M 6X10
    AH SCREW DIN7984-M 6X10
  • 27
    0910160153 PLUG DIN0910-M16X1,5
    PLUG DIN0910-M16X1,5
  • 28
    0603162220 CU-SEAL RING 16X22X2
    CU-SEAL RING 16X22X2
  • 31
    58538053044 OIL L. OIL COOLER-FRAME 295MM
    OIL L. OIL COOLER-FRAME 295MM
  • 37
    60030064090 OIL JET 90 M6X0,75 WS8
    OIL JET 90 M6X0,75 WS8
  • 38
    56331145075 STARTING JET
    STARTING JET
  • 43
    59038029000 JET SCREW "100" M8X1 WS=12
    JET SCREW "100" M8X1 WS=12
  • 44
    58038030000 % BANJO BOLT M8 X 1 DIN7643
    % BANJO BOLT M8 X 1 DIN7643
  • 45
    0603082131 COPPER GASK.DIN7603- 8,2X13X1
    COPPER GASK.DIN7603- 8,2X13X1
  • 46
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 47
    0603821220 COPPER GASKET 8,2X12X2 MM
    COPPER GASKET 8,2X12X2 MM
  • 49
    0603101420 COPPER GASKET 10,2X14X2 MM
    COPPER GASKET 10,2X14X2 MM
  • 65
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 70
    58538052000 OIL COOLER RALLYE
    OIL COOLER RALLYE
  • 73
    0015060353 HH COLLAR SCREW M 6X35 WS=8
    HH COLLAR SCREW M 6X35 WS=8
  • 74
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 75
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 76
    50235033300 SNAP-NUT HOLDER M6 KP142
    SNAP-NUT HOLDER M6 KP142
  • 77
    54431032050 SPACER BUSHING 6X8X8,5
    SPACER BUSHING 6X8X8,5
  • 79
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
