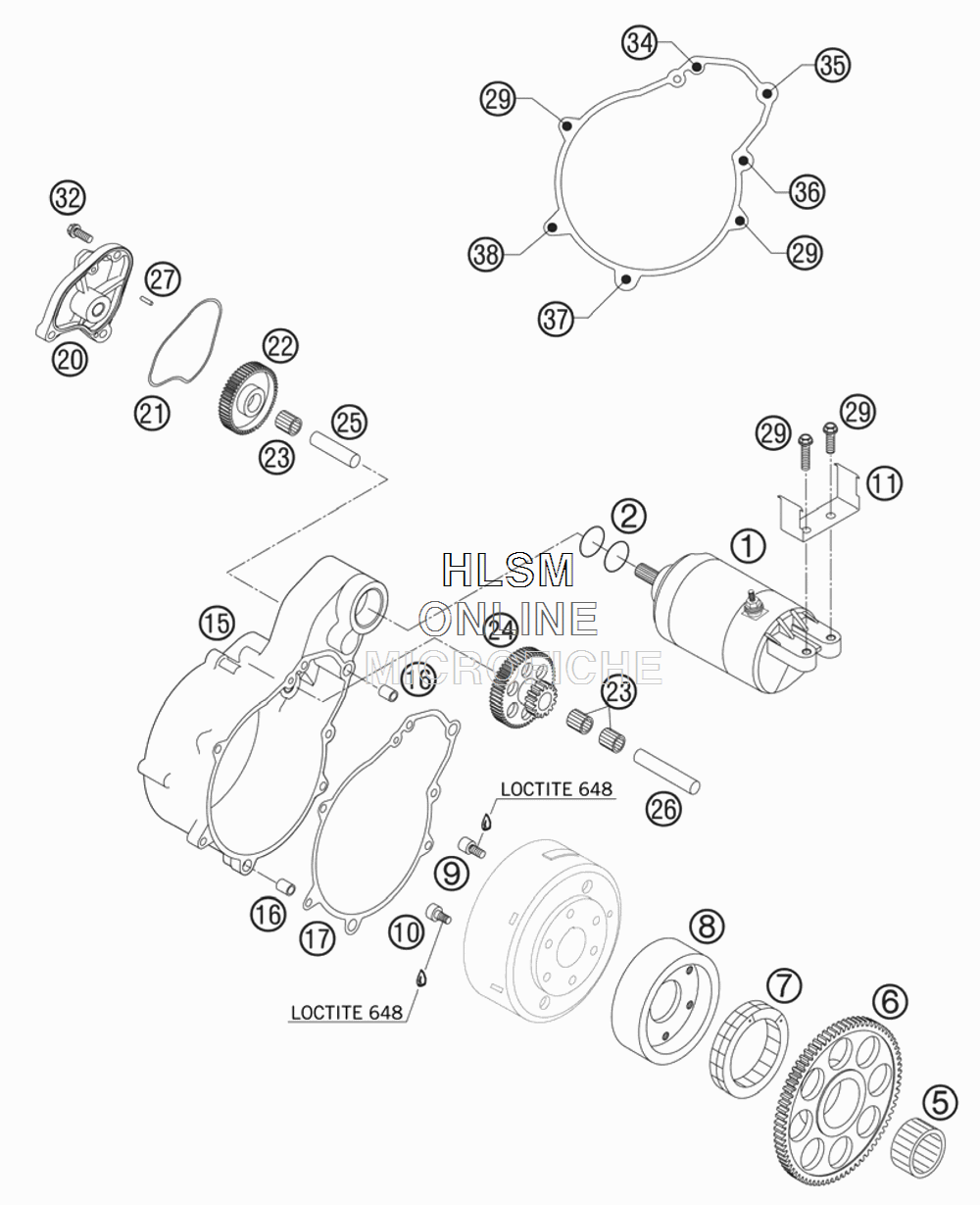

ELECTRIC STARTER для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска
-
№АртикулНазвание
-
158440001000 E-STARTER ENGINE CPL. LC4-EE-STARTER ENGINE CPL. LC4-E
-
20770250030 O-RING 25,00X3,00 NBR 70O-RING 25,00X3,00 NBR 70
-
558440090100 NEEDLE BEARING K30 X 37 X 18 ANEEDLE BEARING K30 X 37 X 18 A
-
658440020079 FREE-WHEEL-GEAR 79-TFREE-WHEEL-GEAR 79-T
-
758440026000 FREE-WHEEL FWD 332008 BLSFREE-WHEEL FWD 332008 BLS
-
858440025000 FREEWHEEL HUBFREEWHEEL HUB
-
90912060121 AH SCREW DIN0912-M 6X12 12.9AH SCREW DIN0912-M 6X12 12.9
-
1058440098000 AH CENTERING SCREW M6X12,5AH CENTERING SCREW M6X12,5
-
1158511058050 BRACKET FOR STARTRELAISBRACKET FOR STARTRELAIS
-
1558440010100 STARTER FLANGE BLACKSTARTER FLANGE BLACK
-
1649030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
1758540042000 STARTER FLAN.GASKET 0,5MMSTARTER FLAN.GASKET 0,5MM
-
2058440011100 STARTER COVER BLACKSTARTER COVER BLACK
-
2158440011050 FORM RING F.STARTERCOVER NBR70FORM RING F.STARTERCOVER NBR70
-
2258440022000 INTERMEDIATE GEAR 52-TINTERMEDIATE GEAR 52-T
-
2358440090000 NEEDLE BEARING K10 X 13 X 13TNNEEDLE BEARING K10 X 13 X 13TN
-
2458440021018 REDUCTION GEAR 55-T/18-ZREDUCTION GEAR 55-T/18-Z
-
2558440028000 BEARING BOLT 10 X 38,4BEARING BOLT 10 X 38,4
-
2658440029000 BEARING BOLT 10 X 54BEARING BOLT 10 X 54
-
270402040780 NEEDLEROLL. DIN5402 NRB 4X 7,8NEEDLEROLL. DIN5402 NRB 4X 7,8
-
290015060253 HH COLLAR SCREW M 6X25HH COLLAR SCREW M 6X25
-
320015060163 HH COLLAR SCREW M 6X16HH COLLAR SCREW M 6X16
-
340015060453 HH COLLAR SCREW M 6X45HH COLLAR SCREW M 6X45
-
350015060503 HH COLLAR SCREW M 6X50HH COLLAR SCREW M 6X50
-
360015060803 HH COLLAR SCREW M 6X80HH COLLAR SCREW M 6X80
-
370015060303 HH COLLAR SCREW M 6X30HH COLLAR SCREW M 6X30
-
380015060953 HH COLLAR SCREW M 6X95HH COLLAR SCREW M 6X95
