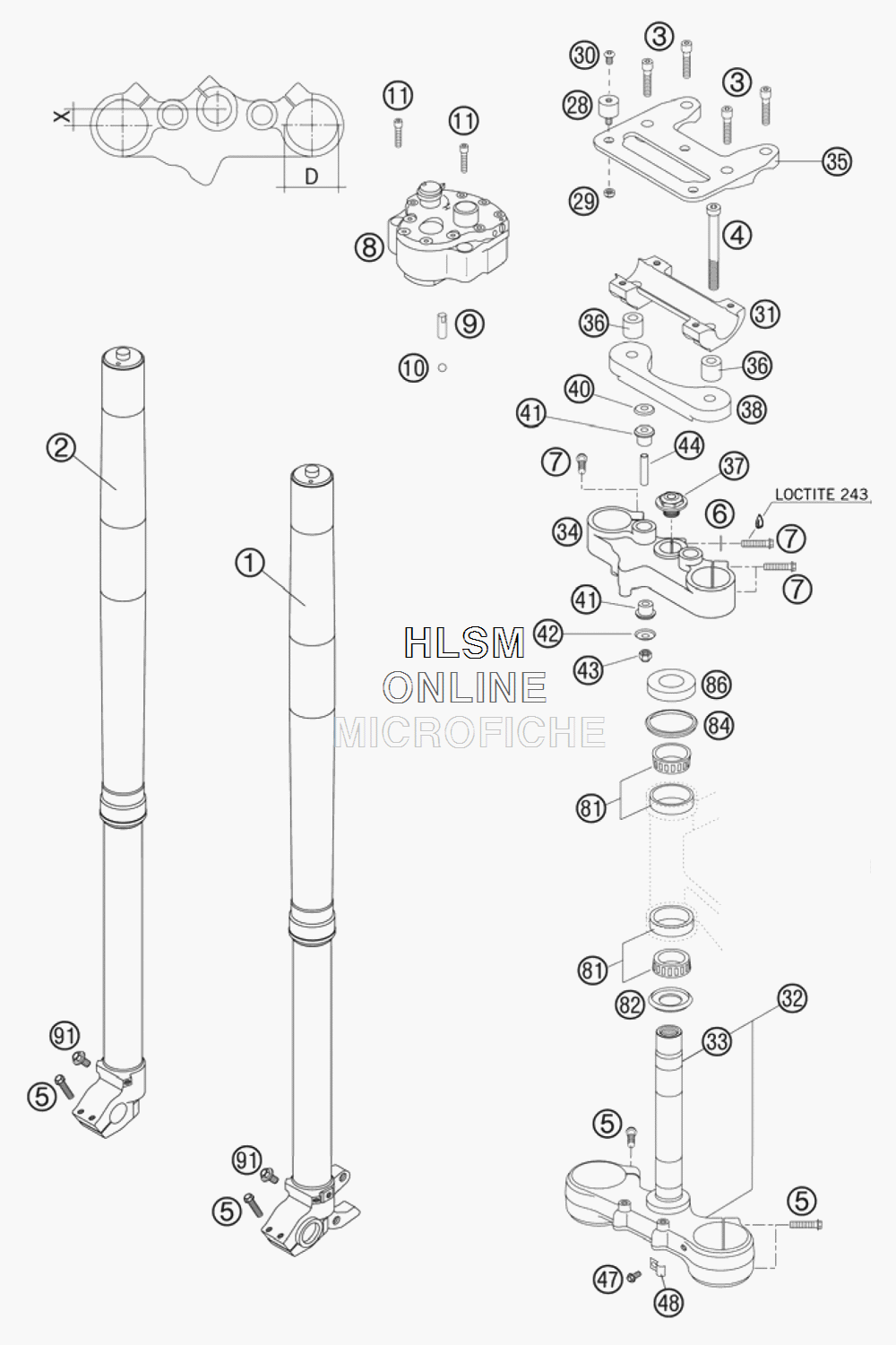

TELESCOPIC FORK для Ktm 660 RALLYE FACTORY REPL. - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    14187B10LS FORK LEG L/S WP48 RALLYE
    FORK LEG L/S WP48 RALLYE
  • 2
    14187B10RS FORK LEG R/S WP48 RALLYE
    FORK LEG R/S WP48 RALLYE
  • 3
    0912080303 AH SCREW DIN0912-M 8X30
    AH SCREW DIN0912-M 8X30
  • 4
    0984101006 AH SCREW DIN6912-M10X100 SHORT HEAD
    AH SCREW DIN6912-M10X100 SHORT HEAD
  • 5
    0015080303 HH COLLAR SCREW M 8X30
    HH COLLAR SCREW M 8X30
  • 6
    50233041100 PAIR OF WASHERS M10 NORDLOCK
    PAIR OF WASHERS M10 NORDLOCK
  • 7
    0015080353 HH COLLAR SCREW M 8X35
    HH COLLAR SCREW M 8X35
  • 8
    58512050000 STEERING DAMPER
    STEERING DAMPER
  • 9
    58502006100 PIN F.STEERING STAB. 8MM
    PIN F.STEERING STAB. 8MM
  • 10
    0401070003 BALL DIN5401-7
    BALL DIN5401-7
  • 11
    0912060303 AH SCREW DIN0912-M 6X30
    AH SCREW DIN0912-M 6X30
  • 28
    43205062100 RUBBER GROMMET 20X15-M6X10 (1)
    RUBBER GROMMET 20X15-M6X10 (1)
  • 29
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 30
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
  • 31
    59001039100 HANDLEBAR SUPPORT 28MM
    HANDLEBAR SUPPORT 28MM
  • 32*
    59001032320 BOTTOM TRIPLE CLAMP CPL.X=20MM
    BOTTOM TRIPLE CLAMP CPL.X=20MM
  • 33*
    54801033100 FORK TUBE L=244
    FORK TUBE L=244
  • 34
    58501034020 TOP TRIPLE CLAMP RALLYE
    TOP TRIPLE CLAMP RALLYE
  • 35*
    58502003100 GPS MOUNTING PLATE MILLED
    GPS MOUNTING PLATE MILLED
  • 36
    58502005051 HANDLEBAR BUSHING 17MM
    HANDLEBAR BUSHING 17MM
  • 37
    50301036000 STEER.HEAD SCREW M20X1,5 WS=27
    STEER.HEAD SCREW M20X1,5 WS=27
  • 38
    58502009000 HOLD.F.STEERING SHOCK ABSORBER
    HOLD.F.STEERING SHOCK ABSORBER
  • 40
    56401042000 WASHER 10,5X32X2
    WASHER 10,5X32X2
  • 41
    56401040000 RUBBER BUSHING
    RUBBER BUSHING
  • 42
    56401142000 WASHER 10,5X31
    WASHER 10,5X31
  • 43
    0985100003 SELF LOCKING NUT DIN0985-M10
    SELF LOCKING NUT DIN0985-M10
  • 44
    56401041100 SPACER TUBE 10,2X12X44
    SPACER TUBE 10,2X12X44
  • 47
    0015050123 HH COLLAR SCREW M 5X12
    HH COLLAR SCREW M 5X12
  • 48
    50211096000 CLAMP FOR WIRING HARNESS
    CLAMP FOR WIRING HARNESS
  • 81*
    54201082000 TAPERED ROLLER BEARING
    TAPERED ROLLER BEARING
  • 82
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 86
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 91
    0014060103 HH COLLAR SCREW M 6X10
    HH COLLAR SCREW M 6X10
