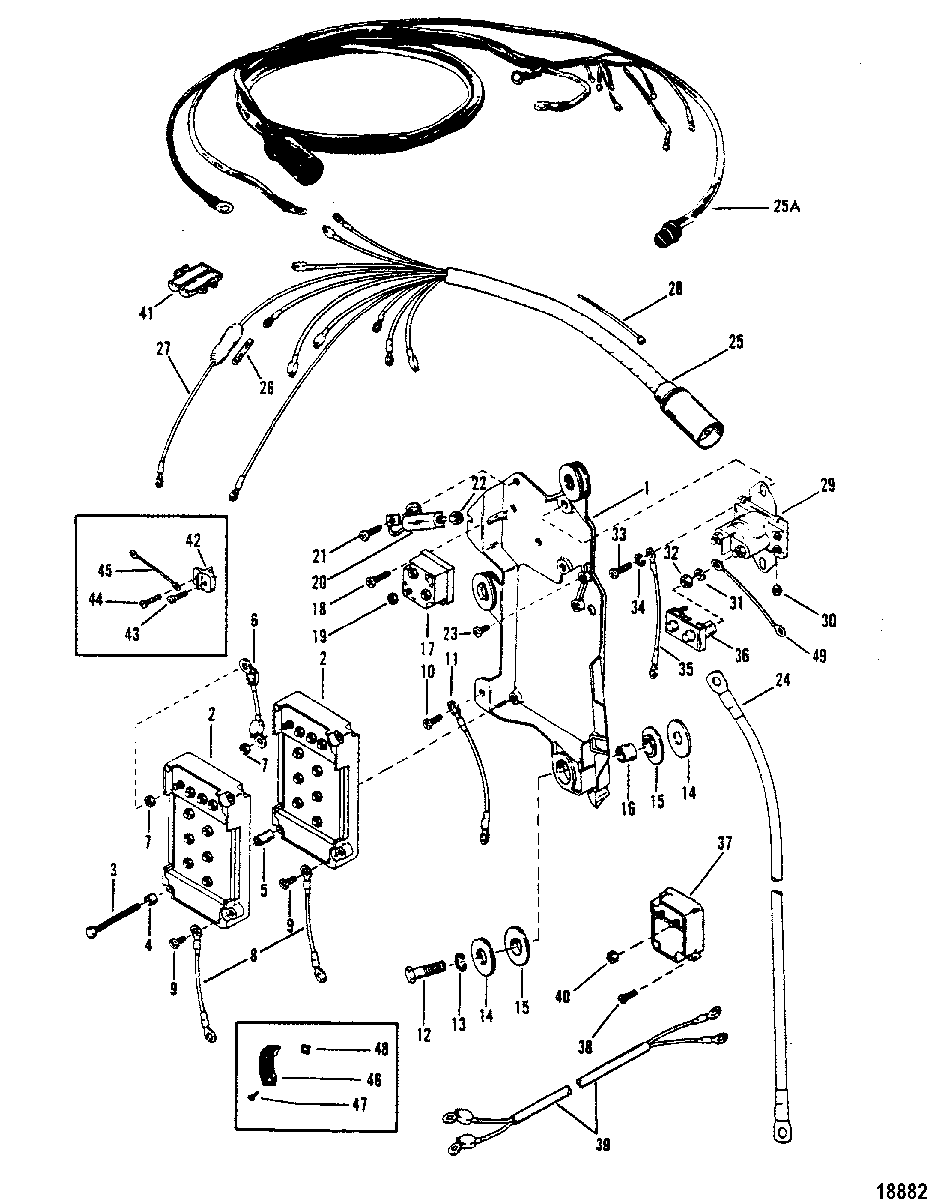

Wiring Harness, Starter Solenoid and Rectifier для Mercury - V-175 4301235 THRU 0C100860
-
№АртикулНазвание
-
1434292 PLATEPLATE
-
2332-7778A12 SWITCH BOXSWITCH BOX
-
310-13669 SCREW, (12-24 x 2.00)SCREW, (12-24 x 2.00)
-
310-90815 SCREW, (#12-24 X 2.25)SCREW, (#12-24 X 2.25)
-
423-94304 SPACER (Use where Applicable)SPACER (Use where Applicable)
-
523-94453 BUSHINGBUSHING
-
684-62310A2 CABLE ASSEMBLYCABLE ASSEMBLY
-
711-45076 NUT, (#10-32)NUT, (#10-32)
-
884-60871A10 WIRE ASSEMBLYWIRE ASSEMBLY
-
910-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
1010-38055 SCREW, (.190-32 X .62)SCREW, (.190-32 X .62)
-
1184-65999A3 CABLE ASSEMBLY, (Black)CABLE ASSEMBLY, (Black)
-
1210-60411 SCREW, (1.25)SCREW, (1.25)
-
1313-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1412-36042 WASHERWASHER
-
1512-67264 WASHER, (Rubber)WASHER, (Rubber)
-
1623-67268 BUSHINGBUSHING
-
178M0058226 RECTIFIERRECTIFIER
-
1810-38055 SCREW, (.190-32 X .62)SCREW, (.190-32 X .62)
-
1911-45076 NUT, (#10-32)NUT, (#10-32)
-
2058124A21 MERCURY SWITCH
(LEADS ATTACHED)MERCURY SWITCH
(LEADS ATTACHED) -
2087-33386A3 SWITCH ASSEMLBY
(LEADS NOT ATTACHED)SWITCH ASSEMLBY
(LEADS NOT ATTACHED) -
2110-38055 SCREW, (.190-32 X .62)SCREW, (.190-32 X .62)
-
2211-45076 NUT, (#10-32)NUT, (#10-32)
-
2310-22028 SCREW, (#10-32 x .50)SCREW, (#10-32 x .50)
-
2484-88439A14 BATTERY CABLE
(POSITIVE)BATTERY CABLE
(POSITIVE) -
2484-88439A2 BATTERY CABLE
(NEGATIVE)BATTERY CABLE
(NEGATIVE) -
25A84-87294A1 ENGINE HARNESSENGINE HARNESS
-
2584-96220A4 HARNESSHARNESS
-
2688-79091 FUSE, (20 Ampere)FUSE, (20 Ampere)
-
2784-95084A2 CABLE ASSEMBLYCABLE ASSEMBLY
-
2854-816311T CABLE TIE, (8.00 Inches)CABLE TIE, (8.00 Inches)
-
2989-96054T SOLENOID ASSEMBLY, Starter
(8-32 1/4 -20 Terminals)SOLENOID ASSEMBLY, Starter
(8-32 1/4 -20 Terminals) -
2989-853654A1 STARTER SOLENOID
(10-32 5/16-18 Terminals)STARTER SOLENOID
(10-32 5/16-18 Terminals) -
3011-26419 NUT, (#8-32)
(1/4 -20 Terminals)NUT, (#8-32)
(1/4 -20 Terminals) -
3011-68219 NUT, (#10-32)
(5/16-18 Terminals)NUT, (#10-32)
(5/16-18 Terminals) -
3113-26992 LOCKWASHER, (.250)
(1/4 -20 Terminals)LOCKWASHER, (.250)
(1/4 -20 Terminals) -
3113-26993 LOCKWASHER, (.312)
(5/16-18 Terminals)LOCKWASHER, (.312)
(5/16-18 Terminals) -
3211-94330 NUT, (.250-20)
(1/4 -20 Terminals)NUT, (.250-20)
(1/4 -20 Terminals) -
3211-68292 NUT, (#10-32)
(5/16-18 Terminals)NUT, (#10-32)
(5/16-18 Terminals) -
3310-20540 SCREW (5/8")SCREW (5/8")
-
3413-26992 LOCKWASHER, (.250)LOCKWASHER, (.250)
-
3584-65999A2 CABLE ASSEMBLY, (Black)CABLE ASSEMBLY, (Black)
-
3685-97861 INSULATORINSULATOR
-
3788825A7 VOLTAGE REGUALTOR (Use where Applicable)VOLTAGE REGUALTOR (Use where Applicable)
-
3810-48409 SCREW, (#10-16 x .625) (Use where Applicable)SCREW, (#10-16 x .625) (Use where Applicable)
-
3984-13397A1 HARNESS ASSEMBLY (Use where Applicable)HARNESS ASSEMBLY (Use where Applicable)
-
4011-45076 NUT, (#10-32) (Use where Applicable)NUT, (#10-32) (Use where Applicable)
-
41134731 FUSE HOLDER (Use where Applicable)FUSE HOLDER (Use where Applicable)
-
4286-66986 TERMINAL BLOCK (Use where Applicable)TERMINAL BLOCK (Use where Applicable)
-
4310-22523 SCREW, (.190-32 x .75) (Use where Applicable)SCREW, (.190-32 x .75) (Use where Applicable)
-
4410-22028 SCREW, (#10-32 x .50) (Use where Applicable)SCREW, (#10-32 x .50) (Use where Applicable)
-
4584-62189A1 WIRE ASSEMBLY (Orange)(Use where Applicable)WIRE ASSEMBLY (Orange)(Use where Applicable)
-
4667237 RETAINER (Use where Applicable)RETAINER (Use where Applicable)
-
4710-69570 SCREW, (#10-16 x .750)
(Use where Applicable)SCREW, (#10-16 x .750)
(Use where Applicable) -
4825-8M0079730 GROMMET (Use where Applicable)GROMMET (Use where Applicable)
-
4984-60466A10 GROUND WIRE ASSEMBLY
(BLACK)(Use where Applicable)GROUND WIRE ASSEMBLY
(BLACK)(Use where Applicable) -
4984-62824A1 CABLE
(RED)(Use where Applicable)CABLE
(RED)(Use where Applicable)
