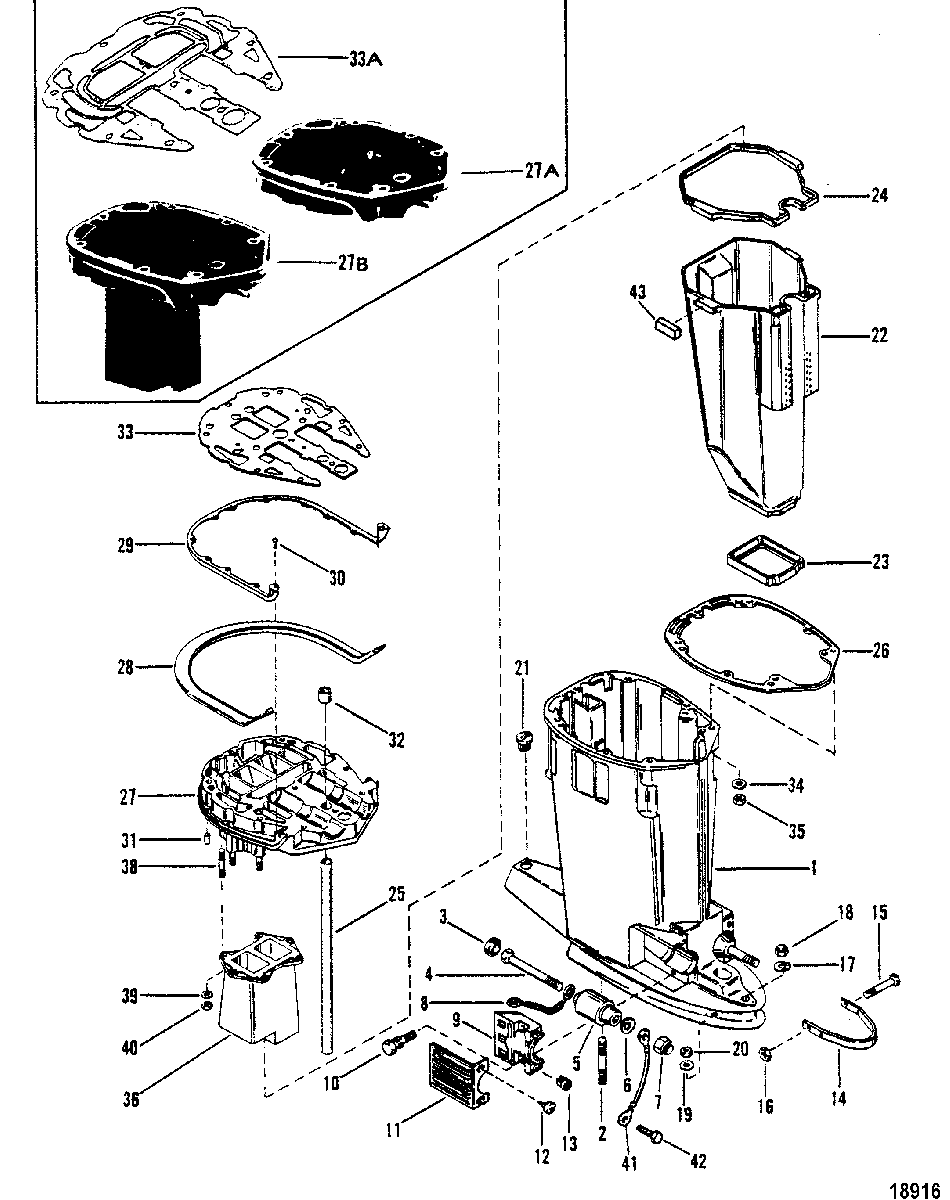

Driveshaft Housing and Exhaust tube для Mercury - V-175 4301235 THRU 0C100860
-
№АртикулНазвание
-
11579-7315A7 DRIVESHAFT HOUSING
(Black) SN# Mercury-5393736/Mariner-5316380 & BelowDRIVESHAFT HOUSING
(Black) SN# Mercury-5393736/Mariner-5316380 & Below -
11590-8343A7 DRIVESHAFT HOUSIG ASSEMBLY
(Black) SN# Mercury-5393737/Mariner-5316381 & UpDRIVESHAFT HOUSIG ASSEMBLY
(Black) SN# Mercury-5393737/Mariner-5316381 & Up -
11590-8343A8 DRIVESHAFT HOUSING ASSEMBLY
(Gray) SN# Mercury-5393737/Mariner-5316381 & UpDRIVESHAFT HOUSING ASSEMBLY
(Gray) SN# Mercury-5393737/Mariner-5316381 & Up -
11590-8343A8 DRIVESHAFT HOUSING ASSEMBLY
(Oyster)DRIVESHAFT HOUSING ASSEMBLY
(Oyster) -
216-56295 STUD, (.437 x 2.69)
(LONG SHAFT)STUD, (.437 x 2.69)
(LONG SHAFT) -
216-74732 STUD
(X-LONG SHAFT)STUD
(X-LONG SHAFT) -
325067 BUMPERBUMPER
-
410-898831 SCREW, (.500-20 x 6.00)SCREW, (.500-20 x 6.00)
-
577327 MOUNT, LOWERMOUNT, LOWER
-
577327 MOUNT
(HEAVY DUTY)MOUNT
(HEAVY DUTY) -
612-49339 WASHER, (.8125)WASHER, (.8125)
-
711-25096 NUTNUT
-
888238A10 GROUND WIRE ASSEMBLYGROUND WIRE ASSEMBLY
-
954-8M0036782 CLAMPCLAMP
-
1010-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
11100-8M4500752 COVER
(BLACK)COVER
(BLACK) -
11100-8M4500752 COVER
(GRAY)COVER
(GRAY) -
11100-8M4500752 COVER
(OYSTER)COVER
(OYSTER) -
1210-88417 SCREW, (#12-24 x .620)SCREW, (#12-24 x .620)
-
1311-35521 NUTNUT
-
1467703 STRAPSTRAP
-
1510-67769 SCREW, (.375-24 X 4.00)
(OLD DESIGN)SCREW, (.375-24 X 4.00)
(OLD DESIGN) -
1611-25269 NUT
(OLD DESIGN)NUT
(OLD DESIGN) -
1712-73862 WASHERWASHER
-
1811-29489 NUTNUT
-
1912-45176 WASHER, (.453 x .812 x .105)WASHER, (.453 x .812 x .105)
-
2011-34933 NUT, (.437-20)NUT, (.437-20)
-
2119-64649 PLUG
(BLACK/GRAY)PLUG
(BLACK/GRAY) -
2119-646491 PLUG
(OYSTER)PLUG
(OYSTER) -
2267075 EXHAUST TUBE
SN# Mercury-5393736/Mariner-5316380 & BelowEXHAUST TUBE
SN# Mercury-5393736/Mariner-5316380 & Below -
2289743 EXHAUST TUBE
SN# Mercury-5393737/Mariner-5316381 & UpEXHAUST TUBE
SN# Mercury-5393737/Mariner-5316381 & Up -
2366350001 SEAL (LOWER)SEAL (LOWER)
-
2486027 SEAL (UPPER)
SN# Mercury-5393737/Mariner-5316381 & UpSEAL (UPPER)
SN# Mercury-5393737/Mariner-5316381 & Up -
2532-8M0042788 TUBE
(LONG SHAFT)TUBE
(LONG SHAFT) -
2532-8M0042790 TUBE
(X-LONG SHAFT)TUBE
(X-LONG SHAFT) -
2627-991734 GASKETGASKET
-
27A75838A1 PLATE ASSEMBLY
(DESIGN I)PLATE ASSEMBLY
(DESIGN I) -
27B86586A1 PLATE ASSEMBLY
(DESIGN II)PLATE ASSEMBLY
(DESIGN II) -
2741945A6 PLATE ASSEMBLY
(DESIGN III)PLATE ASSEMBLY
(DESIGN III) -
28707482 SEALSEAL
-
2968011 BRACKETBRACKET
-
3010-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3117-43044 PIN, DowelPIN, Dowel
-
3226-38970 SEALSEAL
-
32A10-90192 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
3327-991772 GASKET
SN# 6618751 & UpGASKET
SN# 6618751 & Up -
33A27-75786 GASKET
SN# 6618750 & BelowGASKET
SN# 6618750 & Below -
3412-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
3511-69254 NUTNUT
-
36879288T71 EXH. EXTENSIONEXH. EXTENSION
-
3816-66021 STUDSTUD
-
3912-20533 WASHERWASHER
-
4011-30506 NUT, (.250-28)NUT, (.250-28)
-
4188238A10 GROUND STRAP
(NEW DESIGN)GROUND STRAP
(NEW DESIGN) -
4210-41508 SCREW, (.250-20 x .500)
(NEW DESIGN)SCREW, (.250-20 x .500)
(NEW DESIGN) -
4365638 BOOT
(OLD DESIGN)BOOT
(OLD DESIGN) -
--78148A1 SPACER ASSEMBLY
(X-LONG SHAFT)SPACER ASSEMBLY
(X-LONG SHAFT) -
--17-43044 PIN, Dowel
(X-LONG SHAFT)PIN, Dowel
(X-LONG SHAFT) -
-27-11338A88 GASKET SET, Engine Overhaul
SN# 6618751 & UpGASKET SET, Engine Overhaul
SN# 6618751 & Up -
-27-79583A81 GASKET SET
SN# 5875204 THRU 6618750GASKET SET
SN# 5875204 THRU 6618750 -
-NLA No Longer Available, Gasket Set
(Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & BelowNo Longer Available, Gasket Set
(Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & Below
