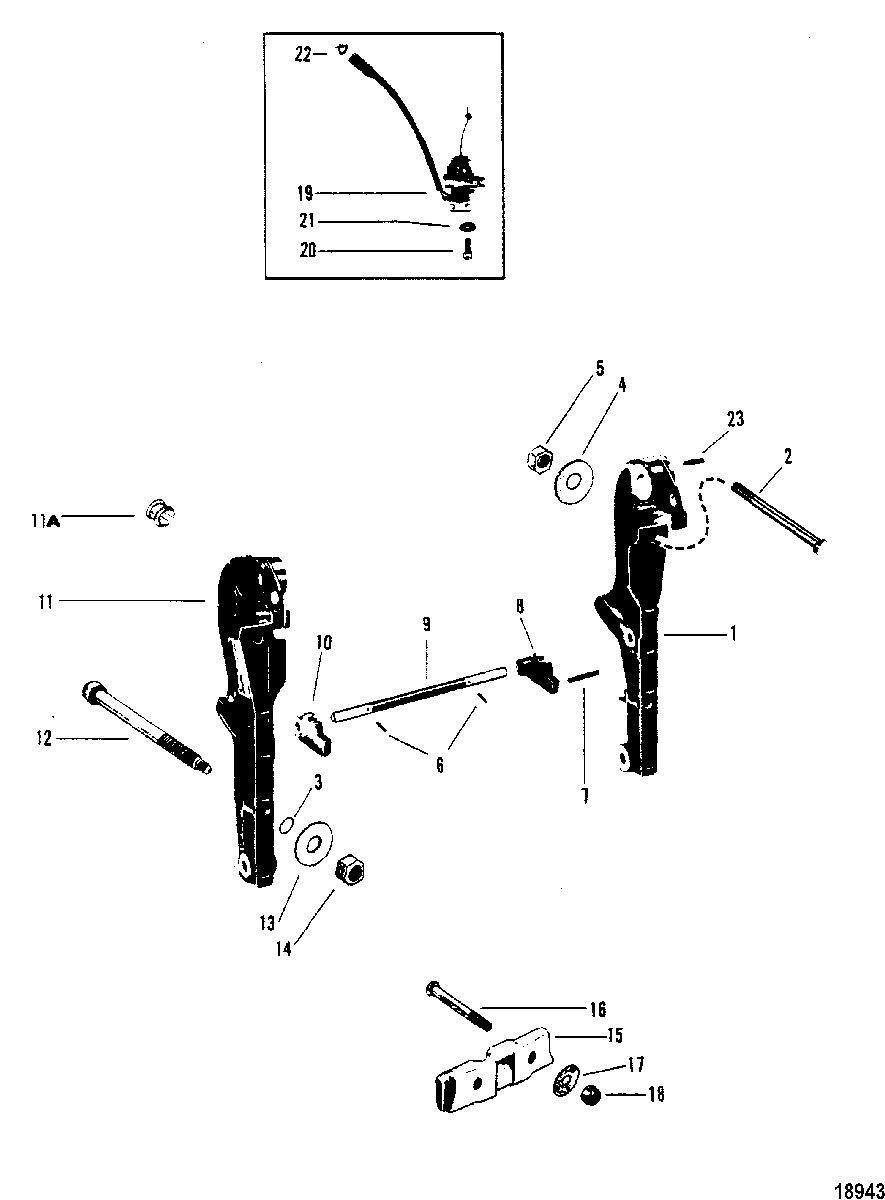

Transom Brackets(S/N-Merc-5488751/Mariner-5316380 & Below) для Mercury - V-175 4301235 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    1474-7076 PORT TRANSOM BRACKET
    PORT TRANSOM BRACKET
  • 2
    10-677552 SCREW, (.500-20 x 6.500)
    SCREW, (.500-20 x 6.500)
  • 3
    25-75320 O-RING
    O-RING
  • 4
    12-28421 WASHER
    WASHER
  • 5
    11-35000 NUT, (.500-20)
    NUT, (.500-20)
  • 6
    17-25810 PIN
    PIN
  • 7
    17-75319 ROLL PIN
    ROLL PIN
  • 8
    75293 PORT TRIM STOP
    PORT TRIM STOP
  • 9
    75292 SHAFT
    SHAFT
  • 10
    67718 STARBOARD TRIM STOP
    STARBOARD TRIM STOP
  • 11
    NLA No Longer Available, Transom Bracket (Starboard)
    No Longer Available, Transom Bracket (Starboard)
  • 11A
    79279 CLAMP
    CLAMP
  • 12
    22-67666 CONNECTOR
    (STBD.)
    CONNECTOR
    (STBD.)
  • 12
    22-67667 CONNECTOR
    (PORT )
    CONNECTOR
    (PORT )
  • 13
    12-28421 WASHER
    WASHER
  • 14
    11-35000 NUT, (.500-20)
    NUT, (.500-20)
  • 15
    76990 PAD
    PAD
  • 16
    10-76841 SCREW, (.50-20 X 3.50)
    SCREW, (.50-20 X 3.50)
  • 17
    12-28421 WASHER
    WASHER
  • 18
    11-35000 NUT, (.500-20)
    NUT, (.500-20)
  • 19
    75290A1 TILT SENDER
    TILT SENDER
  • 20
    10-37656 SCREW, (#10-32 X .62)
    SCREW, (#10-32 X .62)
  • 21
    12-30164 WASHER, (.192 x .375 x .0312)
    WASHER, (.192 x .375 x .0312)
  • 22
    54-75343 CLAMP
    CLAMP
  • 23
    17-75688 LOCATING PIN
    LOCATING PIN
  • -
    79583A91 GASKET SET
    SN# 5875204 THRU 6618750
    GASKET SET
    SN# 5875204 THRU 6618750
  • -
    NLA No Longer Available, Gasket Set
    (Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & Below
    No Longer Available, Gasket Set
    (Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & Below
