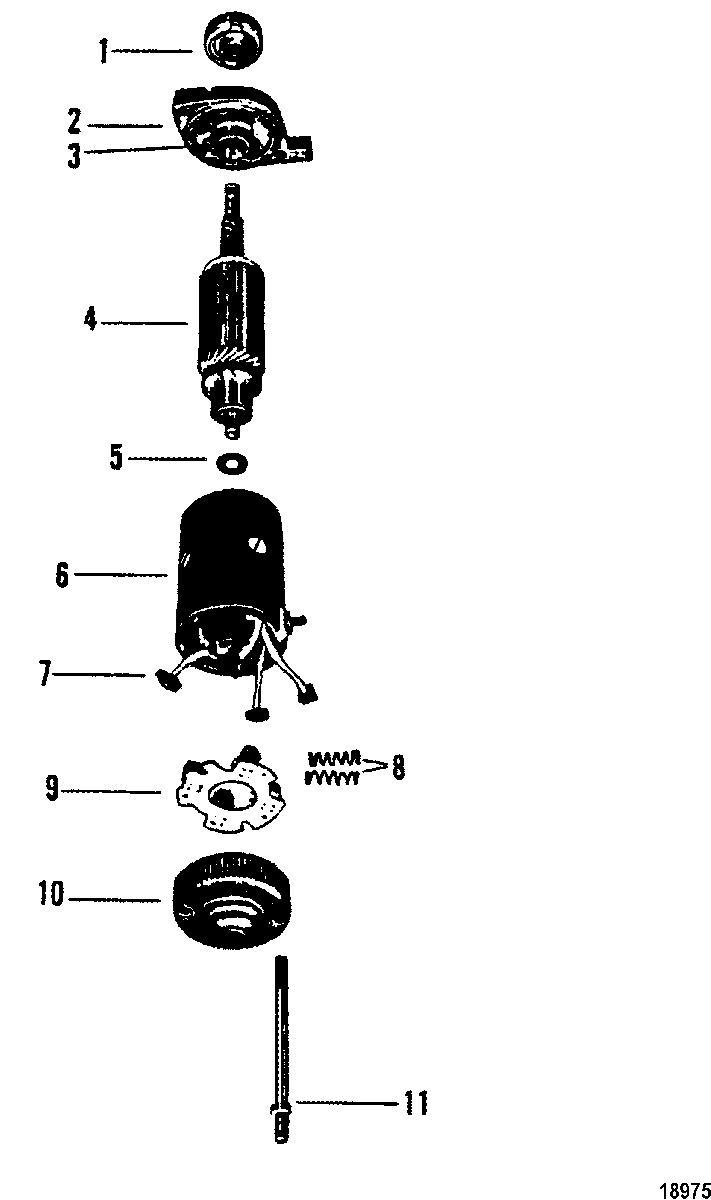

Starter Motor(Prestolite #MJL-4003B) для Mercury - V-175 4301235 THRU 0C100860
-
№АртикулНазвание
-
-50-898265010 STARTER MOTOR ASSEMBLY
(REPLACE W/50-72467)STARTER MOTOR ASSEMBLY
(REPLACE W/50-72467) -
1392-5053 DRIVEDRIVE
-
2392-4261 PLATEPLATE
-
3392-2518 BUSHINGBUSHING
-
4392-5150 ARMATUREARMATURE
-
5392-2523 PACKAGE
(Contains various thickness washers)PACKAGE
(Contains various thickness washers) -
6NLA No Longer Available, Frame & FieldNo Longer Available, Frame & Field
-
7392-2521 BRUSH AND TERMINAL SET
(Includes 4 brushes plus termianl and lock nut)BRUSH AND TERMINAL SET
(Includes 4 brushes plus termianl and lock nut) -
8392-2514 SPRING SET (2 SPRINGS PER SET)SPRING SET (2 SPRINGS PER SET)
-
9392-2519 BRUSH PLATE AND HOLDER ASSEMBLYBRUSH PLATE AND HOLDER ASSEMBLY
-
10NLA No Longer Available, End CapNo Longer Available, End Cap
-
11392-4262 THRU BOLTTHRU BOLT
