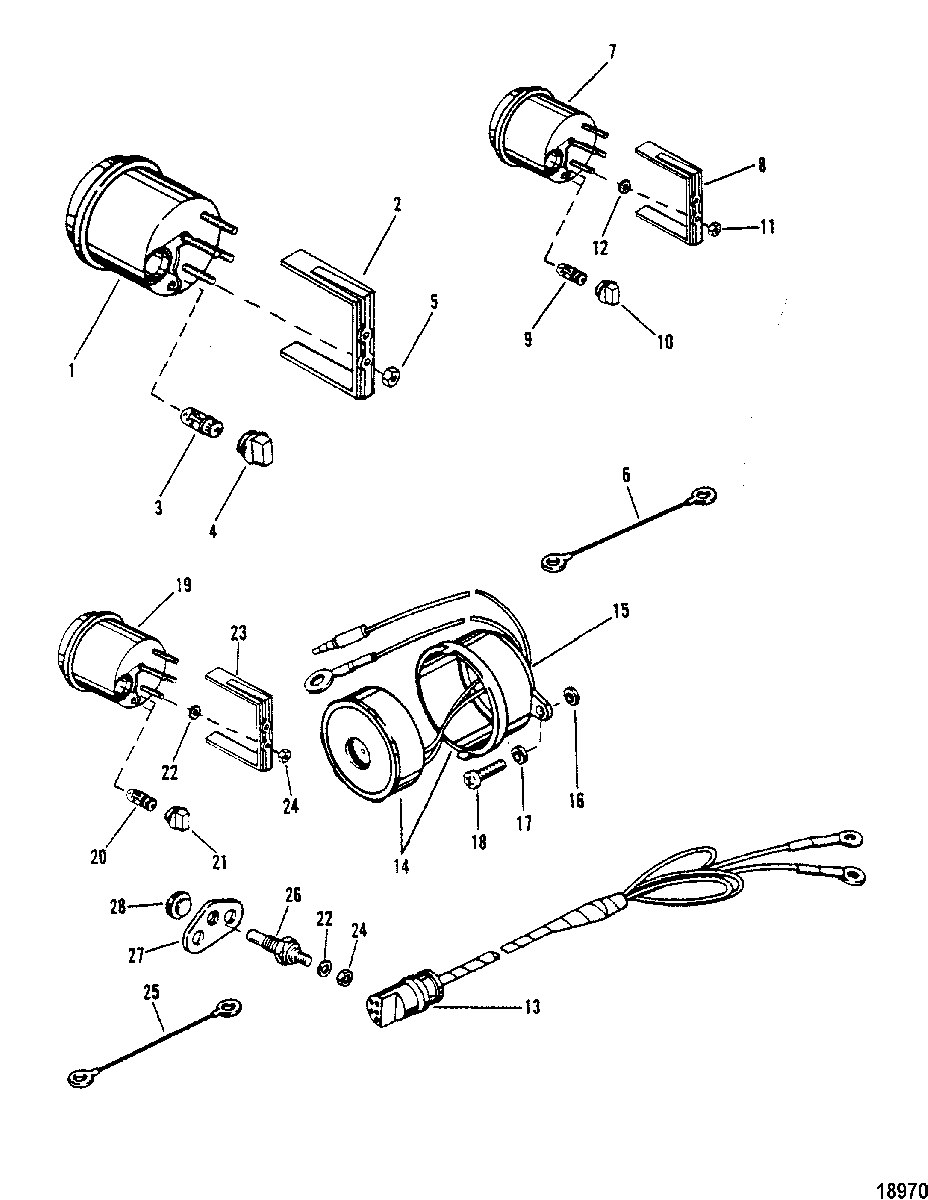

Instrumentation для Mercury - V-175 4301235 THRU 0C100860
-
№АртикулНазвание
-
179-895283Q43 TACHOMETERTACHOMETER
-
279101T BRACKETBRACKET
-
388-72729 LIGHT BULBLIGHT BULB
-
388-77613 LIGHT BULB (SQUARE FACE)(Black Bezel)LIGHT BULB (SQUARE FACE)(Black Bezel)
-
488-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
4NLA No Longer Available, Socket
(SQUARE FACE)No Longer Available, Socket
(SQUARE FACE) -
449917A4 SOCKET
(BLACK BEZEL)SOCKET
(BLACK BEZEL) -
511-45076 NUT, (#10-32)NUT, (#10-32)
-
684-86322A7 CABLE ASSEMBLY, (1.50 Feet-Black)CABLE ASSEMBLY, (1.50 Feet-Black)
-
684-86323A5 CABLE ASSEMBLY, (1.50 Feet-Purple)CABLE ASSEMBLY, (1.50 Feet-Purple)
-
684-61600A7 CABLE ASSEMBLY, (2.50 Feet-Black)CABLE ASSEMBLY, (2.50 Feet-Black)
-
6NLA No Longer Available, Wire (White 2 Inches)No Longer Available, Wire (White 2 Inches)
-
779-895292Q41 TRIM GAUGETRIM GAUGE
-
879480 BRACKETBRACKET
-
988-72729 LIGHT BULBLIGHT BULB
-
1088-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
1111-26419 NUT, (#8-32)NUT, (#8-32)
-
1212-26427 WASHERWASHER
-
779-75694A1 TRIM GAUGE
(SQUARE FACE)TRIM GAUGE
(SQUARE FACE) -
8NLA No Longer Available, Bracket
(SQUARE FACE)No Longer Available, Bracket
(SQUARE FACE) -
988-77613 LIGHT BULB
(SQUARE FACE)LIGHT BULB
(SQUARE FACE) -
10NLA No Longer Available, Socket
(SQUARE FACE)No Longer Available, Socket
(SQUARE FACE) -
1111-55821 NUT
(6-32)(SQUARE FACE)NUT
(6-32)(SQUARE FACE) -
1111-45076 NUT, (#10-32)
(SQUARE FACE)NUT, (#10-32)
(SQUARE FACE) -
876532 BRACKET
(Black Bezel Uses Bayonet Type Base Bulb)BRACKET
(Black Bezel Uses Bayonet Type Base Bulb) -
988-77613 LIGHT BULB
(Black Bezel Uses Bayonet Type Base Bulb)LIGHT BULB
(Black Bezel Uses Bayonet Type Base Bulb) -
1049917A4 SOCKET
(Black Bezel Uses Bayonet Type Base Bulb)SOCKET
(Black Bezel Uses Bayonet Type Base Bulb) -
1111-45076 NUT, (#10-32)
(Black Bezel Uses Bayonet Type Base Bulb)NUT, (#10-32)
(Black Bezel Uses Bayonet Type Base Bulb) -
1384-86396A8 HARNESS ASSEMBLY, Tachometer (5.00 Feet)
(2 RING TERMINALS)HARNESS ASSEMBLY, Tachometer (5.00 Feet)
(2 RING TERMINALS) -
1384-69108A1 HARNESS
(4 RING TERMINALS)HARNESS
(4 RING TERMINALS) -
1468878A6 ALARM HORN AND WIRE ASSEMBLYALARM HORN AND WIRE ASSEMBLY
-
1568879 COVERCOVER
-
1623-8M0084588 SPACERSPACER
-
1712-24676 WASHER, (.200 x .440 x .032)WASHER, (.200 x .440 x .032)
-
1810-35401 SCREW, (#10 x 1.00)SCREW, (#10 x 1.00)
-
1979-895287Q41 TEMPERATURE GAUGETEMPERATURE GAUGE
-
2088-72729 LIGHT BULBLIGHT BULB
-
2188-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
2212-26427 WASHERWASHER
-
2379480 BRACKETBRACKET
-
2411-26419 NUT, (#8-32)NUT, (#8-32)
-
2584-86323A2 CABLE ASSEMBLY, (2.00 Feet - Purple)CABLE ASSEMBLY, (2.00 Feet - Purple)
-
2584-61600A16 CABLE ASSEMBLY, (17.00 Inches-Black)CABLE ASSEMBLY, (17.00 Inches-Black)
-
2584-88032A3 CABLE ASSEMBLY, (23.00 Feet-Tan/Blue)CABLE ASSEMBLY, (23.00 Feet-Tan/Blue)
-
2612415 TEMPERATURE SENDERTEMPERATURE SENDER
-
2712419 COVERCOVER
-
2819-12431T PLUGPLUG
