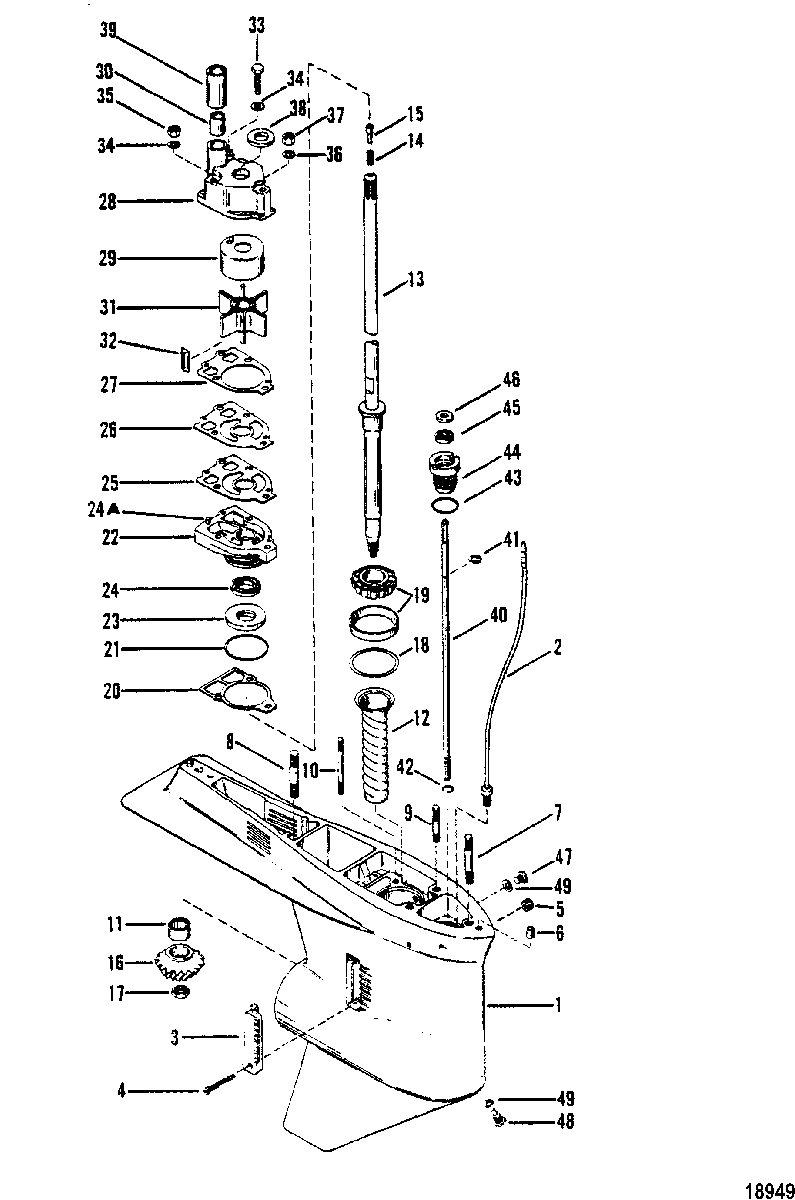

Gear Housing(Drive) 2:1 Ratio-14 Teeth Pinion Gear для Mercury - V-175 4301235 THRU 0C100860
-
№АртикулНазвание
-
01647-9148T81 GEAR HOUSING
(LONG )(BLACK)GEAR HOUSING
(LONG )(BLACK) -
01647-9148T81 GEAR HOUSING
(LONG )(GRAY)GEAR HOUSING
(LONG )(GRAY) -
01647-9148T82 GEAR HOUSING
(X-LONG )(BLACK)GEAR HOUSING
(X-LONG )(BLACK) -
01647-9148T82 GEAR HOUSING
(X-LONG )(GRAY)GEAR HOUSING
(X-LONG )(GRAY) -
1NLA No Longer Available, Gear Housing-Basic
(Casting #1647-7223 or 1647-6463)No Longer Available, Gear Housing-Basic
(Casting #1647-7223 or 1647-6463) -
11647-7321A11 GEAR HOUSING
(BLACK)(Casting #1647-6670C)GEAR HOUSING
(BLACK)(Casting #1647-6670C) -
11647-8688T9 GEAR HOUSING
(BLACK)(Casting #1647-8875C)GEAR HOUSING
(BLACK)(Casting #1647-8875C) -
11647-8688T10 GEAR HOUSING
(GRAY)GEAR HOUSING
(GRAY) -
222-85822A10 CONNECTOR ASSEMLBYCONNECTOR ASSEMLBY
-
366885 INSERT
(STBD)(Use where Applicable)INSERT
(STBD)(Use where Applicable) -
366884 INSERT
(PORT)(Use where Applicable)INSERT
(PORT)(Use where Applicable) -
410-76156 SCREW, (#10-32 X 1.88)
(Use where Applicable)SCREW, (#10-32 X 1.88)
(Use where Applicable) -
511-859124 NUT, (#10-32)
(Use where Applicable)NUT, (#10-32)
(Use where Applicable) -
617-43044 PIN, DowelPIN, Dowel
-
716-786382 STUD, (.438 x 3.12)
(LONG)STUD, (.438 x 3.12)
(LONG) -
716-57921 STUD, (.437-14 x 4.00)
(LONG)STUD, (.437-14 x 4.00)
(LONG) -
716-78639 STUD
(8-1/8" - X-LONG)STUD
(8-1/8" - X-LONG) -
716-74731 STUD
(9" - X-LONG)STUD
(9" - X-LONG) -
816-8M0133358 STUD, (.44 x 2.06)
(LONG)STUD, (.44 x 2.06)
(LONG) -
816-74730 STUD
(7-1/16" - X-LONG)STUD
(7-1/16" - X-LONG) -
916-8M0034463 STUD, (.312 x 3.38)STUD, (.312 x 3.38)
-
1016-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
1131-35934A1 ROLLER BEARINGROLLER BEARING
-
1223-98621 SCREW, (.375-16 X .75)SCREW, (.375-16 X .75)
-
1345-98682A1 DRIVESHAFT
(LONG)DRIVESHAFT
(LONG) -
1345-41509A2 DRIVESHAFT
(X-LONG)DRIVESHAFT
(X-LONG) -
1424-34576 SPRINGSPRING
-
1517-30545 PINPIN
-
1643-78081T1 PINION GEAR
(Stamped 43-78081)PINION GEAR
(Stamped 43-78081) -
1643-67885 PINION GEAR
(Stamped 43-67885)PINION GEAR
(Stamped 43-67885) -
1711-35921 NUT, (.625-18)NUT, (.625-18)
-
1815-57007A1 SHIMSHIM
-
1931-53079A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
2027-856704 GASKETGASKET
-
2125-33145 O-RING, (1.984 x .139)O-RING, (1.984 x .139)
-
2246-96146A6 WATER PUMP BASEWATER PUMP BASE
-
2326-89238 OIL SEALOIL SEAL
-
2426-16977 OIL SEALOIL SEAL
-
24A17-8M0084627 PIN, DowelPIN, Dowel
-
2527-8M0090319 GASKETGASKET
-
26324351 FACE PLATEFACE PLATE
-
2727-858524 GASKETGASKET
-
2846-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2948752T INSERTINSERT
-
3026-38970 SEALSEAL
-
3147-89984T4 IMPELLERIMPELLER
-
3228-8M0032834 KEYKEY
-
3310-30720 SCREW, (.250-20 x 2.25)SCREW, (.250-20 x 2.25)
-
3412-29245 WASHER, (.281 x .500 x .060)WASHER, (.281 x .500 x .060)
-
3511-35888 NUT, (.250-28)NUT, (.250-28)
-
3612-36001 WASHERWASHER
-
3711-82670911 NUT, (.312-24)NUT, (.312-24)
-
3825-30271 RINGRING
-
3923-29804T SLEEVESLEEVE
-
4076041 LOWER SHIFT SHAFTLOWER SHIFT SHAFT
-
40789022 SHAFT
(Hsg. Casting #1647-8675C ONLY)SHAFT
(Hsg. Casting #1647-8675C ONLY) -
4153-29641 E-RINGE-RING
-
4253-78907 RETAINING RINGRETAINING RING
-
4325-25439 O-RING, (.862 x .103)O-RING, (.862 x .103)
-
4423-77631A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
4526-8164641 OIL SEALOIL SEAL
-
4612-77674 WASHERWASHER
-
4710-79953Q04 SCREW, (.375-16 x .250)SCREW, (.375-16 x .250)
-
4822-8M0058389 SCREW, MagneticSCREW, Magnetic
-
4912-191833 WASHER, FiberWASHER, Fiber
-
-46-96148A8 WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
-
-26-55682A1 SEAL KITSEAL KIT
-
-27-11338A88 GASKET SET, Engine Overhaul
SN# 6618751 & UpGASKET SET, Engine Overhaul
SN# 6618751 & Up -
-27-79583A81 GASKET SET
SN# 5875204 THRU 6618750GASKET SET
SN# 5875204 THRU 6618750 -
-NLA No Longer Available, Gasket Set
(Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & BelowNo Longer Available, Gasket Set
(Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & Below
