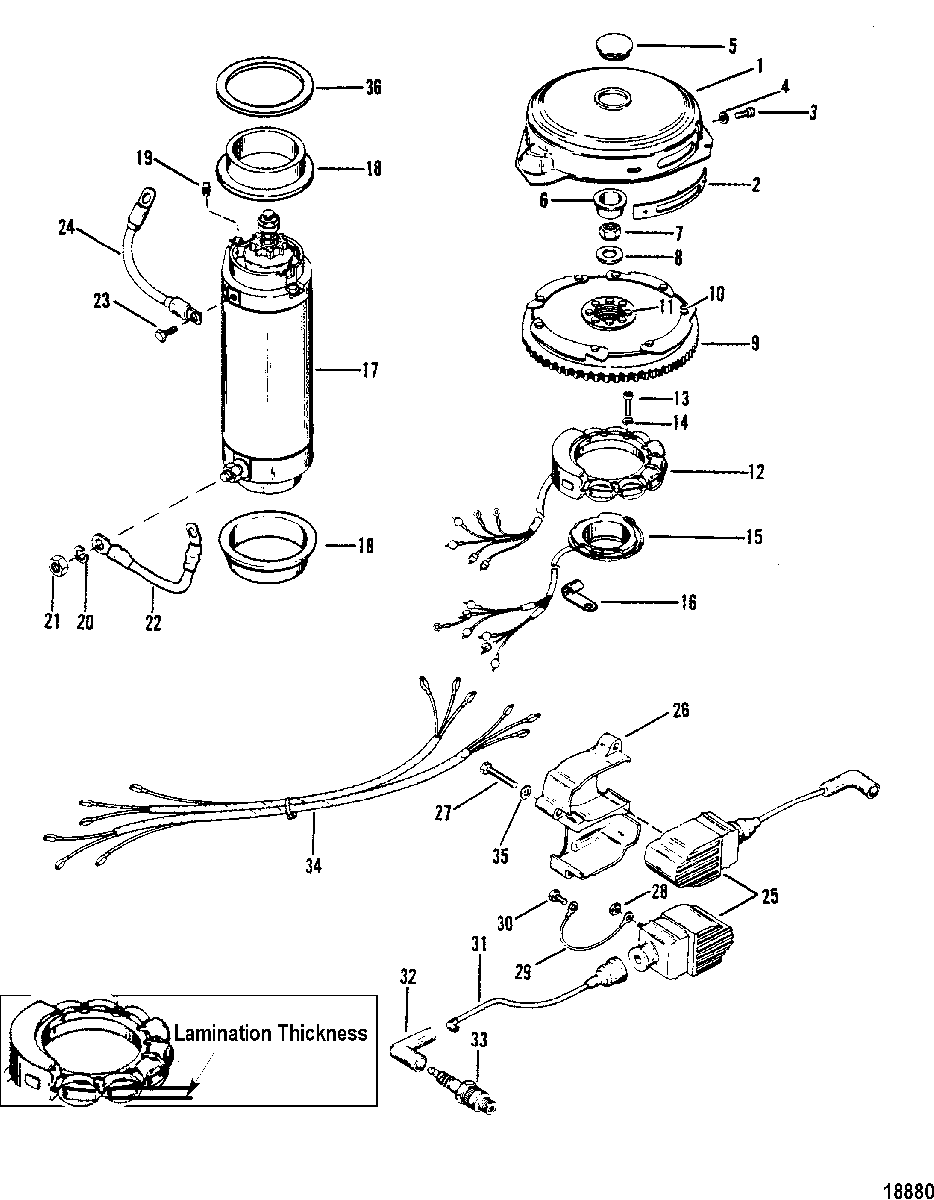

Flywheel, Starter Motor and Ignition Coils для Mercury - V-175 4301235 THRU 0C100860
-
№АртикулНазвание
-
179918A1 COVER KITCOVER KIT
-
279022 MARKERMARKER
-
310-37572 SCREW, (.190-32 x .380)SCREW, (.190-32 x .380)
-
412-72761 WASHERWASHER
-
519-89219001 PLUGPLUG
-
619-45907 PLUG, YellowPLUG, Yellow
-
711-52901 NUT, (.625-18)NUT, (.625-18)
-
812-33001 WASHERWASHER
-
9NLA No Longer Available, Flywheel
(Use With 50-64975 or 50-72467)No Longer Available, Flywheel
(Use With 50-64975 or 50-72467) -
9271-859238A9 FLYWHEEL
(Use With 50-77141 or 50-79472 )(Lamination Thickness is 1/2 Inch)FLYWHEEL
(Use With 50-77141 or 50-79472 )(Lamination Thickness is 1/2 Inch) -
9271-859238A9 FLYWHEEL
(Lamination Thickness is 5/8 Inch)FLYWHEEL
(Lamination Thickness is 5/8 Inch) -
1010-32417 SCREW, (.250-28 x .625)SCREW, (.250-28 x .625)
-
1110-68997 SCREW, (.3125-24 X .75)SCREW, (.3125-24 X .75)
-
12398-5454A7 STATOR ASSEMBLY
(Use W/O Voltage Regulator - 9 AMP)STATOR ASSEMBLY
(Use W/O Voltage Regulator - 9 AMP) -
12398-5454A32 STATOR
(Use W/Voltage Regulator - 15 AMP)(Use With Flywheel Lamination Thickness of 1/2 Inch)STATOR
(Use W/Voltage Regulator - 15 AMP)(Use With Flywheel Lamination Thickness of 1/2 Inch) -
12398-5454A35 STATOR
(Use W/Voltage Regulator - 15 AMP)(Use With Flywheel Lamination Thickness of 5/8 Inch)STATOR
(Use W/Voltage Regulator - 15 AMP)(Use With Flywheel Lamination Thickness of 5/8 Inch) -
1310-75840 SCREW, (#10-24 x .880)SCREW, (#10-24 x .880)
-
1310-19926100 SCREW, (#10-24 x 1.00)SCREW, (#10-24 x 1.00)
-
1413-26996 LOCKWASHER, (#10)LOCKWASHER, (#10)
-
1596455A9 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
1654-61001 J CLIPJ CLIP
-
1750-898265010 STARTER MOTOR
(AMER. BOSCH #10652-21-M030SM)STARTER MOTOR
(AMER. BOSCH #10652-21-M030SM) -
1750-893893 STARTER MOTOR
(AMER. BOSCH #17183-28-M030SM)STARTER MOTOR
(AMER. BOSCH #17183-28-M030SM) -
1750-893893 STARTER MOTOR
(AMER. BOSCH #14916-240M030SM)STARTER MOTOR
(AMER. BOSCH #14916-240M030SM) -
1750-898265010 STARTER MOTOR ASSEMBLY
(PRESTOLITE #MJL-4003B)STARTER MOTOR ASSEMBLY
(PRESTOLITE #MJL-4003B) -
1823-8M0034918 COLLARCOLLAR
-
198M0043376 STOPSTOP
-
2013-26992 LOCKWASHER, (.250)LOCKWASHER, (.250)
-
2111-20890 NUT, (.250-20)NUT, (.250-20)
-
2284-93389A5 WIRE, (Yellow)(6.50 Inches)WIRE, (Yellow)(6.50 Inches)
-
2284-93388A14 WIRE, (Black)WIRE, (Black)
-
2310-69035 SCREW AND LOCKWASHER, (.250-20 x .625) SSSCREW AND LOCKWASHER, (.250-20 x .625) SS
-
2484-93388A1 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
25339-5288T2 IGNITION COIL ASSEMBLY
(ORANGE)IGNITION COIL ASSEMBLY
(ORANGE) -
25339-832757A4 IGNITION COIL ASSEMBLY
(NAVY BLUE)IGNITION COIL ASSEMBLY
(NAVY BLUE) -
2667614 COVERCOVER
-
2710-88447 SCREW, (.190-32 x 1.62)SCREW, (.190-32 x 1.62)
-
2811-45076 NUT, (#10-32)NUT, (#10-32)
-
2984-88807A6 WIRE, (3.50 Inches) BlackWIRE, (3.50 Inches) Black
-
2984-60466A1 CABLE ASSEMBLY, Black (2.50 Inches)CABLE ASSEMBLY, Black (2.50 Inches)
-
3010-68513 SCREW, (#10-32 x .375)SCREW, (#10-32 x .375)
-
3184-813715A1 LEAD WIRELEAD WIRE
-
3285-63709A1 BOOT KITBOOT KIT
-
3333-97180Q SPARK PLUG
(NGK-BUHW)SPARK PLUG
(NGK-BUHW) -
3333-13686Q SPARK PLUG
(NGK-BUSH)SPARK PLUG
(NGK-BUSH) -
3484-69738A7 HARNESS ASSEMBLY, COIL TO SWITCH BOX
(#2, 4 & 6)HARNESS ASSEMBLY, COIL TO SWITCH BOX
(#2, 4 & 6) -
3484-69739A2 HARNESS, COIL TO SWITCH BOX
(#1, 3 & 5)HARNESS, COIL TO SWITCH BOX
(#1, 3 & 5) -
3512-30164 WASHER, (.192 x .375 x .0312)WASHER, (.192 x .375 x .0312)
-
3623-56774 SPACERSPACER
