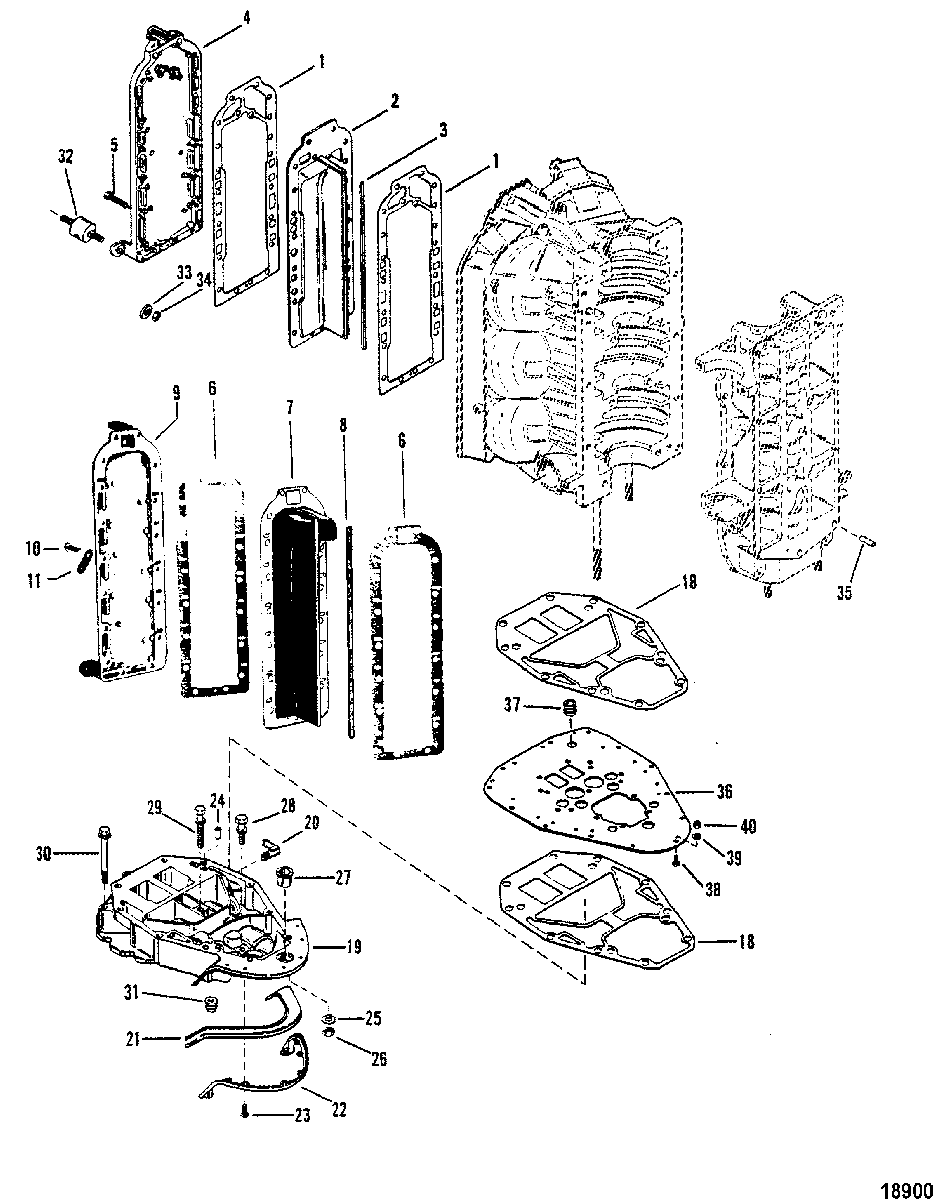

Divider Plate and Exhaust Plate для Mercury - V-175 4301235 THRU 0C100860
-
№АртикулНазвание
-
127-904841 GASKET
(Ref. # 2 Casting # 99169)GASKET
(Ref. # 2 Casting # 99169) -
299169A1 PLATE
(Ref. # 2 Casting # 99169)PLATE
(Ref. # 2 Casting # 99169) -
326-814754 SEAL
(Ref. # 2 Casting # 99169)SEAL
(Ref. # 2 Casting # 99169) -
495067 COVER
(Ref. # 2 Casting # 99169)COVER
(Ref. # 2 Casting # 99169) -
510-74824 SCREW, (.312-18 x 1.250) (1-1/4")
(Ref. # 2 Casting # 99169)SCREW, (.312-18 x 1.250) (1-1/4")
(Ref. # 2 Casting # 99169) -
627-76636 GASKET
(Ref. # 7 Casting # 76637 or 78305)GASKET
(Ref. # 7 Casting # 76637 or 78305) -
627-904841 GASKET
(Ref. # 7 Casting #87321)GASKET
(Ref. # 7 Casting #87321) -
776637A1 DIVDER PLATE
(Ref. # 7 Casting # 76637)DIVDER PLATE
(Ref. # 7 Casting # 76637) -
778305A1 DIVIDER PLATE
(Ref. # 7 Casting # 78305)DIVIDER PLATE
(Ref. # 7 Casting # 78305) -
787321T PLATE
(Ref. # 7 Casting # 87321)PLATE
(Ref. # 7 Casting # 87321) -
826-814754 SEALSEAL
-
967340 COVER
(Ref. # 7 Casting # 76637 or 78305)COVER
(Ref. # 7 Casting # 76637 or 78305) -
995067 COVER
(Ref. # 7 Casting # 87321)COVER
(Ref. # 7 Casting # 87321) -
1010-35386 SCREW, (.312-18 x 1.00)
(Ref. # 7 Casting # 76637 or 78305)SCREW, (.312-18 x 1.00)
(Ref. # 7 Casting # 76637 or 78305) -
1010-74824 SCREW, (.312-18 x 1.250)
(Ref. # 7 Casting # 87321)SCREW, (.312-18 x 1.250)
(Ref. # 7 Casting # 87321) -
1112-73595 WASHER
(Ref. # 7 Casting # 76637 or 78305)WASHER
(Ref. # 7 Casting # 76637 or 78305) -
1154-47483 J CLIP
(Ref. # 7 Casting # 87321)J CLIP
(Ref. # 7 Casting # 87321) -
1827-75909 GASKET
SN# 6618750 & BelowGASKET
SN# 6618750 & Below -
1827-991764 GASKET
(Black and Gray) SN# 6618751 & UpGASKET
(Black and Gray) SN# 6618751 & Up -
1827-997761 GASKET
(Oyster)GASKET
(Oyster) -
1975836A1 EXHAUST PLATE
SN# 6618750 & BelowEXHAUST PLATE
SN# 6618750 & Below -
1941944A5 PLATE ASSEMBLY
(Black and Gray) SN# 6618751 & UpPLATE ASSEMBLY
(Black and Gray) SN# 6618751 & Up -
1941944A5 EXHAUST PLATE
(Oyster)EXHAUST PLATE
(Oyster) -
2022-996642 ELBOWELBOW
-
21707482 SEALSEAL
-
22680101 BRACKETBRACKET
-
2310-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2417-43044 PIN, DowelPIN, Dowel
-
2512-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
2611-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
2723-27132 BUSHINGBUSHING
-
2810-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
2910-68783 SCREW, (.312-18 x 2.50)SCREW, (.312-18 x 2.50)
-
3010-898833 SCREW, (.375-16 x 3.50)SCREW, (.375-16 x 3.50)
-
3125-12602002 GROMMETGROMMET
-
3290435 MOUNTMOUNT
-
3312-21249 WASHERWASHER
-
3411-8267089 NUT, (.250-28)NUT, (.250-28)
-
3521-42657A3 CHECK VALVE
SN# 6618751 & UpCHECK VALVE
SN# 6618751 & Up -
36181032 PLATE
(Oyster)PLATE
(Oyster) -
3725-93221002 GROMMET
(Oyster)GROMMET
(Oyster) -
3810-28636 SCREW, (.250-20 x .750)
(Oyster)SCREW, (.250-20 x .750)
(Oyster) -
3912-29245 WASHER, (.281 x .500 x .060)
(Oyster)WASHER, (.281 x .500 x .060)
(Oyster) -
4011-8267098 NUT, (.250-20)
(Oyster)NUT, (.250-20)
(Oyster) -
-27-11338A88 GASKET SET, Engine Overhaul
SN# 6618751 & UpGASKET SET, Engine Overhaul
SN# 6618751 & Up -
-27-79583A81 GASKET SET
SN# 5875204 THRU 6618750GASKET SET
SN# 5875204 THRU 6618750 -
-NLA No Longer Available, Gasket Set
(Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & BelowNo Longer Available, Gasket Set
(Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & Below
