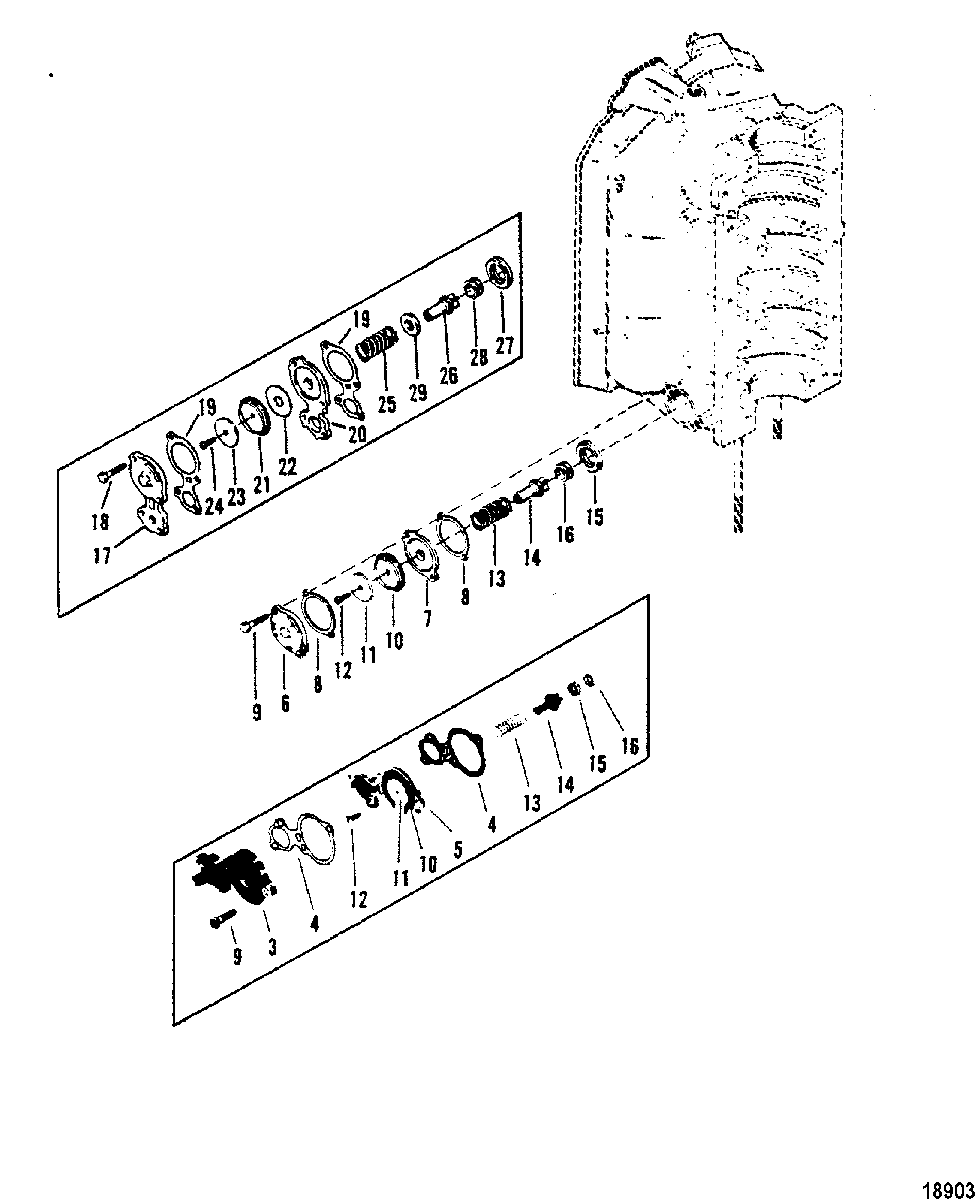

Relief Valve System для Mercury - V-175 4301235 THRU 0C100860
-
№АртикулНазвание
-
38M0039767 COVER
(DESIGN I)COVER
(DESIGN I) -
427-78690002 GASKET
(DESIGN I)GASKET
(DESIGN I) -
565664 RELIEF VALVE PLATE
(DESIGN I)RELIEF VALVE PLATE
(DESIGN I) -
665663A2 COVER
(DESIGN II)COVER
(DESIGN II) -
765664A1 PLATE ASSEMBLY
(DESIGN II)PLATE ASSEMBLY
(DESIGN II) -
827-88907003 GASKET, RELIEF VALVE PLATE
(DESIGN II)GASKET, RELIEF VALVE PLATE
(DESIGN II) -
910-38837 SCREW, (.312-18 x 1.12), COVER
(DESIGN I & II)SCREW, (.312-18 x 1.12), COVER
(DESIGN I & II) -
10648771 DIAPHRAGM
(DESIGN I & II)DIAPHRAGM
(DESIGN I & II) -
1112-76451 WASHER
(DESIGN I & II)WASHER
(DESIGN I & II) -
1210-69570 SCREW, (#10-16 x .750)
(DESIGN I & II)SCREW, (#10-16 x .750)
(DESIGN I & II) -
1324-64878 SPRING
(DESIGN I & II)SPRING
(DESIGN I & II) -
1486596 POPPET VALVE
(DESIGN I & II)POPPET VALVE
(DESIGN I & II) -
1565848 CARRIER
(DESIGN I & II)CARRIER
(DESIGN I & II) -
1625-64872 GROMMET
(DESIGN I & II)GROMMET
(DESIGN I & II) -
1714462A1 COVER
(DESIGN III)COVER
(DESIGN III) -
1810-74824 SCREW, (.312-18 x 1.250)
(DESIGN III)SCREW, (.312-18 x 1.250)
(DESIGN III) -
1927-78690002 GASKET
(DESIGN III)GASKET
(DESIGN III) -
2016497A1 PLATE
(DESIGN III)PLATE
(DESIGN III) -
21144791 DIAPHRAGM
(DESIGN III)DIAPHRAGM
(DESIGN III) -
2216496 WATER DEFLECTOR
(DESIGN III)WATER DEFLECTOR
(DESIGN III) -
2312-76451 WASHER
(DESIGN III)WASHER
(DESIGN III) -
2410-69570 SCREW, (#10-16 x .750)
(DESIGN III)SCREW, (#10-16 x .750)
(DESIGN III) -
2524-64878 SPRING
(DESIGN III)SPRING
(DESIGN III) -
2614480 POPPET
(DESIGN III)POPPET
(DESIGN III) -
2765848 CARRIER
(DESIGN III)CARRIER
(DESIGN III) -
2825-64872 GROMMET
(DESIGN III)GROMMET
(DESIGN III) -
2912-85303 WASHER
(DESIGN III)WASHER
(DESIGN III) -
-27-11338A88 GASKET SET, Engine Overhaul
SN# 6618751 & UpGASKET SET, Engine Overhaul
SN# 6618751 & Up -
-27-79583A81 GASKET SET
SN# 5875204 THRU 6618750GASKET SET
SN# 5875204 THRU 6618750 -
-NLA No Longer Available, Gasket Set
(Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & BelowNo Longer Available, Gasket Set
(Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & Below
