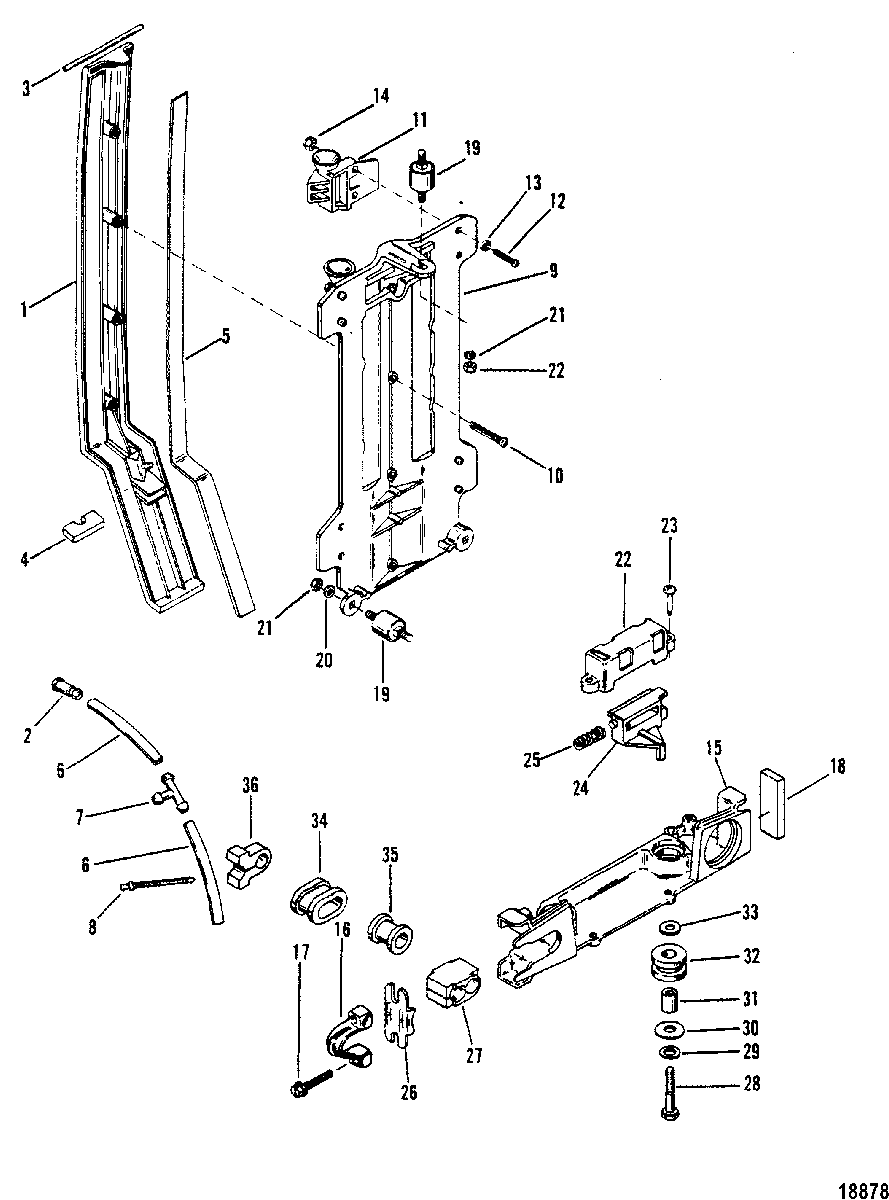

Cowl Mounting Brackets для Mercury - V-175 4301235 THRU 0C100860
-
№АртикулНазвание
-
176258A2 BRACKET
(BLACK)BRACKET
(BLACK) -
176258A3 BRACKET
(GRAY)BRACKET
(GRAY) -
176258A3 BRACKET
(OYSTER)BRACKET
(OYSTER) -
222-76256 NOZZLE
(BLACK & GRAY)NOZZLE
(BLACK & GRAY) -
222-762561 NOZZLE
(OYSTER)NOZZLE
(OYSTER) -
252889 NOZZLE
(SCREW ATTACHING /10-35519)NOZZLE
(SCREW ATTACHING /10-35519) -
367984 SEALSEAL
-
467228 SEALSEAL
-
567999 SEALSEAL
-
632-8M0108355 FUEL LINE, (57.00 Inches Bulk), TELL TALEFUEL LINE, (57.00 Inches Bulk), TELL TALE
-
722-90824001 TEE
SN# USA-5875204/AUS-8072023 & UpTEE
SN# USA-5875204/AUS-8072023 & Up -
861990 CABLE TIE, (14.00 Inches)CABLE TIE, (14.00 Inches)
-
986386A1 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
1010-66687 SCREW, (#10-32 x 1.50)SCREW, (#10-32 x 1.50)
-
1185651 HOUSING
(PORT)HOUSING
(PORT) -
1185650 HOUSING
(STARBOARD)HOUSING
(STARBOARD) -
1210-64278 SCREW (1")SCREW (1")
-
1312-20583 WASHERWASHER
-
1411-8267089 NUT, (.250-28)NUT, (.250-28)
-
1588623A1 BRACKET
SN# USA-5875203/AUS-8072022 & BelowBRACKET
SN# USA-5875203/AUS-8072022 & Below -
1592009T BRACKET
SN# 5875204 THRU 6618750BRACKET
SN# 5875204 THRU 6618750 -
1599424 BRACKET
(Black) SN# 6618751 & UpBRACKET
(Black) SN# 6618751 & Up -
1599424T6 BRACKET
(Gray) SN# 6618751 & UpBRACKET
(Gray) SN# 6618751 & Up -
1599424T6 BRACKET
(Oyster)BRACKET
(Oyster) -
1688621 RETAINER
SN# 6618750 & BelowRETAINER
SN# 6618750 & Below -
1699447 RETAINER
SN# 6618751 & UpRETAINER
SN# 6618751 & Up -
1710-89900 SCREW, (10-24 X 1.00)SCREW, (10-24 X 1.00)
-
1867260 SEALSEAL
-
1990435 MOUNTMOUNT
-
2012-21249 WASHERWASHER
-
2111-8267089 NUT, (.250-28)NUT, (.250-28)
-
2267241 HOUSINGHOUSING
-
2310-92051 SCREW, (10-16 x .75)SCREW, (10-16 x .75)
-
2476264 LATCH
SN# 6618750 & BelowLATCH
SN# 6618750 & Below -
2487608 COWL LATCH
SN# 6618751 & UpCOWL LATCH
SN# 6618751 & Up -
2524-60295 SPRINGSPRING
-
2688622 PLATEPLATE
-
2799391 RETAINER
SN# 6618751 & UpRETAINER
SN# 6618751 & Up -
2810-69067 SCREW, (.25-20 X 1.375)
SN# 6618751 & UpSCREW, (.25-20 X 1.375)
SN# 6618751 & Up -
2912-69057 WASHER (SMALL)
SN# 6618751 & UpWASHER (SMALL)
SN# 6618751 & Up -
3012-35280 WASHER, (.255 x .620 x .030) (LARGE)
SN# 6618751 & UpWASHER, (.255 x .620 x .030) (LARGE)
SN# 6618751 & Up -
3123-88180 BUSHING
SN# 6618751 & UpBUSHING
SN# 6618751 & Up -
3225-88033 GROMMET
SN# 6618751 & UpGROMMET
SN# 6618751 & Up -
3312-26907 WASHER
SN# 6618751 & UpWASHER
SN# 6618751 & Up -
3425-67272 GROMMETGROMMET
-
3525-87743 GROMMETGROMMET
-
3667739 SEALSEAL
