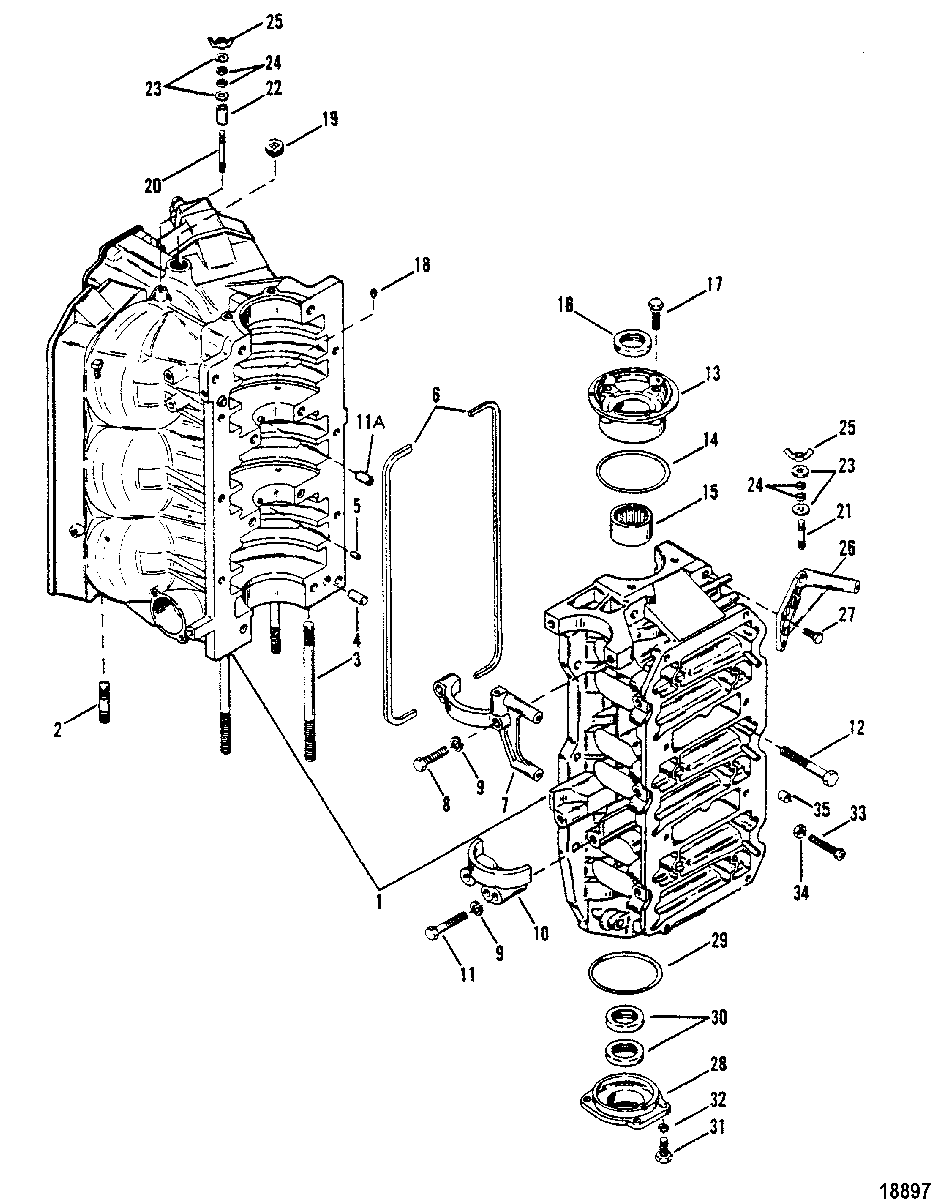

Cylinder Block and End Caps для Mercury - V-175 4301235 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    858-8134A3 CYLINDER BLOCK
    SN# 6618750 & Below
    CYLINDER BLOCK
    SN# 6618750 & Below
  • 1
    858-8712A39 CYLINDER BLOCK
    SN# 6618751 & Up
    CYLINDER BLOCK
    SN# 6618751 & Up
  • 2
    16-76175 STUD (1-718")
    STUD (1-718")
  • 3
    16-670654 STUD
    (5-1/2")
    STUD
    (5-1/2")
  • 3
    16-8M0034454 STUD
    (6-3/4")
    STUD
    (6-3/4")
  • 4
    17-43044 PIN, Dowel
    PIN, Dowel
  • 5
    17-8M0036405 PIN (BEARING RACE)
    PIN (BEARING RACE)
  • 6
    27-11338 GASKET
    GASKET
  • 7
    8M0088723 COVER, STARTER MOTOR (UPPER)
    COVER, STARTER MOTOR (UPPER)
  • 8
    10-73657 SCREW, (.312-18 x 1.50)
    SCREW, (.312-18 x 1.50)
  • 9
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 10
    76867 COVER, STARTER MOTOR (LOWER)
    COVER, STARTER MOTOR (LOWER)
  • 11
    10-815549 SCREW, .312-18 x 2.00
    SCREW, .312-18 x 2.00
  • 11A
    23-99448 BUSHING
    BUSHING
  • 12
    10-66717 SCREW, (.375-16 x 3.250), CRANKCASE TO CYLINDER BLOCK
    SCREW, (.375-16 x 3.250), CRANKCASE TO CYLINDER BLOCK
  • 12
    10-74824 SCREW, (.312-18 x 1.250), CRANKCASE TO CYLINDER BLOCK
    SCREW, (.312-18 x 1.250), CRANKCASE TO CYLINDER BLOCK
  • 13
    1159-8454T1 END CAP ASSEMBLY (UPPER)
    SN# 6618750 & Below
    END CAP ASSEMBLY (UPPER)
    SN# 6618750 & Below
  • 13
    1159-8454T2 END CAP ASSEMBLY
    SN# 6618751 & Up
    END CAP ASSEMBLY
    SN# 6618751 & Up
  • 14
    25-54029 O-RING
    (2.80 Outside Diameter) SN# 6618750 & Below
    O-RING
    (2.80 Outside Diameter) SN# 6618750 & Below
  • 14
    25-67206 O-RING
    (2.9 Outside Diameter) SN# 6618750 & Below
    O-RING
    (2.9 Outside Diameter) SN# 6618750 & Below
  • 14
    25-54029 O-RING
    SN# 6618751 & Up
    O-RING
    SN# 6618751 & Up
  • 15
    31-74248T ROLLER BEARING
    SN# 6618750 & Below
    ROLLER BEARING
    SN# 6618750 & Below
  • 15
    31-93496T ROLLER BEARING
    SN# 6618751 & Up
    ROLLER BEARING
    SN# 6618751 & Up
  • 16
    26-41953 SEAL
    SEAL
  • 17
    10-30225 SCREW WITH LOCKWASHER, (.312-18 x 1.00)
    SCREW WITH LOCKWASHER, (.312-18 x 1.00)
  • 18
    10-24220 SCREW, (.190-24 x .19)
    SCREW, (.190-24 x .19)
  • 19
    22-38407 PLUG, (.500-14) (WATER JACKET)
    PLUG, (.500-14) (WATER JACKET)
  • 20
    16-15094 STUD (1-7/8")
    STUD (1-7/8")
  • 21
    16-8M0034435 STUD, (#10-32 x 1.00)
    STUD, (#10-32 x 1.00)
  • 22
    23-67269 SPACER
    SPACER
  • 23
    12-49221 WASHER
    WASHER
  • 24
    12-72761 WASHER
    WASHER
  • 25
    11-816874 NUT
    NUT
  • 26
    422482 BRACKET, FLYWHEEL COVER
    BRACKET, FLYWHEEL COVER
  • 27
    10-49668 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 28
    1156-7809T1 END CAP ASSEMBLY (LOWER)
    END CAP ASSEMBLY (LOWER)
  • 29
    25-62700 O-RING, (3.250 Inside Diameter)
    O-RING, (3.250 Inside Diameter)
  • 29
    25-67207 O-RING
    (3-1/2" I.D.)
    O-RING
    (3-1/2" I.D.)
  • 30
    26-41953 SEAL
    SEAL
  • 31
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 32
    13-26992 LOCKWASHER, (.250)
    LOCKWASHER, (.250)
  • 33
    10-64022 SCREW, (.250-20 x 2.125)
    SCREW, (.250-20 x 2.125)
  • 34
    11-64015 NUT, ( #8-32)
    NUT, ( #8-32)
  • 35
    26852 CAP
    CAP
  • -
    66517 RESTRICTOR
    RESTRICTOR
  • -
    41278A81 POWERHEAD ASSEMBLY, COMPLETE
    SN# 6618750 & Below
    POWERHEAD ASSEMBLY, COMPLETE
    SN# 6618750 & Below
  • -
    12305T88 POWERHEAD ASSEMBLY, COMPLETE
    SN# 6618751 & Up
    POWERHEAD ASSEMBLY, COMPLETE
    SN# 6618751 & Up
  • -
    27-11338A88 GASKET SET, Engine Overhaul
    SN# 6618751 & Up
    GASKET SET, Engine Overhaul
    SN# 6618751 & Up
  • -
    27-79583A81 GASKET SET
    SN# 5875204 THRU 6618750
    GASKET SET
    SN# 5875204 THRU 6618750
  • -
    NLA No Longer Available, Gasket Set
    (Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & Below
    No Longer Available, Gasket Set
    (Service Bulletin 81-8) SN# USA-5875203/AUS-8072022 & Below
