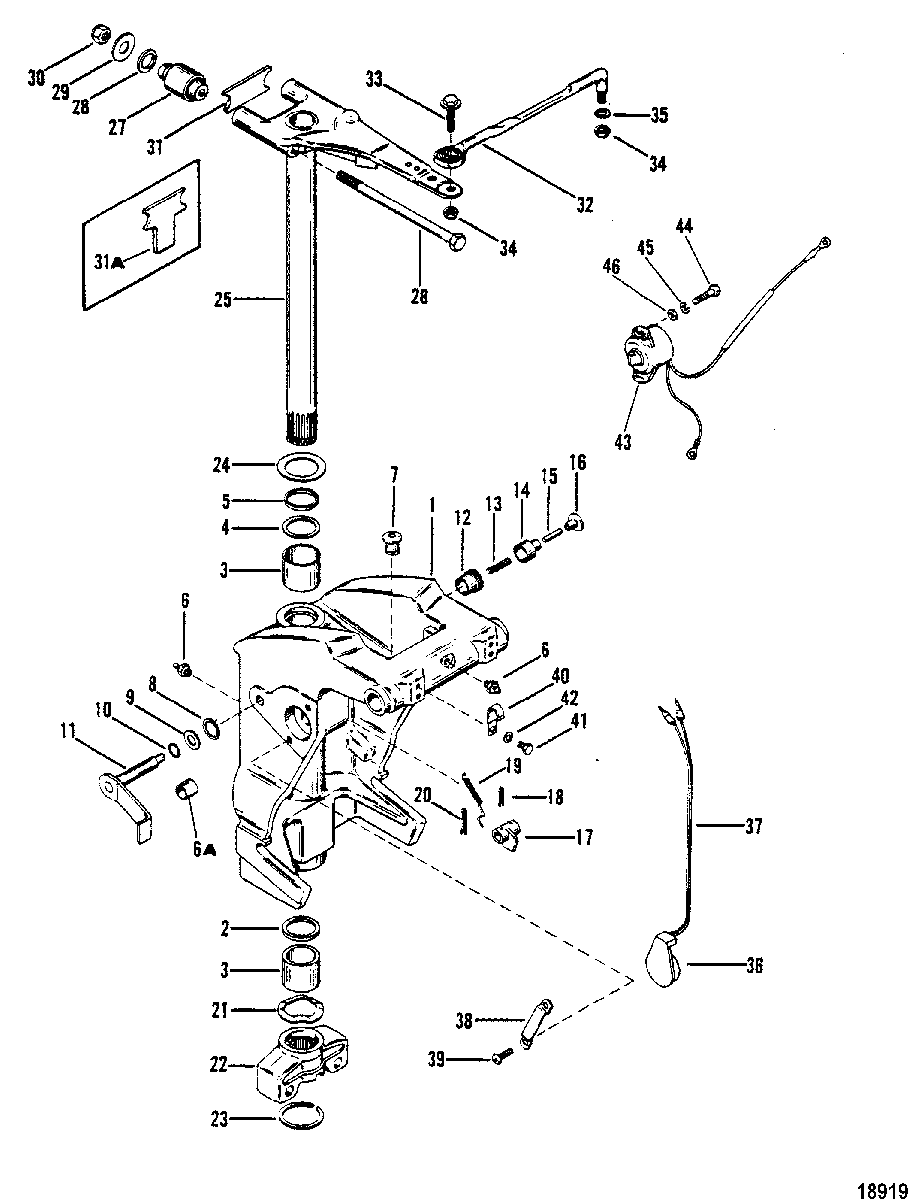

Swivel Bracket and Steering Arm для Mercury - V-175 4301235 THRU 0C100860
-
№АртикулНазвание
-
11491-9225A3 SWIVEL BRACKET ASSEMBLY
(Black) SN# 5488752 THRU 6618750SWIVEL BRACKET ASSEMBLY
(Black) SN# 5488752 THRU 6618750 -
11491-9225A4 SWIVEL BRACKET ASSEMBLY
(Gray) SN# 5555930 THRU 6618750SWIVEL BRACKET ASSEMBLY
(Gray) SN# 5555930 THRU 6618750 -
11499-8M0102865 SWIVEL BERACKET ASSEMBLY
(Black) SN# 6618751 & UpSWIVEL BERACKET ASSEMBLY
(Black) SN# 6618751 & Up -
11499-8M0102865 SWIVEL BRACKET ASSEMBLY
(Gray) SN# 6618751 & UpSWIVEL BRACKET ASSEMBLY
(Gray) SN# 6618751 & Up -
226-87735 SEAL, OilSEAL, Oil
-
323-818764 BUSHINGBUSHING
-
425-33466 O-RINGO-RING
-
523-67668 SPACERSPACER
-
622-74036 FITTING, GreaseFITTING, Grease
-
6A23-821207 BUSHING
SN# 6618751 & UpBUSHING
SN# 6618751 & Up -
725-88341 GROMMET
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750GROMMET
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
826-85023 SEAL, Oil
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750SEAL, Oil
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
912-87161 WASHER
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750WASHER
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
1025-48171 O-RING, (.364. x .070)
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750O-RING, (.364. x .070)
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
1185030A2 TILT LOCK LEVER
(Port) SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750TILT LOCK LEVER
(Port) SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
1185028A2 TILT LOCK LEVER
(Starboard) SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750TILT LOCK LEVER
(Starboard) SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
1223-86600 BUSHING
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750BUSHING
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
1324-85367 SPRING
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750SPRING
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
1441052 PLUNGER
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750PLUNGER
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
1516-88876 STUD
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750STUD
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
1686603 KNOB
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750KNOB
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
17864751 COUPLING
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750COUPLING
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
1818-87200 PIN
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750PIN
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
1924-88049 SPRING
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750SPRING
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
2018-93861 COTTER PIN
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750COTTER PIN
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
2113-78854 WAVE WASHERWAVE WASHER
-
22878182T01 BOTTOM YOKE
(BLACK)BOTTOM YOKE
(BLACK) -
22878182T01 BOTTOM YOKE
(GRAY)BOTTOM YOKE
(GRAY) -
22878182T01 BOTTOM YOKE
(OYSTER)BOTTOM YOKE
(OYSTER) -
2353-67684 RETAINING RINGRETAINING RING
-
2412-67670 WASHERWASHER
-
2517-840792A1 SWIVEL PINP/STEERING ARM
(Black) SN# 5488752 THRU 6618750SWIVEL PINP/STEERING ARM
(Black) SN# 5488752 THRU 6618750 -
2517-840792A1 SWIVEL PIN/STEERING ARM
(Gray) SN# 5555930 THRU 6618750SWIVEL PIN/STEERING ARM
(Gray) SN# 5555930 THRU 6618750 -
2517-8M0132731 SWIVEL PIN AND STEERING ARM
(Black) SN# 6618751 & UpSWIVEL PIN AND STEERING ARM
(Black) SN# 6618751 & Up -
2517-8M0132731 SWIVEL PIN AND STEERING ARM
(Gray) SN# 6618751 & UpSWIVEL PIN AND STEERING ARM
(Gray) SN# 6618751 & Up -
2517-8M0132731 SWIVEL PIN AND STEERING ARM
(Oyster) SN# 6618751 & UpSWIVEL PIN AND STEERING ARM
(Oyster) SN# 6618751 & Up -
2610-8M0000491 SCREW, (.437-20 x 7.50)SCREW, (.437-20 x 7.50)
-
2777326 MOUNT (UPPER)MOUNT (UPPER)
-
2812-66921 WASHERWASHER
-
2912-78688 WASHERWASHER
-
3011-34933 NUT, (.437-20)NUT, (.437-20)
-
3167754 BUMPER
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750BUMPER
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
31A88882 BUMPER
SN# 6618751 & UpBUMPER
SN# 6618751 & Up -
3292876A12 STEERING LINK ASSEMBLYSTEERING LINK ASSEMBLY
-
3310-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
3411-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
3512-34931 WASHER, (.406 x .734 x .063) SSWASHER, (.406 x .734 x .063) SS
-
3686485A5 TRIM SENDER ASSEMBLY
(Female Terminals)TRIM SENDER ASSEMBLY
(Female Terminals) -
3686485A6 TILT SWITCH ASSEMBLY
(Male Terminals) SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750TILT SWITCH ASSEMBLY
(Male Terminals) SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
3784-65017A15 HARNESS
(Female Terminals)HARNESS
(Female Terminals) -
3784-65017A14 HARNESS
(Male Terminals) SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750HARNESS
(Male Terminals) SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
3888342 STRAP
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750STRAP
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
3910-87926 SCREW, (#10-32 x .500)
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750SCREW, (#10-32 x .500)
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
4054-54457 J CLIP
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750J CLIP
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
4110-98256 SCREW, (.250-28 X .50)
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750SCREW, (.250-28 X .50)
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
4212-29245 WASHER, (.281 x .500 x .060)
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750WASHER, (.281 x .500 x .060)
SN# Mercury-5488752/Mariner-5555930 THRU Mercury-6618750/Mariner-6618750 -
438M0098273 TRIM SENDER ASSEMBLY
SN# 6618751 & UpTRIM SENDER ASSEMBLY
SN# 6618751 & Up -
4410-852368 SCREW, (#10-24 x .750)
SN# 6618751 & UpSCREW, (#10-24 x .750)
SN# 6618751 & Up -
4513-26996 LOCKWASHER, (#10)
SN# 6618751 & UpLOCKWASHER, (#10)
SN# 6618751 & Up -
4612-89302 WASHER, (.203 x .406 x .040)
SN# 6618751 & UpWASHER, (.203 x .406 x .040)
SN# 6618751 & Up -
-27-11338A88 GASKET SET, Engine Overhaul
SN# 6618751 & UpGASKET SET, Engine Overhaul
SN# 6618751 & Up -
-27-79583A81 GASKET SET
SN# 5875204 THRU 6618750GASKET SET
SN# 5875204 THRU 6618750
