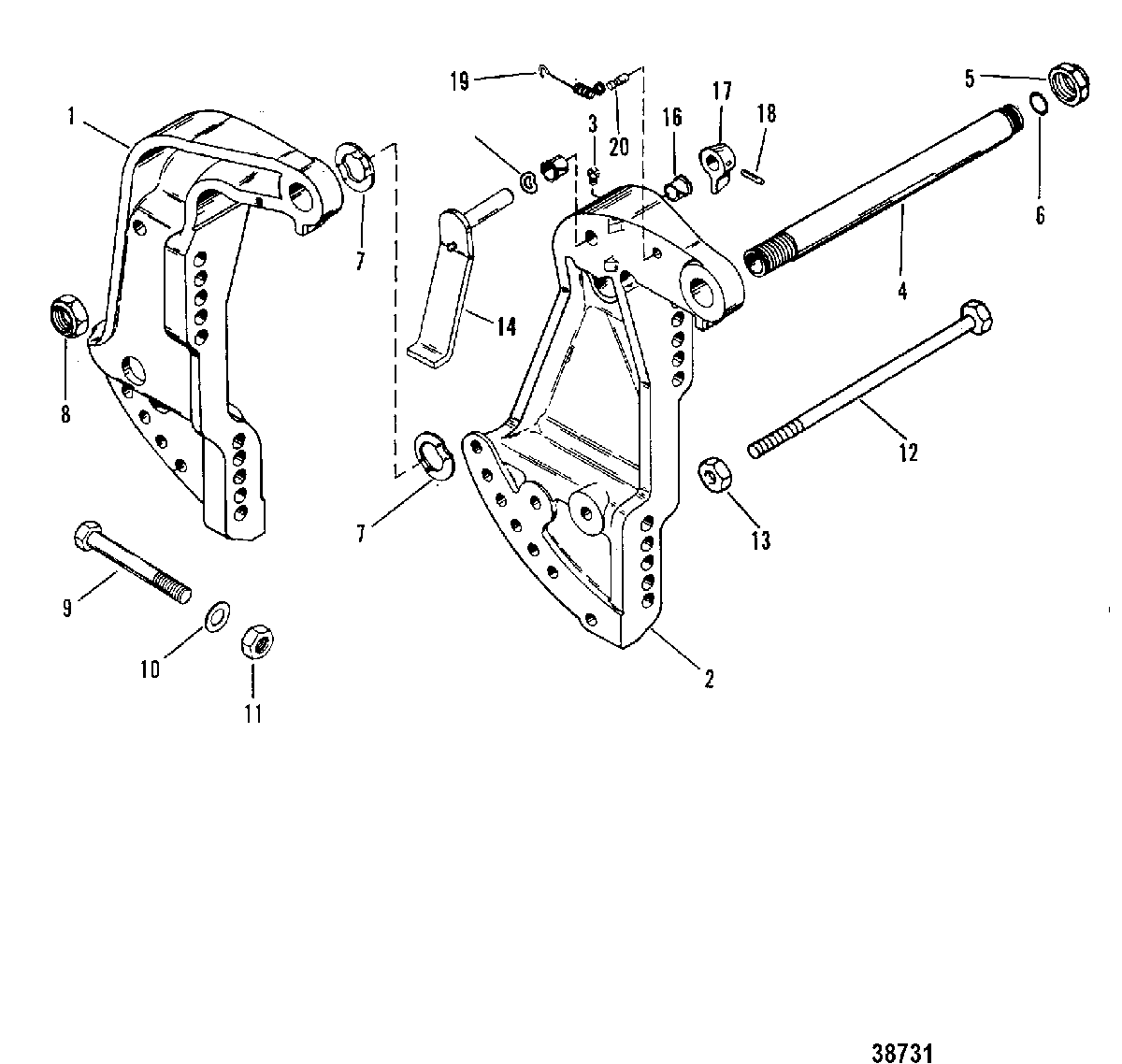

TRANSOM BRACKET(POWER TRIM)(0C159199 AND BELOW) для Mercury - 35 9466647 & Up
-
№АртикулНазвание
-
13401-8718F7 BRACKET ASSEMBLY, Transom (STARBOARD)BRACKET ASSEMBLY, Transom (STARBOARD)
-
23400-8716A8 BRACKET ASSEMBLY, Transom (PORT)BRACKET ASSEMBLY, Transom (PORT)
-
322-98727 FITTING, GreaseFITTING, Grease
-
4826125A1 TILT TUBETILT TUBE
-
511-82671327 NUT, TILT TUBE (1"-14)NUT, TILT TUBE (1"-14)
-
625-45711 O-RING, (.612 x .103), TILT TUBEO-RING, (.612 x .103), TILT TUBE
-
713-88750 WASHER, TILT TUBEWASHER, TILT TUBE
-
811-858869 NUT, (.875-14), TILT TUBE (7/8-14)NUT, (.875-14), TILT TUBE (7/8-14)
-
910-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
1012-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1111-35000 NUT, (.500-20) Stainless SteelNUT, (.500-20) Stainless Steel
-
1210-96930A1 BOLT ASSEMBLY, TILT LOCKBOLT ASSEMBLY, TILT LOCK
-
1311-23161 NUT, (.375-24), BOLTNUT, (.375-24), BOLT
-
148M0115104 LEVER ASSEMBLYLEVER ASSEMBLY
-
1513-99611 WAVE WASHERWAVE WASHER
-
1623-65830 NYLINER, TILT LEVERNYLINER, TILT LEVER
-
1799633 KNOB, TILT LOCK LEVERKNOB, TILT LOCK LEVER
-
1817-99615 PIN, GroovePIN, Groove
-
1924-99622 SPRINGSPRING
-
2017-99604 PIN, GroovePIN, Groove
