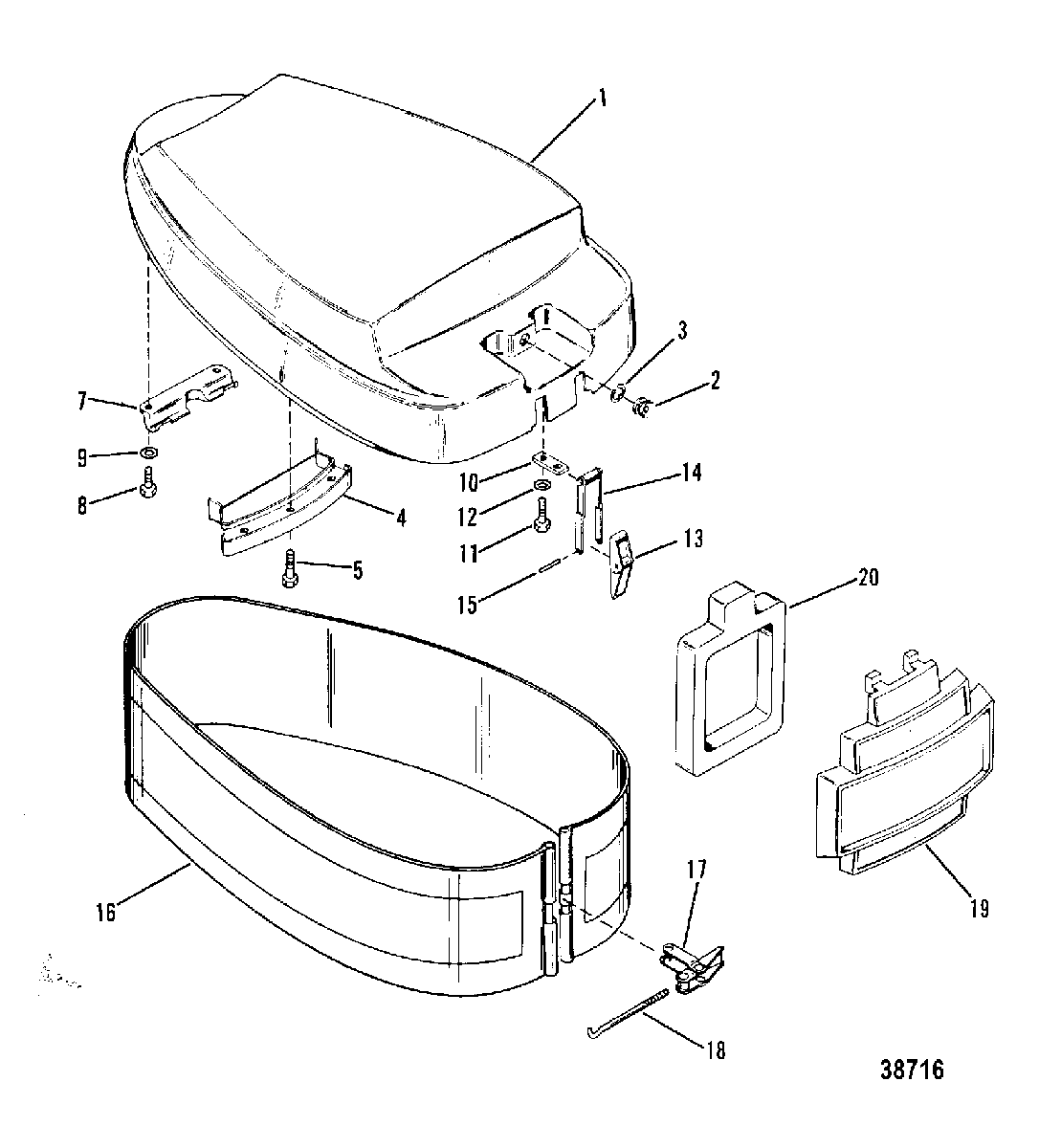

TOP COWL AND COWLING для Mercury - 35 9466647 & Up
-
№АртикулНазвание
-
12138-6341 TOP COWL ASSEMBLY (Without Decals)
(ELECTRIC)TOP COWL ASSEMBLY (Without Decals)
(ELECTRIC) -
12138-6340A2 TOP COWL ASSEMBLY (Without Decals)
(MANUAL)TOP COWL ASSEMBLY (Without Decals)
(MANUAL) -
258657 ROPE GUIDE, STARTER
(MANUAL)ROPE GUIDE, STARTER
(MANUAL) -
353-72168 RING, RETAINING - ROPE GUIDE
(MANUAL)RING, RETAINING - ROPE GUIDE
(MANUAL) -
462236 SHILD, REAR - TOP COWLSHILD, REAR - TOP COWL
-
510-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
755455 HOOK, TOP COWL LATCH - REARHOOK, TOP COWL LATCH - REAR
-
810-22956 SCREW, (.250-28 x .880)SCREW, (.250-28 x .880)
-
913-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1075973 PLATE, HINGEPLATE, HINGE
-
1110-32228 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
1213-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1394918F1 LEVER, COWL LATCHLEVER, COWL LATCH
-
1452739 HINGE, COWL LATCH LEVERHINGE, COWL LATCH LEVER
-
1517-58998 PIN, HINGE TO LEVERPIN, HINGE TO LEVER
-
162137-3878A6 WRAP AROUND COWL ASSEMBLY (Without Decals)WRAP AROUND COWL ASSEMBLY (Without Decals)
-
1746785A1 LATCH ASSEMBLY, CowlLATCH ASSEMBLY, Cowl
-
1830413 HOOK, COWL LATCH FASTENINGHOOK, COWL LATCH FASTENING
-
192161-6347A20 COVER ASSEMBLY, Cowl - Front (Without Decals)COVER ASSEMBLY, Cowl - Front (Without Decals)
-
2076450 BLANKET, COWL FRONT COVERBLANKET, COWL FRONT COVER
