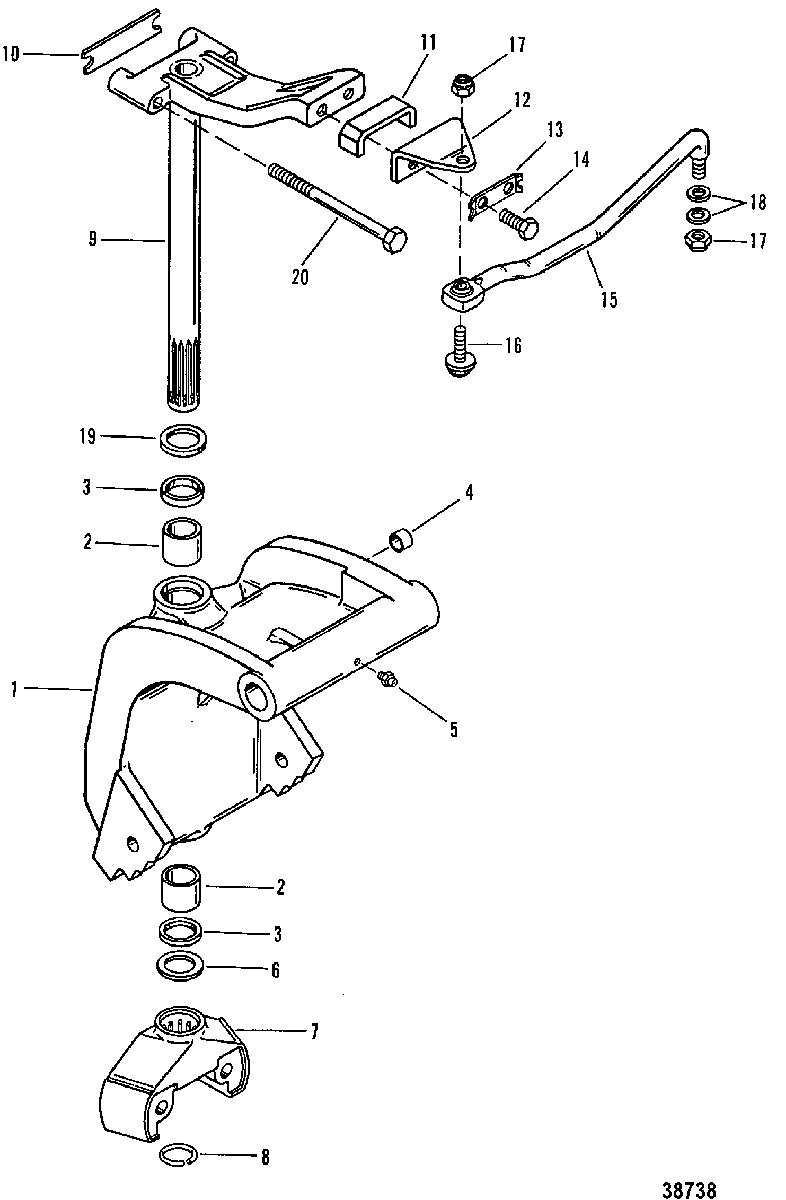

SWIVEL BRACKET(LONG SHAFT)(0C159200 AND UP) для Mercury - 35 9466647 & Up

  • №
    Артикул
    Название
  • 1
    3506-9749A2 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 2
    23-821124 BEARING
    BEARING
  • 3
    26-32911 SEAL, Oil
    SEAL, Oil
  • 4
    23-19606 BEARING
    BEARING
  • 5
    22-74036 FITTING, Grease
    FITTING, Grease
  • 6
    12-25176 WASHER
    WASHER
  • 7
    77416T1 YOKE, Bottom
    YOKE, Bottom
  • 8
    53-77415 RETAINING RING
    RETAINING RING
  • 9
    19459T3 ARM ASSEMBLY, Steering
    ARM ASSEMBLY, Steering
  • 10
    30711 BUMPER
    BUMPER
  • 11
    62297 BUMPER
    BUMPER
  • 12
    19616A1 BRACKET
    (NON-HANDLE)
    BRACKET
    (NON-HANDLE)
  • 13
    76533 STRAP
    (NON-HANDLE)
    STRAP
    (NON-HANDLE)
  • 14
    10-34352 SCREW, (.375-24 x .875)
    (NON-HANDLE)
    SCREW, (.375-24 x .875)
    (NON-HANDLE)
  • 15
    19608A14 LINK ROD
    (STARBOARD) (NON-HANDLE)
    LINK ROD
    (STARBOARD) (NON-HANDLE)
  • 15
    19609A6 LINK ROD
    (PORT)(NON-HANDLE)
    LINK ROD
    (PORT)(NON-HANDLE)
  • 16
    10-849838 SCREW, (.375-24 x 1.25)
    (NON-HANDLE)
    SCREW, (.375-24 x 1.25)
    (NON-HANDLE)
  • 17
    11-8M0042636 NUT, (.375-24)
    (NON-HANDLE)
    NUT, (.375-24)
    (NON-HANDLE)
  • 18
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    (NON-HANDLE)
    WASHER, (.406 x .734 x .063) Stainless Steel
    (NON-HANDLE)
  • 19
    12-52865 WASHER
    WASHER
  • 20
    10-66897 BOLT, (.437-20 x 5.250)
    BOLT, (.437-20 x 5.250)
