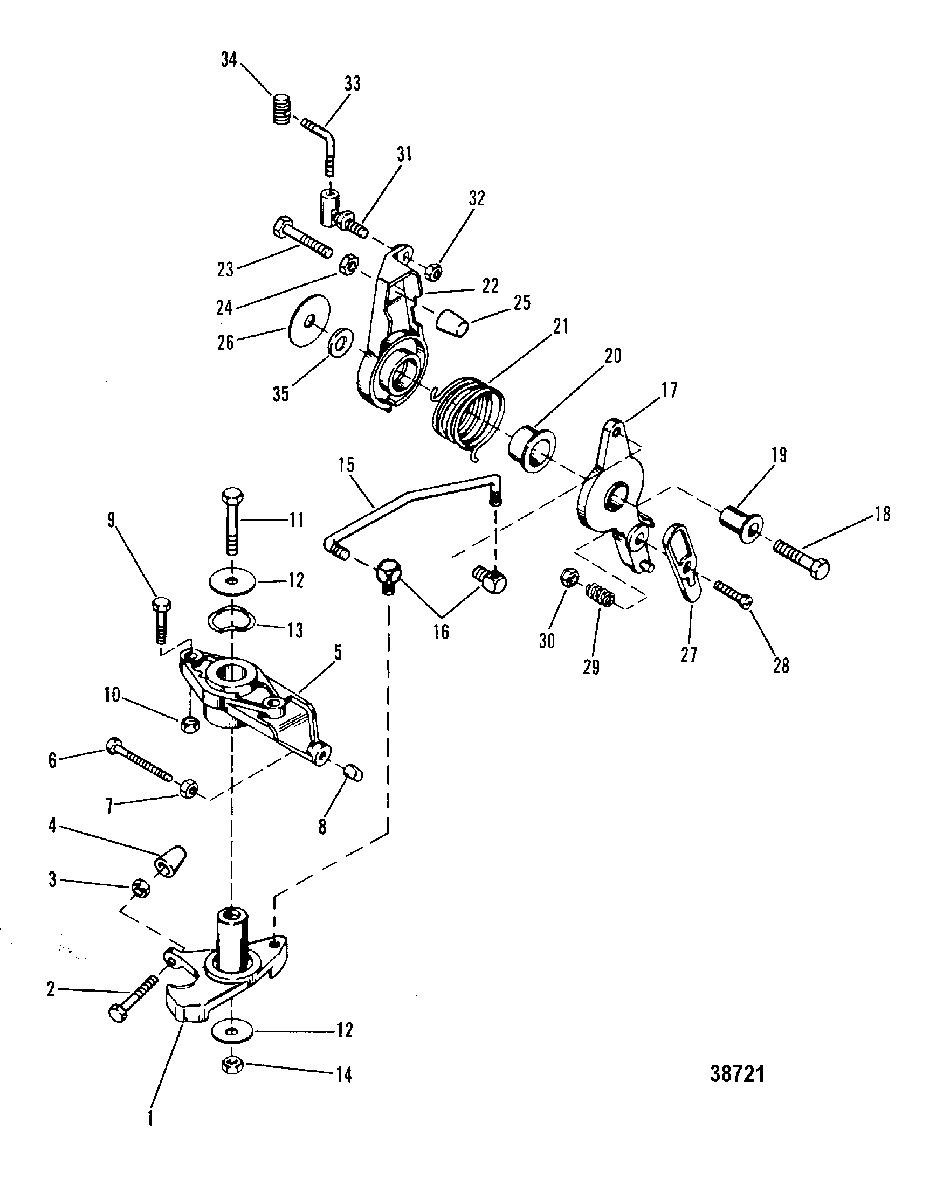

THROTTLE AND SPARK ADVANCE LINKAGE для Mercury - 35 9466647 & Up

  • №
    Артикул
    Название
  • 1
    44405 CAM, Throttle, ACTUATOR
    CAM, Throttle, ACTUATOR
  • 2
    10-63102 SCREW, (.250-20 x 1.250), ADJUSITNG-THROTTLE CAM
    SCREW, (.250-20 x 1.250), ADJUSITNG-THROTTLE CAM
  • 3
    11-64015 NUT, (.250-20), JAM-ADJUSTOING SCREW
    NUT, (.250-20), JAM-ADJUSTOING SCREW
  • 4
    26852 CAP, Nylon, NYLON-ADJUSTING SCREW
    CAP, Nylon, NYLON-ADJUSTING SCREW
  • 5
    39522T BRACKET, THROTTLE CONTROL SHAFT
    BRACKET, THROTTLE CONTROL SHAFT
  • 6
    10-64021 SCREW, ADJUSTING (1-7/8")
    SCREW, ADJUSTING (1-7/8")
  • 7
    11-64015 NUT, (.250-20), JAM-ADJUSTING SCREW
    NUT, (.250-20), JAM-ADJUSTING SCREW
  • 8
    26852 CAP, Nylon, ADJUSTING SCREW
    CAP, Nylon, ADJUSTING SCREW
  • 9
    10-20639 SCREW, (.312-24 x 1.12)
    SCREW, (.312-24 x 1.12)
  • 10
    11-29250 NUT, (.312-24), THROTTLE CONTROL BRACKET SCREW
    NUT, (.312-24), THROTTLE CONTROL BRACKET SCREW
  • 11
    10-34438 SCREW, (.312-24 x 2.375)
    SCREW, (.312-24 x 2.375)
  • 12
    12-25893 WASHER
    WASHER
  • 13
    13-62172 WAVE WASHER
    WAVE WASHER
  • 14
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 15
    95044 LINK ROD
    LINK ROD
  • 16
    95045 SWIVEL, LINK ROD
    SWIVEL, LINK ROD
  • 17
    95049 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 18
    10-818165 SCREW, (.375-16 x 1.75)
    SCREW, (.375-16 x 1.75)
  • 19
    23-55164 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 20
    23-55171 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 21
    24-55162 SPRING, RETURN-SPARK ADVANCE LEVER
    SPRING, RETURN-SPARK ADVANCE LEVER
  • 22
    95051 LEVER, SPARK ADVANCE
    LEVER, SPARK ADVANCE
  • 23
    10-32627 SCREW, (.190-32 x 1.50), ADJUSTING-ADVANCE LEVER
    SCREW, (.190-32 x 1.50), ADJUSTING-ADVANCE LEVER
  • 24
    11-68219 NUT, (#10-32) Stainless Steel, JAM-ADJUSTING SCREW
    NUT, (#10-32) Stainless Steel, JAM-ADJUSTING SCREW
  • 25
    48039 CAP, NYLON-ADJUSTING SCREW
    CAP, NYLON-ADJUSTING SCREW
  • 26
    12-46765 WASHER, THORTTLE CONTROL LEVER SCREW
    WASHER, THORTTLE CONTROL LEVER SCREW
  • 27
    39483 LATCH
    LATCH
  • 28
    10-69026 SCREW, (.250-28 x .880)
    SCREW, (.250-28 x .880)
  • 29
    24-20099 SPRING, COMPRESSION-LATCH SCREW
    SPRING, COMPRESSION-LATCH SCREW
  • 30
    11-826709109 NUT, (.250-28), LATCH-SCREW
    NUT, (.250-28), LATCH-SCREW
  • 31
    62459T BALL JOINT ASSEMBLY, SPARK ADVANCE LEVER
    BALL JOINT ASSEMBLY, SPARK ADVANCE LEVER
  • 32
    11-46438 NUT, (#10-32), BALL JOINT TO SPARK ADVANCE LEVER
    NUT, (#10-32), BALL JOINT TO SPARK ADVANCE LEVER
  • 33
    61940 LINK ROD
    LINK ROD
  • 34
    74897T PIVOT, THREADED - TRIGGER PLATE TO LINK ROD
    PIVOT, THREADED - TRIGGER PLATE TO LINK ROD
  • 35
    91963 WASHER, (.390 x .600 x .032)
    WASHER, (.390 x .600 x .032)
